Service guide
6

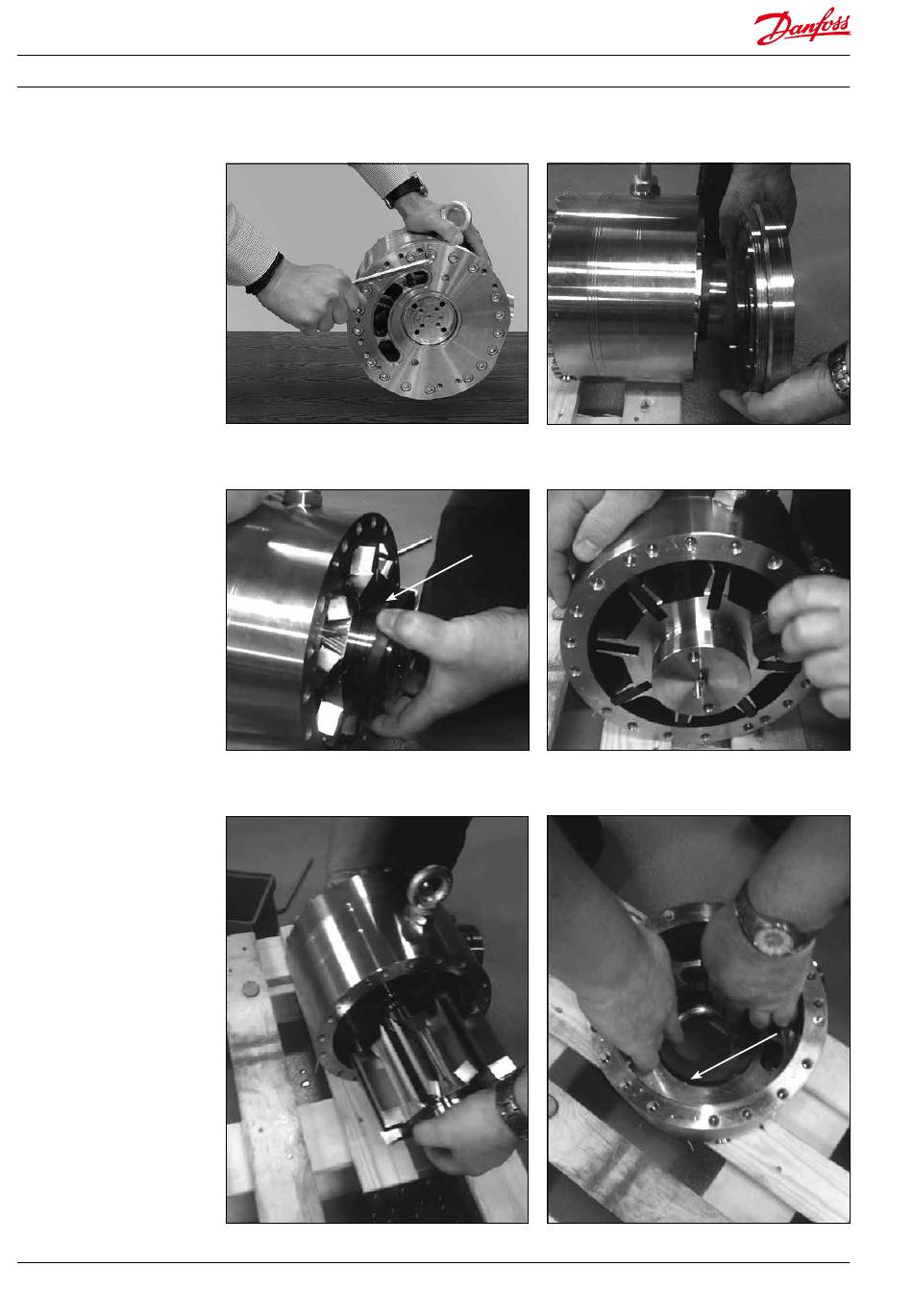

Disassembling and assembling iSave 40
6.
Loosen all the bolts in the adapter flange.
8.
Remove the sealing plate.
10.
Carefully guide the rotor out of the stator.
180R9242 | 521B1213 | DKCFN.PI.003.R3.02 | 04.2016
7.
Carefully disassemble adapter flange and
port plate from the stator ring.
9.
Remove the 8 vanes.
11.
Remove the sealing plate and pin.
