Service guide
16

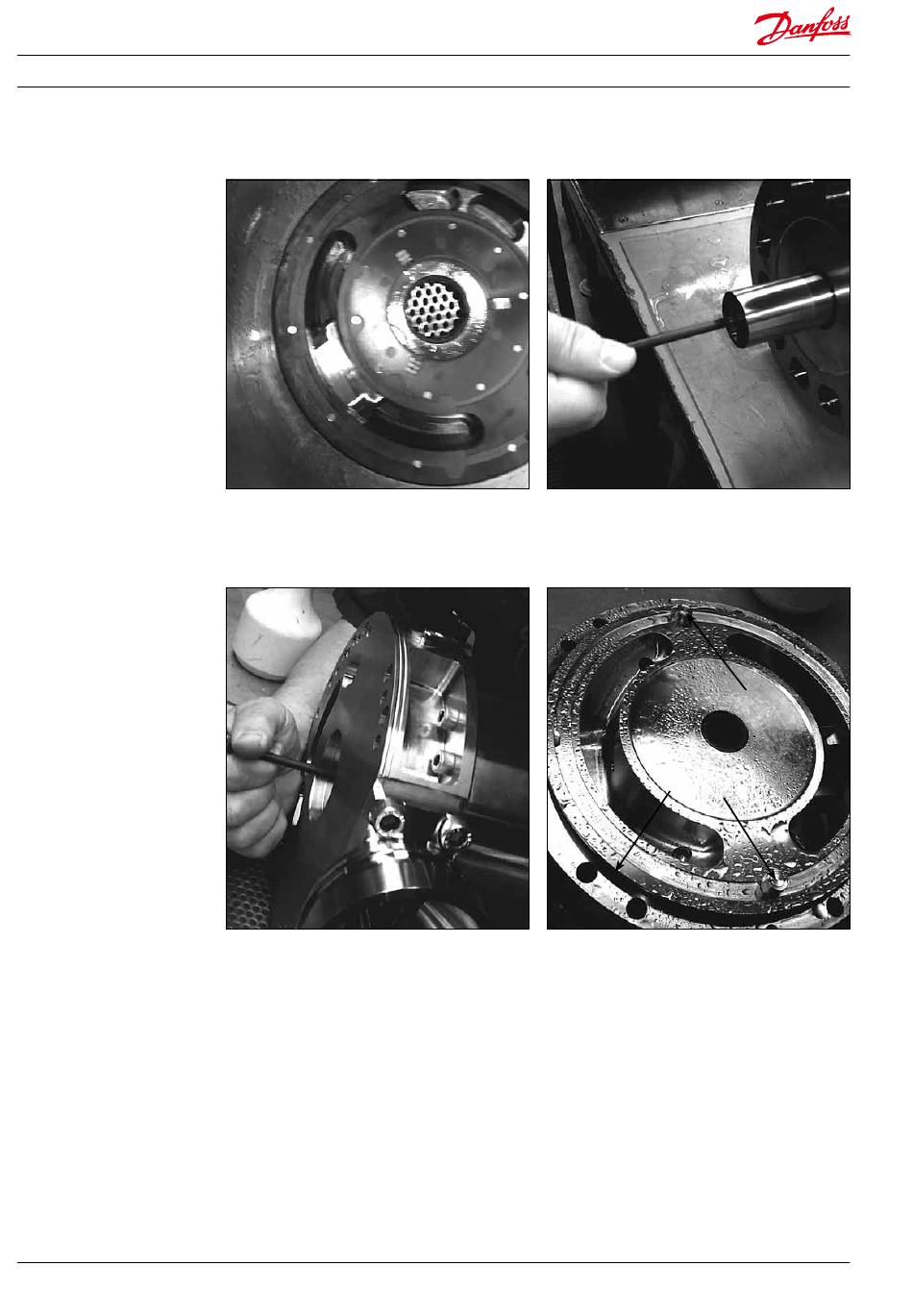

Disassembling and assembling iSave 40
5.
Position the port plate on the flange using
the two guide pins as guide. Only one port
plate fits.
7.
Carefully guide the cylinder barrel into the
flange bearing.
180R9242 | 521B1213 | DKCFN.PI.003.R3.02 | 04.2016
6.
Mount the provided M6 threaded rod into
the shaft of the cylinder barrel.
8.
Assemble the O-ring on the HP/LP flange
and position the two guide pins into the
flange.
