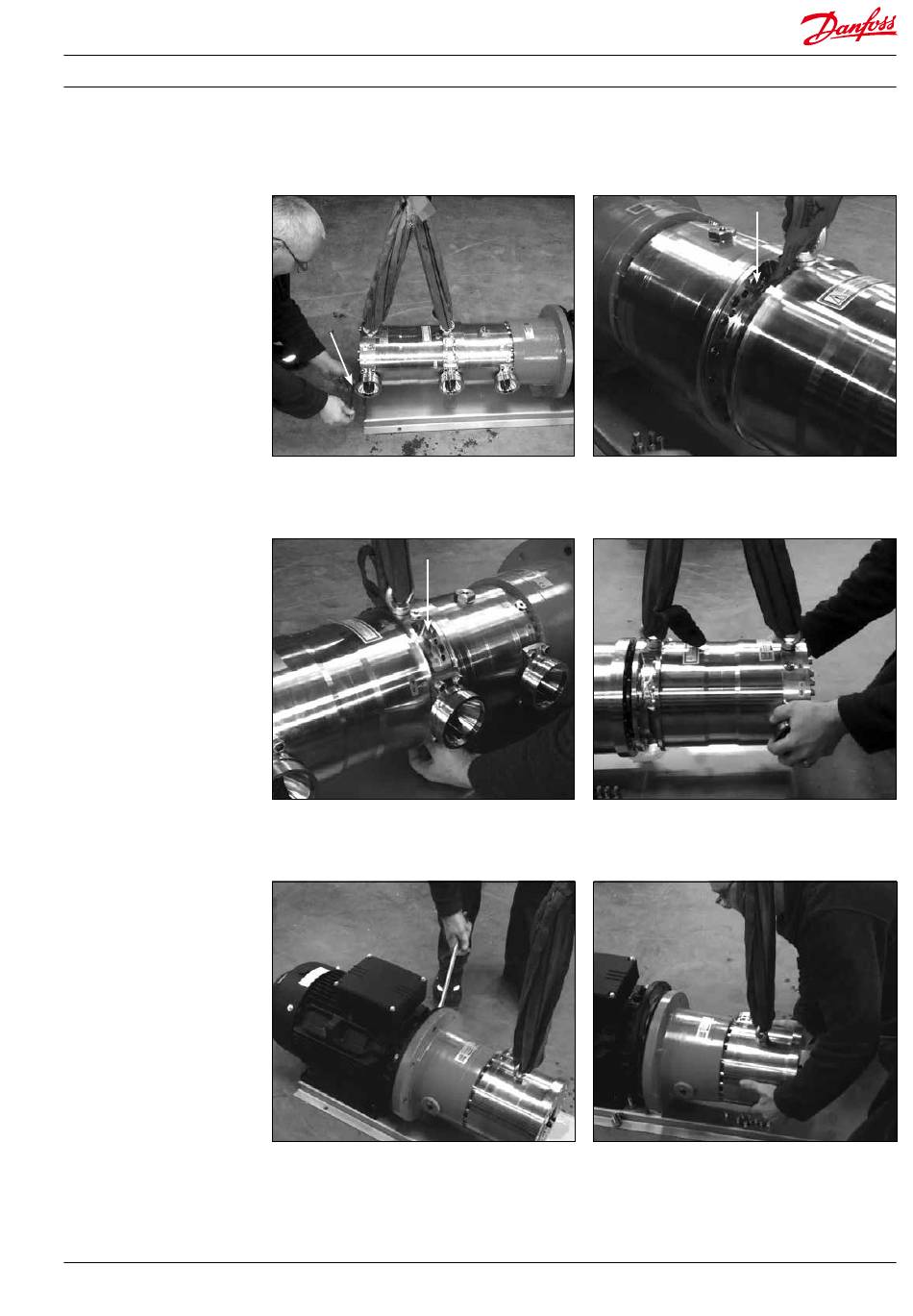

Instruction
2.
Disconnect the iSave
from electric motor
Disassembling and assembling iSave 40
1.
Apply a light lifting force on the pressure
exchanger and disconnect the support
bracket between the pressure exchanger
and base plate.
3.
Unscrew the 2 upper bolts.
5.
To disconnect the bell housing, unscrew
the 4 bolts on the electric motor.
180R9242 / 521B1213 / DKCFN.PI.003.R2.02 / 09.2013
2.
Unscrew 10 bolts in the adapter flange
between booster pump and pressure
exchanger. Leave the 2 upper bolts tighten.
4.
Carefully pull and lift the pressure
exchanger from the booster pump.
6.
Carefully pull and lift the booster pump
from the electric motor.
3
