8) Click the Submit button. Once this is done, it is no longer possible to communication with the
EX1401 mainframe. This is normal and is addressed in the following steps.

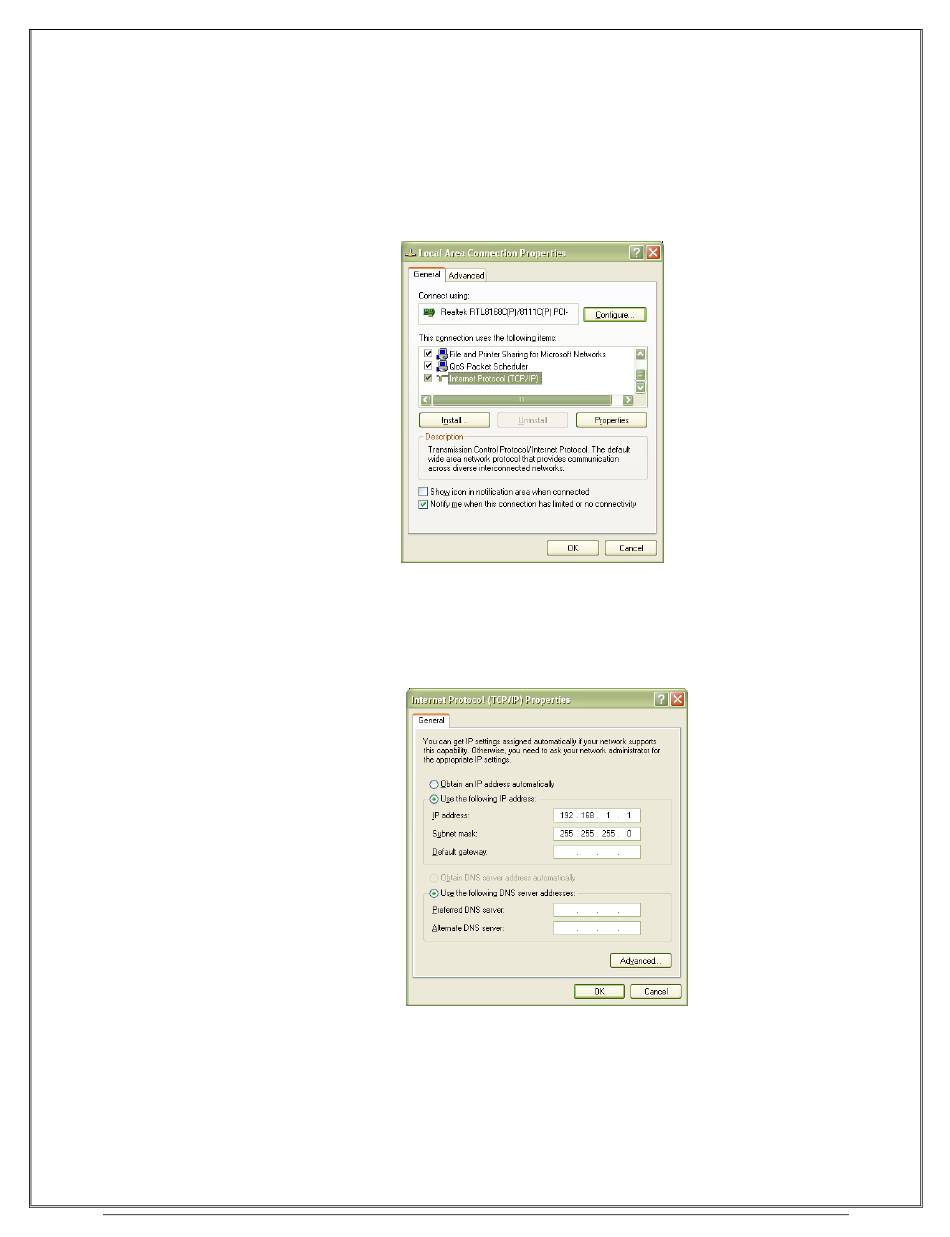

9) Set a static IP address for the NIC card by doing the following:
a) Navigate to Start → Settings → Network Connections.
b) Right click on the NIC card that the EX1401 mainframe is connected to and select
Properties.
c) Select Internet Protocol (TCP/IP) and click Properties.
d) Click the Use the following IP address radio button.
e) Enter the desired IP address.
f) If not automatically completed after the IP address is entered, set the Subnet mask field
to suitable address range
F
g) Click OK to exit the network configuration properties.
34
F 2-7: TCI/IP S
IGURE
2-8: C NIC S
IGURE OMPLETED
ELECTION
IP C
TATIC ONFIGURATION
EX1401 Basic Operation
