Blink Lan Indicator - VTI Instruments EX1401 User Manual

•
Manufacturer: The module manufacturer.
•
Model: The model number of the module.
•
SerialNumber: The module's serial number.
•
FirmwareRevision: Indicates the current revision of the module's firmware.
•
ManufacturerDescription: A brief description of the module.
•
HomepageURL: The address of the manufacturer home page.
•
UserDescription: The user-configurable description field.
•
IdentificationURL: The canonical URL of this document.
•
Network Interface Information: The following fields will be repeated once for each
network interface present in the module:
•
IVISoftwareModuleName: Indicates the name and description of an IVI-compliant
instrument driver that can be used to control the instrument.
•
Domain: The LXI LAN Event Domain number, 0-255.
•
LXIVersion: Indicates which version of the LXI specification the module conforms to.
•
Function: Indicates an LXI Extended Function, and its version, that is supported by the
module.
B LAN I
LINK NDICATOR

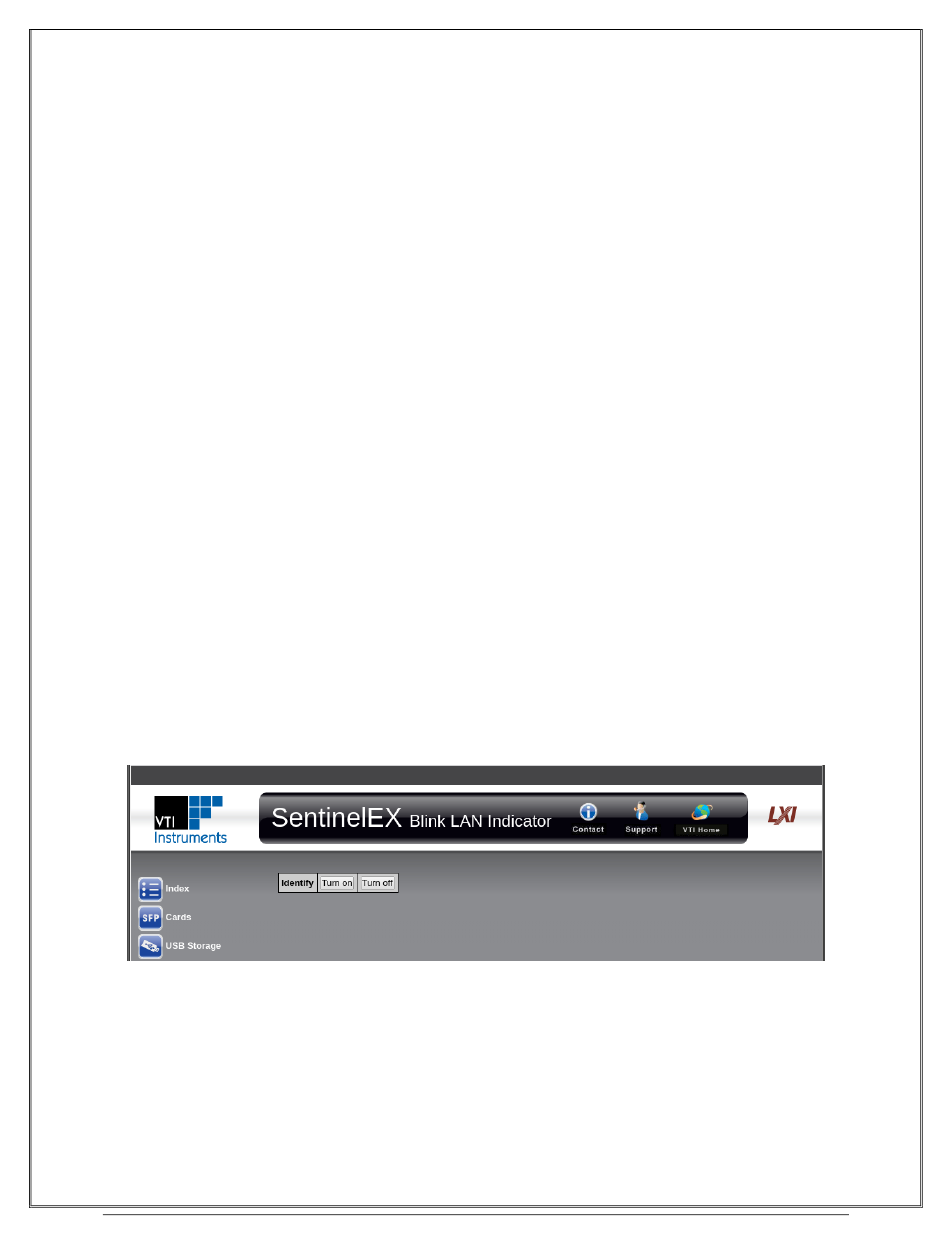

The Blink LAN Indicator page allows identification of the device being accessed by causing its
LAN LED to blink. This is helpful when there are multiple instruments present in your system and
you need to identify a specific device by its IP address.
•
Turn On: Cause the EX1401's LAN LED to blink.
•
Turn Off: Cause the EX1401's LAN LED to stop blinking.
EX1401 Web Page Operation
o
InstrumentAddressString: Indicates the resource string by which the module
can be accessed via its instrument driver.
o
Hostname: Indicates the Full Qualified Domain Name of the module. The first
part of the FQDN is the user-configured hostname.
o
IP Address: Indicate the current IP address of the module.
o
SubnetMask: Indicates the range of IP addresses the EX1401 will attempt to
connect to directly.
o
MAC Address: Indicates the factory-assigned MAC address of the module.
o
Gateway: The IP address of a server that EX1401 can use to contact IP
addresses external to its network.
o
DHCPEnabled: Indicates whether DHCP is enabled on the interface.
o
AutoIPEnabled: Indicates whether AutoIP is enabled on the interface.
