I
O
NSTALLATION
PTIONS
The EX1401 can be optionally rack mounted, using the rack mount kit accessory (P/N: 70-0626-
900). This must be installed prior to installation into the rack. This option is not included with the
EX1401 and must be ordered separately, if needed.
Rack-shelf Installation Option of EX1401
The shelf/tray installation option includes all the parts necessary to mount the EX1401 to the front
of a standard test rack.
Required Tools
1) #2 Phillips screwdriver
Parts List
Item#
1
2
Assembly Procedure
1) Place the chassis on a protected work surface with its input connectors facing front.
2) Using a #2 Phillips screwdriver, install the rack shelf/tray on the bottom of the EX1401 using
four (4) 4-40 x 3/16", Flat 82° Undercut Phillips, Black Oxide screws, as shown in below
diagram.
EX1401 Preparation for Use
Qty
Description
1
Bracket, Rackmount, EX1401 Chassis
4
Screw, 4-40 x 3/16", Flat 82° Undercut Phillips, Black Oxide

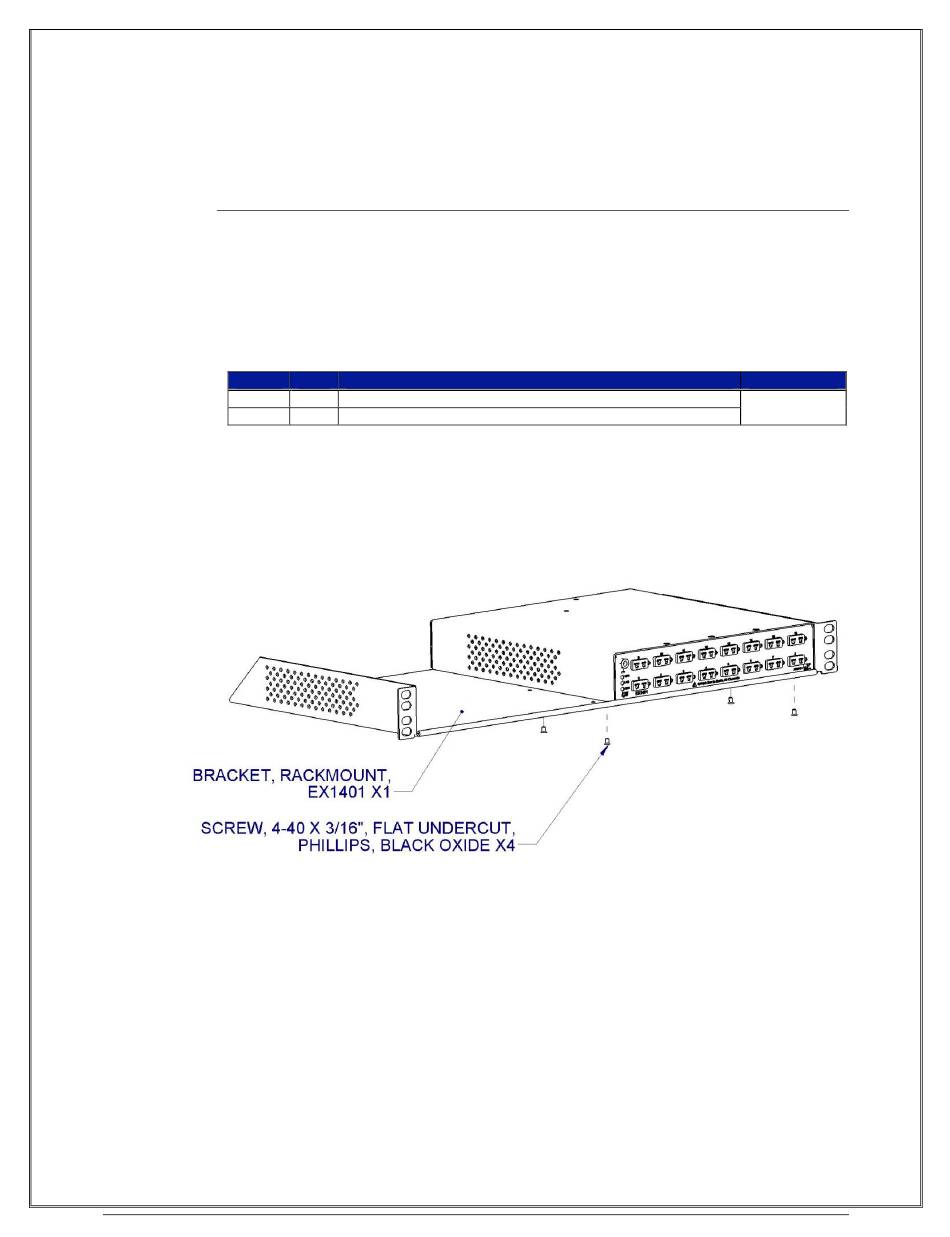

F
2-1: R
S
I
IGURE
ACK
HELF
D
NSTALLATION
IAGRAM
www.vtiinstruments.com
VTI P/N
70-0626-900
27
