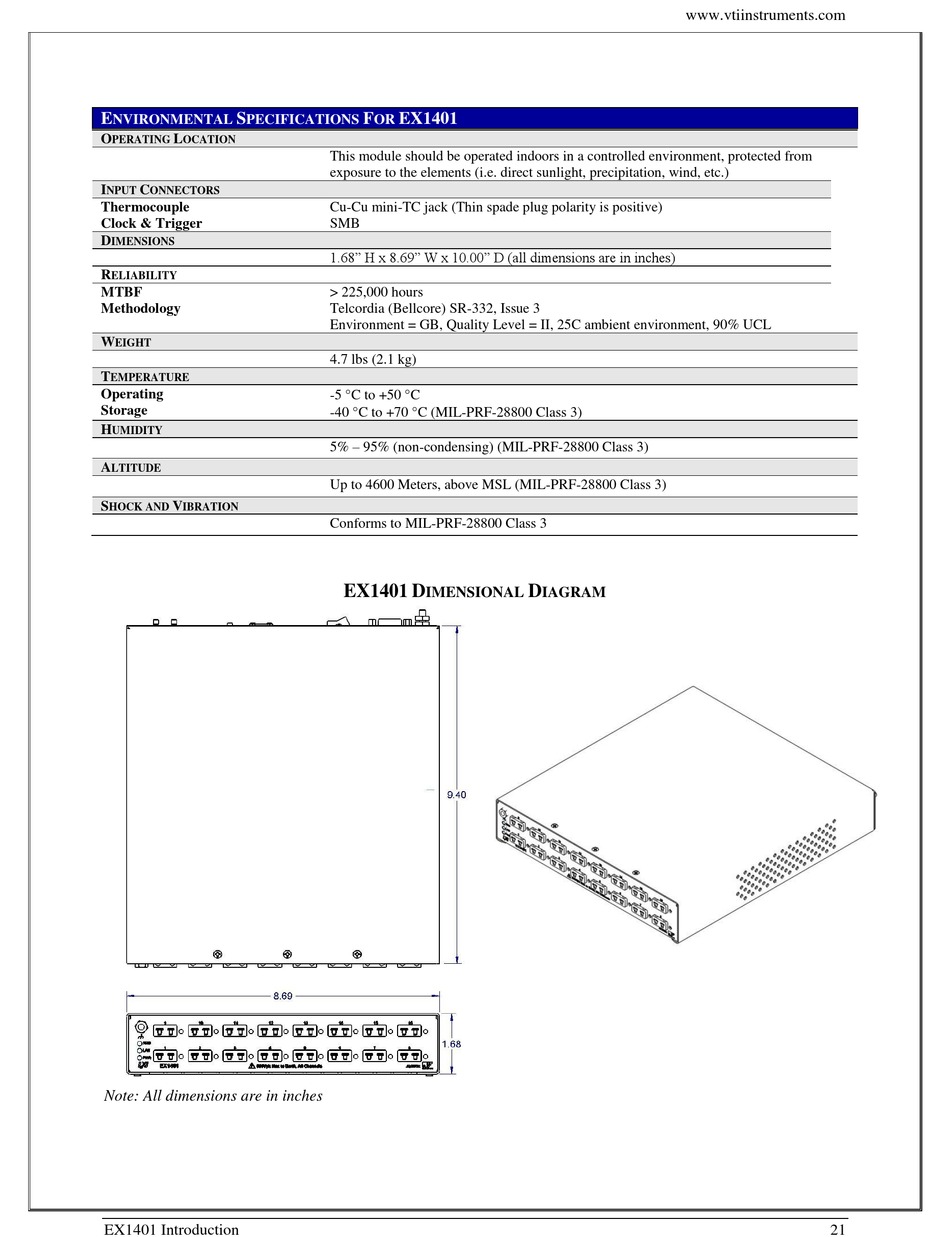

Ex1401 Dimensional Diagram - VTI Instruments EX1401 User Manual

E S
NVIRONMENTAL PECIFICATIONS
O L
PERATING OCATION
I C
NPUT ONNECTORS
Thermocouple
Clock & Trigger
D
IMENSIONS
R
ELIABILITY
MTBF
Methodology
W
EIGHT
T
EMPERATURE
Operating
Storage
H
UMIDITY
A
LTITUDE
S V
HOCK AND IBRATION
Note: All dimensions are in inches
EX1401 Introduction
F EX1401
OR
This module should be operated indoors in a controlled environment, protected from
exposure to the elements (i.e. direct sunlight, precipitation, wind, etc.)
Cu-Cu mini-TC jack (Thin spade plug polarity is positive)
SMB
1.68" H x 8.69" W x 10.00" D (all dimensions are in inches)
> 225,000 hours
Telcordia (Bellcore) SR-332, Issue 3
Environment = GB, Quality Level = II, 25C ambient environment, 90% UCL
4.7 lbs (2.1 kg)
-5 C to +50 C
-40 C to +70 C (MIL-PRF-28800 Class 3)
5% – 95% (non-condensing) (MIL-PRF-28800 Class 3)
Up to 4600 Meters, above MSL (MIL-PRF-28800 Class 3)
Conforms to MIL-PRF-28800 Class 3
EX1401 D
IMENSIONAL
www.vtiinstruments.com
D
IAGRAM
21
