OCATION OF CONNECTORS

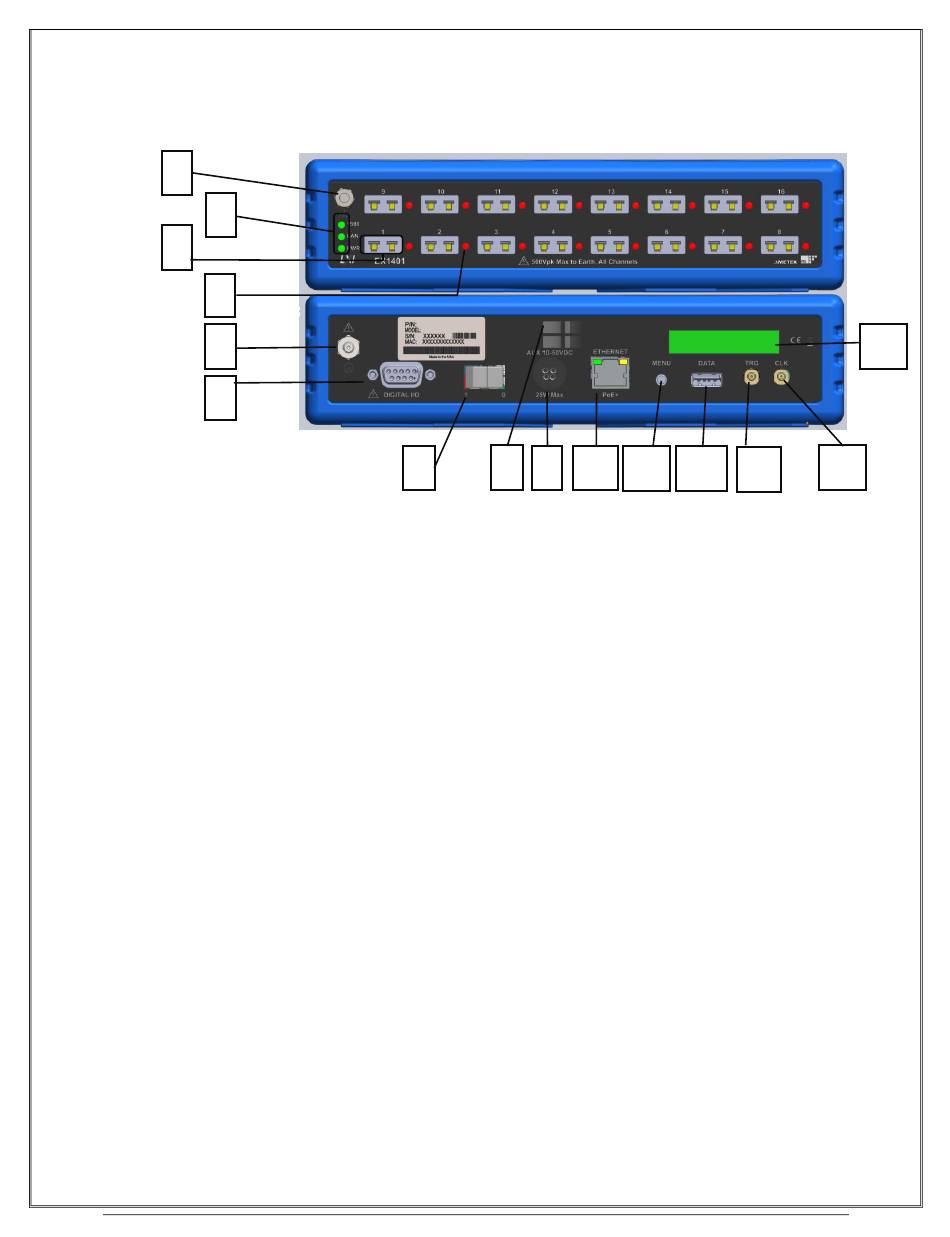

Given below are the locations of various buttons, indicators and connectors on EX1401.
1
2
3
4
5
6
1.
Earth point socket (standard Banana socket)
2.
LXI System status indicators
3.
Input connector (Mini Thermocouple Socket Cu-Cu)
4.
Open thermocouple fault indication LED
5.
Chassis Earth point stud, Safety ground
6.
Digital IO port (Standard D-Sub 9 pin Female/Socket)
7.
Power Switch
8.
Cooling fan exhaust
9.
Auxiliary power connector
10. Ethernet/LAN Port (PoE+ enabled)
11. Menu Button
12. USB 2.0 host port (Type A Female) for external data logging disk drive
13. Trigger Connector (Standard SMB Male)
14. External Clock Connector (Standard SMB Male)
15. Display
26
8
7
9
10
11
12
13
EX1401 Basic Operation
15
14
