Scan Combiflex 450 – Manual
Chapter 1

1.6 Overview

11
10
9

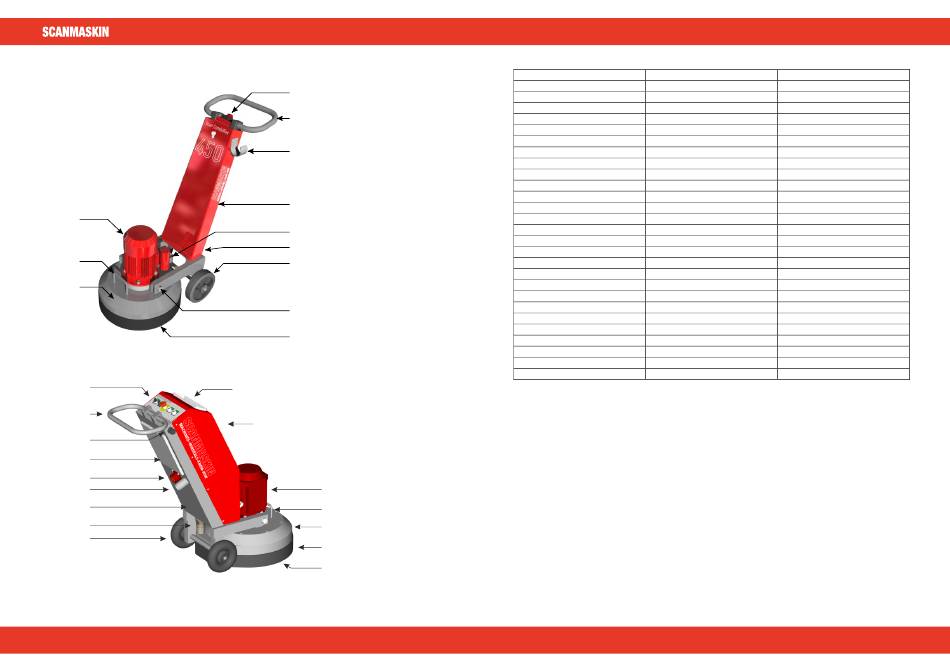

Figure 1-3 SC 450 overview
13
14
28
15
16
17
18
19
20
Figure 1-4 SC 450NS overview
- 44 -
44
1
2
3
4
5
12
6
7
8
27
26
25
24
23
22
21
www.scanmaskin.com
SCAN COMBIFLEX 450/450NS
Scan Combiflex 450 – Manual
Chapter 1
Item Description
1 Control device
2 Handle
3 Dust collector hose holder
4 Frame
5 Dust collector outlet
6 Wheel
7 Pin
8 Dust cover
9 Grinding head
10 Lifting handle
11 Motor
12 Connector motor - frame
13 Control panel
14 Handle
15 Electrical cabinet
16 Power inlet
17 Dust collector connection
18 Frame
19 Dust hoses
20 Wheels
21 Gear barrel
22 Dust cover
23 Cover
24 Lift handle
25 Motor
26 Cover
27 Water tank
Table 1-3 Machine parts overview
- 45 -
www.scanmaskin.com
ENGLISH
Reference
4.3 Control devic
4.14 Changing tools
3.3 Lifting
1.2 Mechanical specifications
