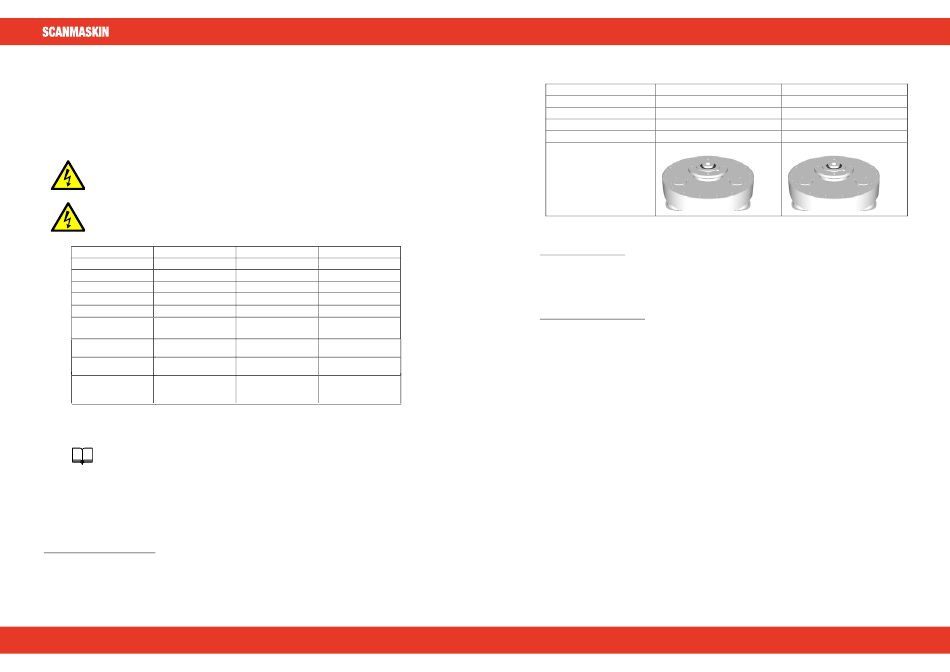

Scan Combiflex 450 – Manual
Chapter 1

1 Specifications

The SC-450 is available with different power inputs. This is described in the different sections later
on in this chapter.

1.1 Electrical specifications

To find the specifications that apply to your machine, check the information plate on the machine.
Never connect the SC-450 to any other voltage or number of phases than described in this
specification.
The power source must be fused according to "External fuse" in this specification; also the
cables used must be marked and rated in accordance with the fuse used. Failure to comply
with the correct fuses may cause fire or injuries.
1 2
Power choice 230 V 1~
Power 1.5 kW (2 hp)
Current 8.7 A
Voltage 200 – 240 V 1~
Frequency
50 Hz +/- 5%
3
External fuse 10 A
4
Power inlet CEE 7/7 – 250V
16A + PE
Noise level pressure 81 db(A)
Noise level effect 91 db(A)
Vibration (hand-
2.1 m/s
och armvibration)
Table 1-1 Electrical specifications
All models are CE-marked.
If using a generator see "2.6.2 Using a generator"
1
This refers to different power choices. Note that a SC-450 made for one choice of power must be used with the particular
choice.
2
Standard
3
Maximum current for the fuses used in the power source (i.e. the distribution box).
4
This is the standard inlet used. Machines sold outside of EU will be shipped either with a local standard inlet or an adapter.
- 40 -
40
230 V NS 110 V 1~
2.2 kW (3 hp) 1.5 kW (2 hp)
12.9 A 18.5 A
200 – 240 V 1~ 100 – 130 V 1~
50 Hz +/- 5% 60 Hz +/- 5%
13 A 20 A
CEE 7/7 – 250V NEMA 5-20 –
16A + PE 125V 20A + PE
81 db(A)
81 db(A)
91 db(A)
91 db(A)
2.1 m/s
2.1 m/s
www.scanmaskin.com
SCAN COMBIFLEX 450/450NS
Scan Combiflex 450 – Manual
Chapter 1

1.2 Mechanical specifications

Model SC-450
Grinding diameter
450 mm
Grinding plate diameter 150 mm
Grinding plate speed 950 rpm
Mass
90 kg
Gear barrel Free running
Table 1-2 Mechanical specifications
Dimensions of SC-450
Width 460 mm 18.1"
Height 1030 mm 40.6"
Depth 810 mm 31.9"
Dimensions of shipping box
Width 610 mm 24.0"
Height 1430 mm 56.3"
Depth
810 mm 31.9"
Ambient temperature during operation
Ambient temperature during storage
- 41 -
www.scanmaskin.com
ENGLISH
SC-450 2,2 NS / 2.2kW
17.7" 450 mm 17.7"
5.9" 150 mm 5.9"
950 rpm
198 lbs 100kg 220 lbs
Free running
-20°C to +40°C -4°F to 104°F
-20°C to +70°C -4°F to 158°F
