5.8.6 Ethernet Ports (ETH0 and ETH1)

Panel socket RJ45.
Pin Signal mark
1 TXD+
2 TXD-
3 RXD+
4 DC+
5 DC+
6 RXD-
7 DC-
8 DC-
The crossover UTP cable (Ethernet cable) plugs into the RJ45 connector labeled as ETH0
or ETH1 (see figure below).
The insulation strength of Ethernet ports from each other and from the rest of the router
(grounding) is dependent on the router version:
Router Version Insul. Strength from Router
Without PoE 1.5 kV
PoE PD 1.5 kV
PoE PSE none
Description
Transmit Data – positive pole
Transmit Data – negative pole
Receive Data – positive pole
PoE power + (if it's equipped by PoE)
PoE power + (if it's equipped by PoE)
Receive Data – negative pole
PoE power - (if it's equipped by PoE)
PoE power - (if it's equipped by PoE)
Table 12: Connection of Ethernet connector

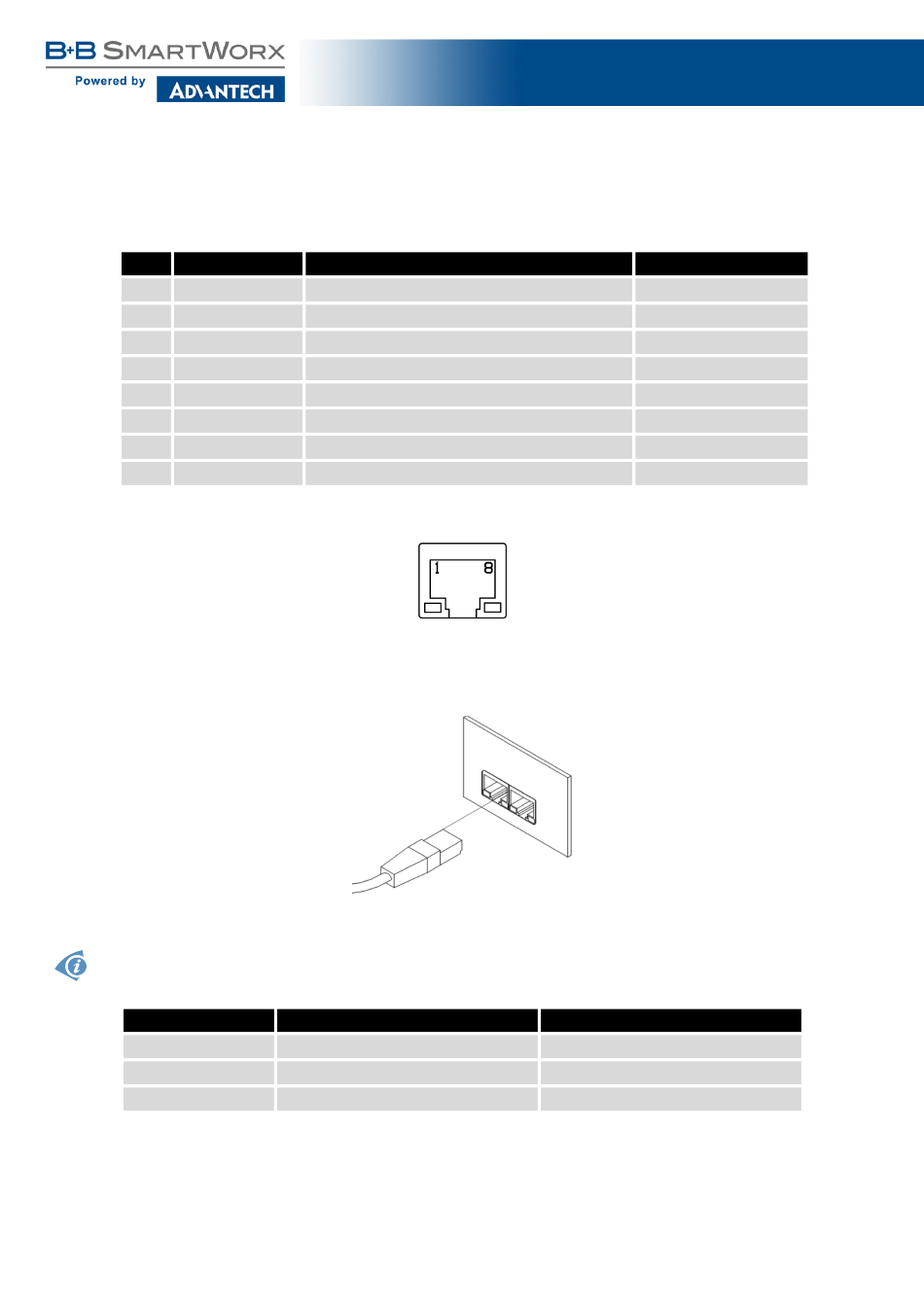

Figure 18: Ethernet connector
Figure 19: Connection of Ethernet cable
Table 13: Insulation strength of Ethernet ports
20
SmartMotion ST355
Data flow direction
Input/Output
Input/Output
Input/Output
Input/Output
Insul. Strength between Ports
1.5 kV
none
none
