- Page 1 Hardware Manual LAN Industrial Router ICR-2501 Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN-0084-EN, revision from 5th September, 2024.
- Page 2 © 2024 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and it does not represent a commitment on the part of Advantech.
- Page 3 Used symbols Danger – Information regarding user safety or potential damage to the router. Attention – Problems that can arise in specific situations. Information – Useful tips or information of special interest.
-
Page 4: Table Of Contents
Contents 1. Product Overview 1.1 Product Introduction ......... 1.2 Hardware Overview . - Page 5 List of Figures Router Hardware Overview: Front View ......Router Hardware Overview: Rear View .
- Page 6 List of Tables Router Hardware Overview: Front View ......Router Hardware Overview: Rear View .
-
Page 7: Product Overview

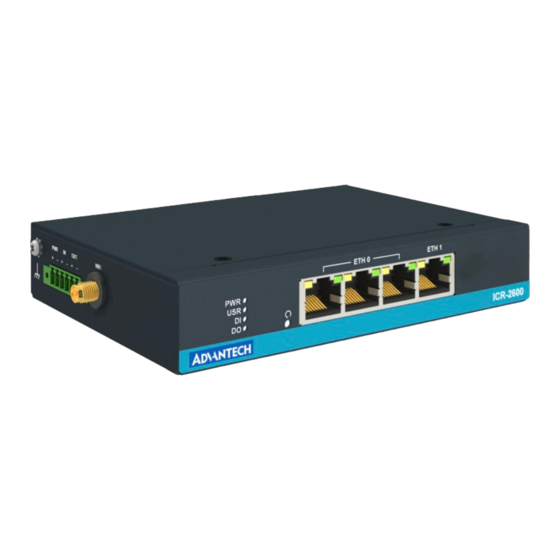

1. Product Overview 1.1 Product Introduction The ICR-2501 stands as a LAN Router and a edge computing gateway targeted at the global market. It is optimally designed for IoT applications across various sectors, such as industrial routers and gateways, digital signage, and industrial PCs and tablets. -
Page 8: Hardware Overview
Button to reboot the router or to restore the default configuration; see Chapter 2.6. ETH0 RJ45 100 MB Ethernet switch connections for the first LAN and ETH1 RJ45 Ethernet connection for the second LAN; see Chapter 2.2. Table 1: Router Hardware Overview: Front View ICR-2501 Hardware Manual... -
Page 9: Router Hardware Overview: Rear View
Figure 2: Router Hardware Overview: Rear View Item/Caption Type Description DIN clip DIN rail clip, not included as standard accessories; see Chapter 1.9. Wall clip Wall mounting clip, included as standard accessories; see Chapter 1.8. Table 2: Router Hardware Overview: Rear View ICR-2501 Hardware Manual... -
Page 10: Order Codes
Initial version (revision number not printed on the labels). New design of the mainboard; refer to PCN-2023-05 for details. Changed the WiFi label on the chassis to "AUX"; refer to PCN-2024-05 for details. Table 4: HW Revisions History ICR-2501 Hardware Manual... -
Page 11: Package Contents
Wall mounting clip with screws 1 set 6-pin terminal block for power sup- ply, digital input and digital output (de- 1 pcs ployed on the router) Printed Quick Start Guide Leaflet 1 pcs Table 5: Contents of Package ICR-2501 Hardware Manual... -
Page 12: Product Dimensions
For the dimensions of the product see the figures below. Note that all sizes are measured in millimeters. Variant with Wall Mounting Clip Figure 3: Router Dimensions – Top, Side and Front View with Wall Mount Clip ICR-2501 Hardware Manual... -
Page 13: Router Dimensions - Top, Side And Front View With Din Rail Clip
1. Product Overview 1.6 Product Dimensions Variant with DIN Rail Clip Figure 4: Router Dimensions – Top, Side and Front View with DIN Rail Clip ICR-2501 Hardware Manual... -
Page 14: Mounting Recommendations
• Sufficient space must be left between each connector for the handling of cables, • To ensure the correct functioning of the router we recommend the use of an earth-bonding distribution frame for the grounding of the grounding screew, see Chapter 2.3. ICR-2501 Hardware Manual... -
Page 15: Wall Mounting
4 millimeters. For detailed information about the mounting dimensions see Figure in Chapter 1.6. When mounting the wall mounting clip, tighten the screws with max. torque of 0.4 Nm. Figure 5: Screwed Wall Mounting Clip ICR-2501 Hardware Manual... -
Page 16: Din Rail Mounting
DIN rail clip hitched to the DIN rail get out of this rail and then fold out the bottom part of the router away from the DIN rail, see Figure 7. Figure 7: Removing Router from the DIN Rail ICR-2501 Hardware Manual... -
Page 17: Product Label
1. Product Overview 1.10 Product Label 1.10 Product Label The figure below shows an example of the product labels with all the information printed on them. Figure 8: Product Label ICR-2501 Hardware Manual... -
Page 18: Hardware Functionality
Transmit Data- (negative pole) Receive Data+ (positive pole) — — — — Receive Data- (negative pole) — — — — Table 6: Ethernet Connector Pinout Description The isolation barrier of the Ethernet ports against the ground is 1500 V. ICR-2501 Hardware Manual... -
Page 19: Power Supply
The power supply (common pole) is not connected to the metal case of the router nor to the internal ground, see Figure 13. If recommended for the installation environment, it is advised to protect the router by properly grounding it using the grounding screw, as illustrated in Figure 11. Figure 11: Position of the Grounding Screw ICR-2501 Hardware Manual... -
Page 20: I/O Port Interfaces
The I/O user interface is designed for digital input processing and digital output control. For detailed electrical parameters see Chapter 4.5. The functional scheme of connection for the digital input and digital output is in Figure 13. Figure 13: Functional Scheme of the Digital Interface ICR-2501 Hardware Manual... -
Page 21: Led Status Indication
Green Selected 100 Mbps bit rate. ETH1 Green Selected 10 Mbps bit rate. ETH0 Orange The network cable is connected. ETH1 Orange Blinking Data transmission. Orange The network cable is not connected. Table 9: LED Status Indication ICR-2501 Hardware Manual... -
Page 22: Reset Functions
The RST button has multiple functions depending on the firmware platform. For more information, see the configuration manual [1], chapter Manual Introduction Device Reset. Use a narrow screwdriver or any small tool to press the RST button. Figure 14: Resetting the Router ICR-2501 Hardware Manual... -
Page 23: First Use
All routers have the WebAccess/DMP client pre-installed by default. The activated client periodically uploads router identifiers and configuration to the WebAccess/DMP server. See the configuration manual [1], chapter Basic Information WebAccess/DMP Configuration, for more information. ICR-2501 Hardware Manual... -
Page 24: Technical Specifications
DIN rail clip (optional part) specification DIN 35 mm, EN 60715 Weight for non-WiFi / WiFi Box w/o clip 355 g (0.78 lbs) / 365 g (0.80 lbs) Table 10: Basic Parameters For product revision 2.0 and higher. ICR-2501 Hardware Manual... -
Page 25: Standards And Regulations
EN 301 491-1, EN 301 489-17, EN 610000-6-2, EN 610000-6- 3, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6 Safety IEC 62368-1 National CE, UKCA compliant Environmental REACH, RoHS3 and WEEE compliant Table 11: Standards and Regulations ICR-2501 Hardware Manual... -
Page 26: Type Tests And Environmental Conditions
Test Nb, -40 C / +75 C, 3h/3h, 2 cycles, 3 K/min temperature Dry heat, cyclic EN 60068-2-30 +55 C / +25 C, rel. humidity 95 %, 6 h-6 h Table 12: Type Tests and Environmental Conditions ICR-2501 Hardware Manual... -
Page 27: Parameters Of Wifi
Station (STA) Multirole (STA&AP) Security – Standards WPA, WPA2, WPA3, 802.1X Security – Encryption WEP, TKIP, AES TX Power Max. 18 dBm @ 2.4 GHz Max. 15 dBm @ 5 GHz Table 13: Technical Parameters of WiFi ICR-2501 Hardware Manual... -
Page 28: Parameters Of I/O Ports
600 MHz CPU power 4,72 DMIPS/MHz Flash memory 64 MB NOR Flash • 12 MB for Router Apps • 2 MB for customer data RAM size 128 MB Watchdog HW Watchdog Battery Backup RTC Table 15: System Configuration ICR-2501 Hardware Manual... -
Page 29: Appendix A: Troubleshooting
• Check the "System Log" page for error messages. IPSec tunnel establishes but the communication does not run. • Probably there are bad routing rules defined in the connected devices, or the default gateway. Is the router Cisco compatible? Can I use the Cisco configuration? ICR-2501 Hardware Manual... - Page 30 Web interface in "Configuration" section, "Services", "SSH". Then connect with any SSH client on port 22 of the router. User and password is the same as for the Web interface. Telnet on v2 routers can be enabled here: "Configuration" section, "Services", "Telnet". ICR-2501 Hardware Manual...
- Page 31 +1-800-346-3119 (Monday – Friday, 7 a.m. to 5:30 p.m. CST) Fax: +1-815-433-5109 E-mail: support.iiot.ana@advantech.com Web: www.advantech.com Customer Support for Asia Phone: +886-2-2792-7818 #1299 (Monday – Friday, 9 a.m. to 5:30 p.m. UTC+8) Fax: +886-2-2794-7327 E-mail: icg.support@advantech.com.tw Web: www.advantech.com ICR-2501 Hardware Manual...
- Page 32 At the end of it’s life this pro- duct MUST NOT be mixed with other commercial waste for disposal. The device contains a battery. Remove the battery from the device before disposal. The battery in the device needs to be disposed of apart accordingly. Check the terms and conditions of your supplier for disposal information. ICR-2501 Hardware Manual...
- Page 33 Appendix D: Related Documents ICR-2[0456]00 Configuration Manual [EP] Product-related documents and applications can be obtained on Engineering Portal at address. https://icr.advantech.com/download ICR-2501 Hardware Manual...
- Page 34 We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s man- ual complies with Directive 2014/53/EU (WiFi version) and with the essential requirements and other relevant provisions of Directives 2014/30/EU and 2014/35/EU (non-WiFi ver- sion). We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s man- ual complies with Radio Equipment Regulations 2017 (S.I.
