Binary inputs connection example:
Binary output
Binary output parameters:
– 60 V AC / 300 mA
– 60 V DC / 300 mA
The current of the binary output is limited by a resettable fuse (300 mA).
Binary output connection example:

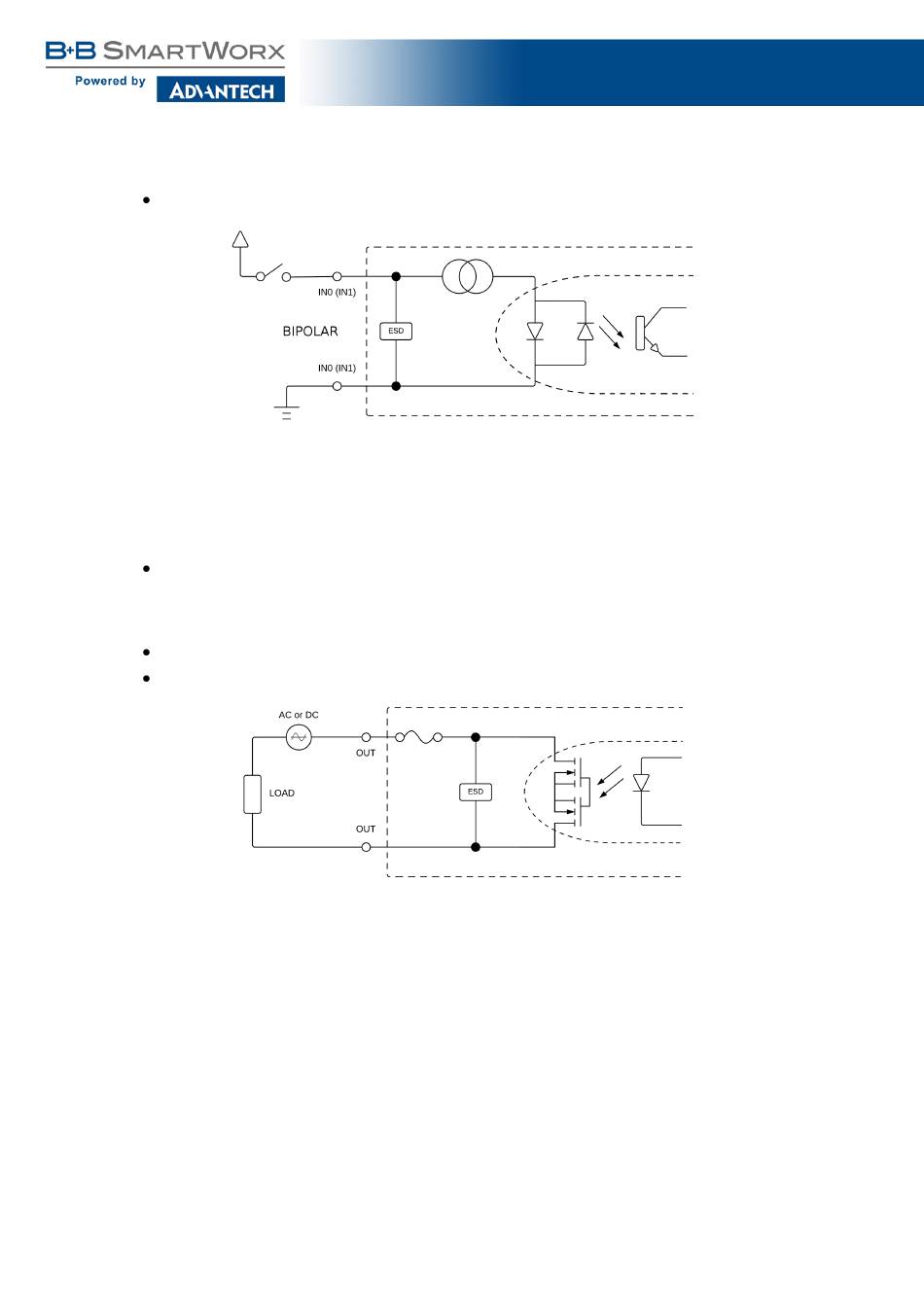

Figure 24: Binary inputs connection
Figure 25: Binary output connection
