– Length of the bunch (combination of power supply and data cables) can be maxi-
mum 1.5 m. If the length of data cables exceeds 1.5 m or in the event of, the cable
leads towards the switch – board. We recommend installing over – voltage protec-
tors (surge suppressors).
– With data cables they mustn't carry cables with reticular tension
Sufficient space must be left before individual connectors for handling of cables,
For correct function of the router we recommend to use in the switch-board earth-bonding
distribution frame for grounding of power supply of router, data cables and antenna.

5.6 Removing from the DIN rail

The DIN holder is suitable for a DIN rail according to EN 60715 standard only. The default
position of plastic or metal holder, which is used for mounting the router on a DIN rail, is shown
in the following figure. When mounting the DIN holder, tighten the screws with max. 0.4 Nm
torque.
For removing from the DIN rail it is necessary to lightly push upward the router so that the
top part of the DIN holder hitched to the DIN rail get out of this rail and then fold out the top
part of the router away from the DIN rail.

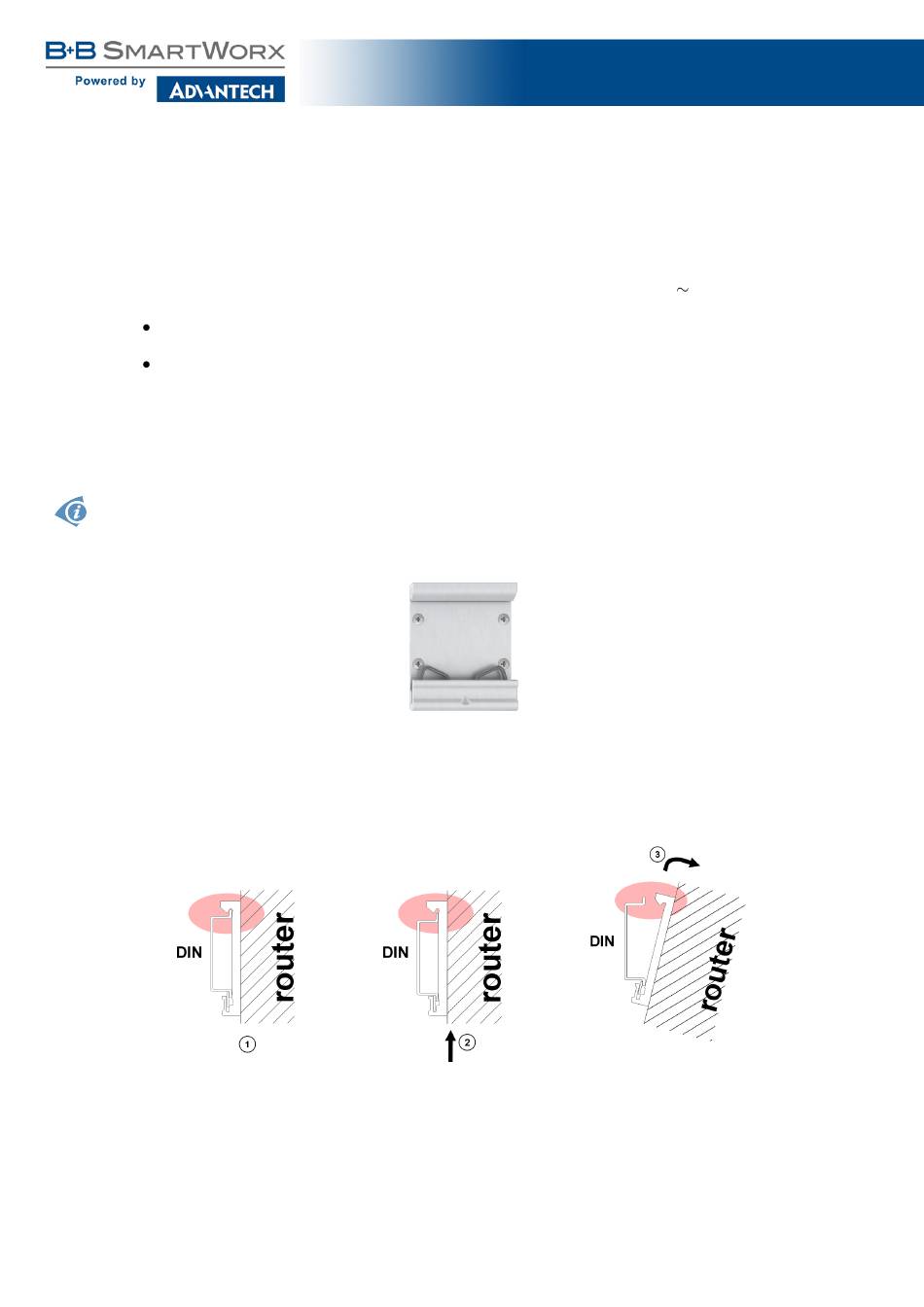

Figure 10: Default position of DIN holder
Figure 11: Removing from the DIN rail
13
SmartMotion ST355
230 V/50 Hz.
