3.11 Mounting the Enclosure
!
Attention: Mount the enclosure on a DIN rail in a UL-compliant metal box. Do not
drill holes in the enclosure or modify the enclosure in any way.
To mount the enclosure on a DIN rail
Mount the enclosure with terminal labels the right way up and the mounting clip on the bottom.
1. Mount a section of DIN rail so that there is enough space for the enclosure to be
mounted.
2. Slide the hooks under the rail and push the enclosure to secure it on the DIN rail. The
mounting clip locks it in place.

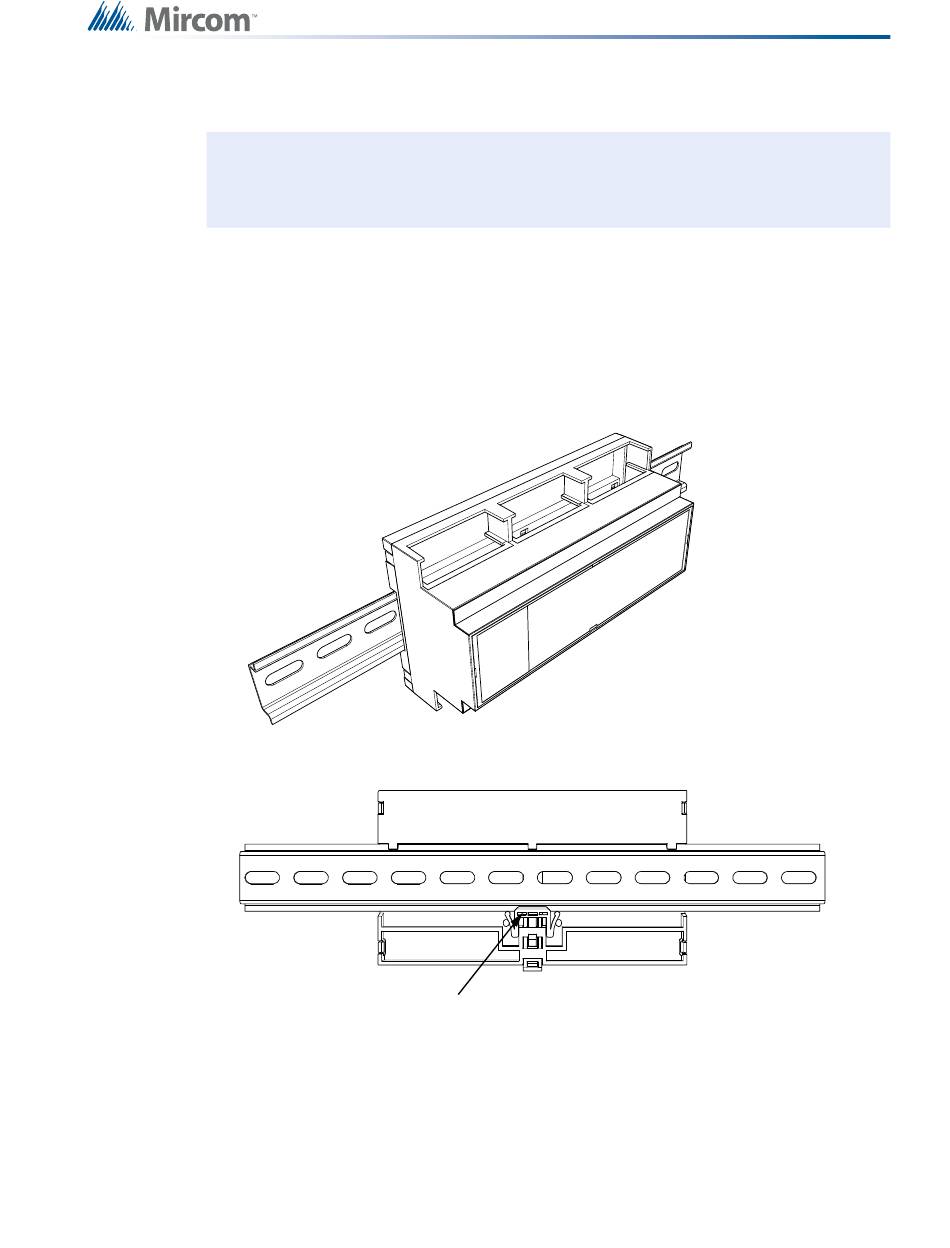

Figure 13 Enclosure mounted on DIN rail (circuit board not shown)
Figure 14 Enclosure mounted on DIN rail (back view)
To remove the enclosure from the DIN rail
•
With your hands or with a small flathead screwdriver, pull the mounting clip to release
the enclosure from the DIN rail, and carefully pull the enclosure off the DIN rail.
Mount with
mounting clip on bottom
Installation
21 (45)
