Connect the OpenBAS-HV-RF433R wireless receiver to the port labeled I2C, so that it is
accessible when the board is in the enclosure.
Connection for
wireless receiver
or memory
expansion card
Connection for
OpenBAS-HV-LCD
or memory
expansion card
Connection for
OpenBAS-HV-CORE2
SPI port for
Ethernet controller

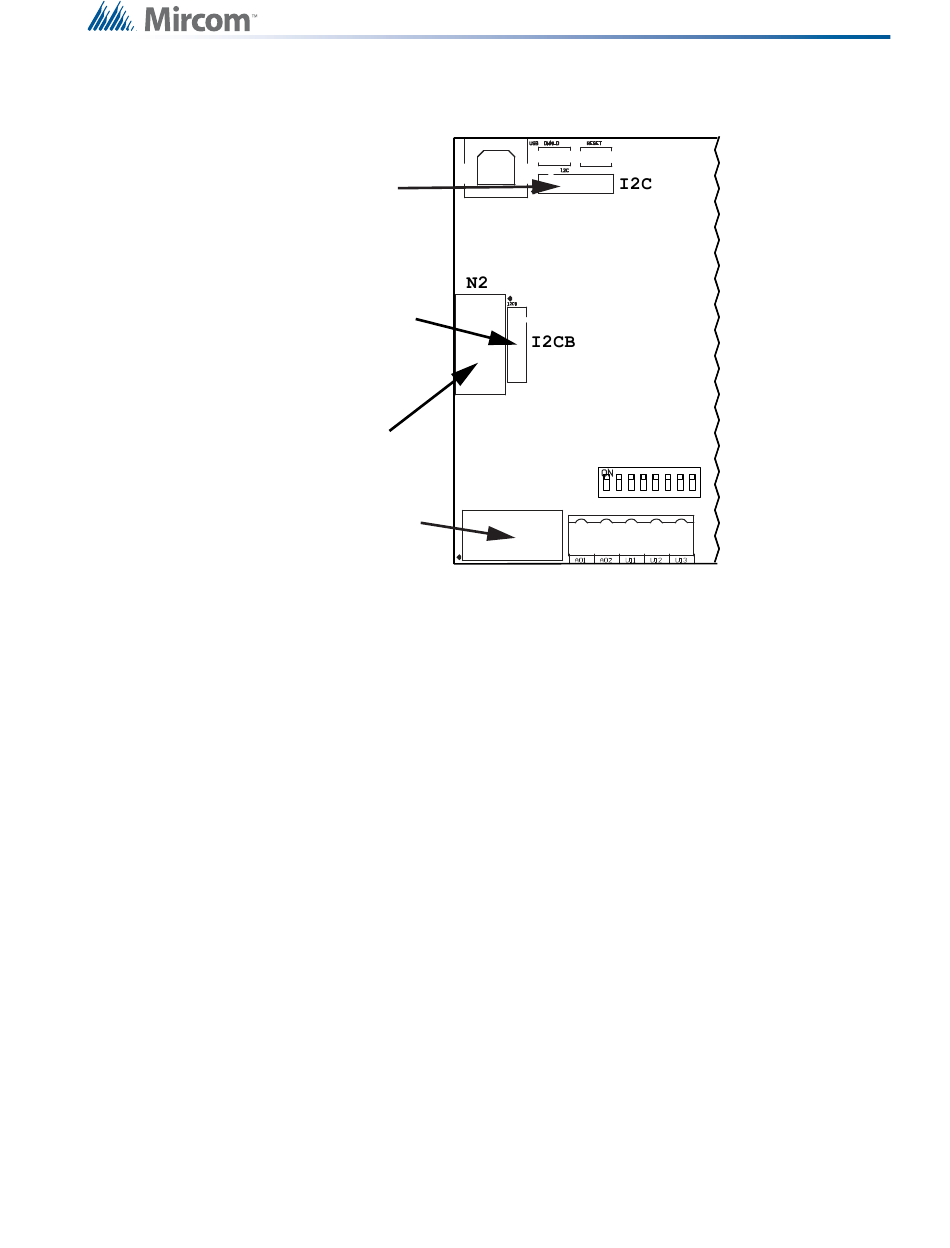

Figure 9
3.3.3 Displays (OpenBAS-HV-LCD and OpenBAS-HV-CORE2)
The OpenBAS-HV-LCD display connects to I2CB, and the OpenBAS-HV-CORE2 display
connects to N2 as shown in Figure 9.
3.4
Ethernet Controllers (OpenBAS-NWK-ETH3)
Connect an Ethernet controller to the terminal labeled SPI (shown in Figure 9) with the cable
included with the Ethernet controller. See section 4.7 on page 37 for information on
networking.
3.5
DIP Switches
The 8 DIP switches (shown in Figure 10) are used with the 8 universal inputs ONLY when the
inputs are connected to resistive 1000 Ω temperature sensors.
In all other cases, make sure that the DIP switches are off.
For example, if you are going to connect universal input 1 to a resistive 1000 Ω temperature
sensor, turn on DIP switch 1.
The DIP switches are set at the factory in the off position.
I2C, I2CB, N2, and SPI connections
Installation
17 (45)
