Overview

2.1

OpenBAS-HV-NX10 Series Components

2.1.1 Controllers

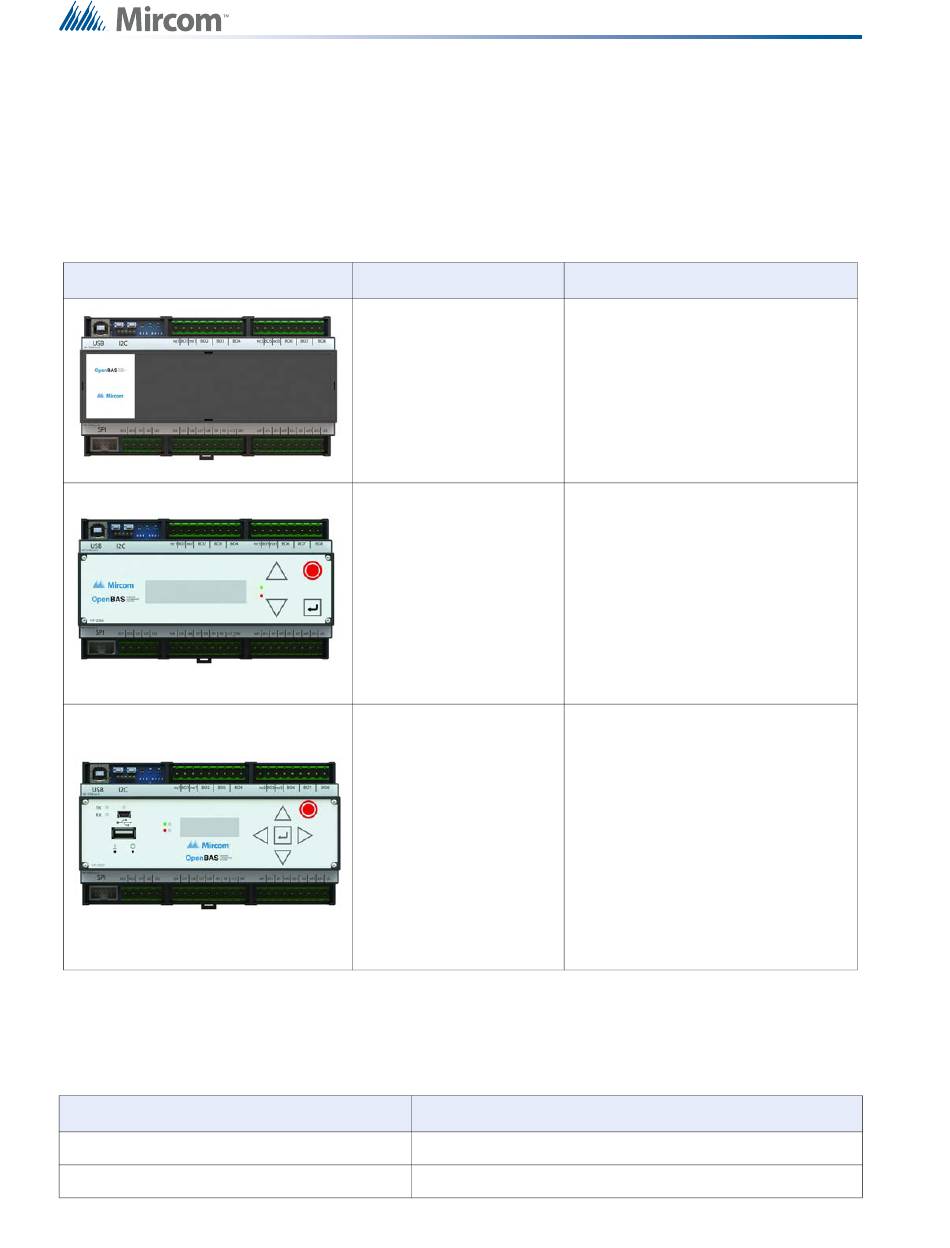

Table 1 OpenBAS-HV-NX10 Series Controllers

2.1.2 Accessories
Accessories are powered from the controller.

Table 2 OpenBAS-HV-NX10 Series Accessories

Model
OpenBAS-ACC-RS485
OpenBAS-ACC-RS232
8 (45)
Model
OpenBAS-HV-NX10P
OpenBAS-HV-NX10L
OpenBAS-HV-NX10D
Description
Optically isolated RS-485 converter
RS-232 converter
Description
HVAC controller
• Integrated programmable logic
controller and scheduler
• 18 hardware input/output points
• 2 RS-485 field bus connections
• USB, SPI and 1²C buses
HVAC controller plus the OpenBAS-
HV-LCD display
• Integrated programmable logic
controller and scheduler
• 18 hardware input/output points
• 2 RS-485 field bus connections
• USB, SPI and 1²C buses
• Operator interface with LCD and
keyboard
HVAC controller plus the OpenBAS-
HV-CORE2 display
• 32 bit dual core processor
• Scheduler and 3 integrated
programmable logic controllers
• 18 hardware input/output points
• 3 RS-485 field bus connections,
• USB, SPI and 1²C buses
• Operator interface with graphical
LCD, keyboard, and secondary
USB for data storage
