3.10 Assembly
To put the circuit board in the enclosure
1. Hold the circuit board with one hand, and with the other hand lift the tabs so that you can
fit the circuit board into the enclosure as shown below.
i
Note:
Circuit board

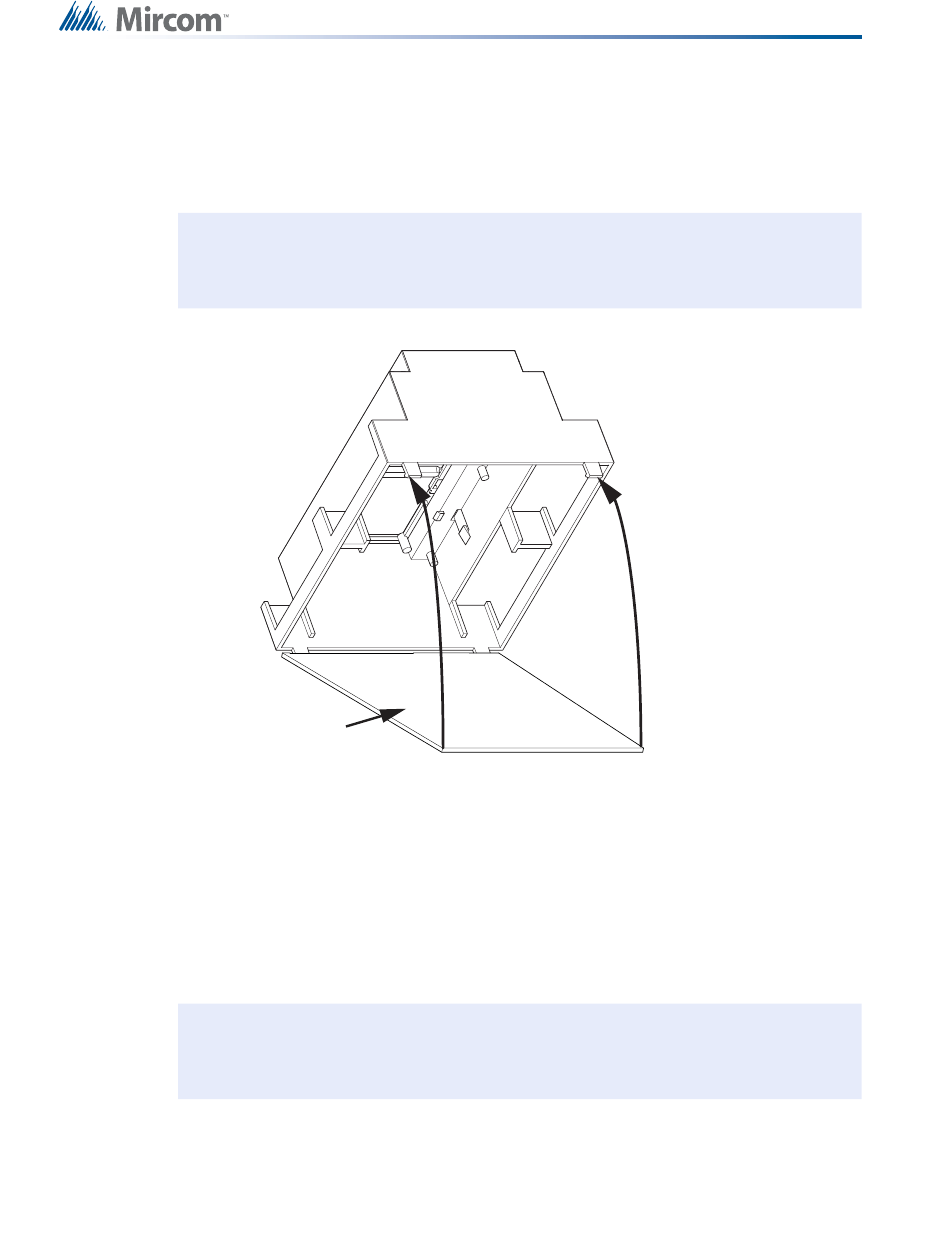

Figure 12 Fit the circuit board in enclosure
2. Snap the base onto the enclosure. Make sure that the mounting clip is on the bottom.
3. On OpenBAS-HV-NX10P, snap the cover in place.
On OpenBAS-HV-NX10L, connect the OpenBAS-HV-LCD display to the connection
labeled I2CB.
On OpenBAS-HV-NX10D, connect the OpenBAS-HV-CORE2 display to the connection
labeled N2.
Make sure that the Mircom logo is the right way up.
4. Secure the display with the 4 screws.
!
Attention: Always hold circuit boards by the edges to prevent damage from static
20 (45)
Make sure that the board is the right way up: the terminal labels on the enclosure
must match the terminal labels on the circuit board.
electricity. Always wear an anti-static bracelet when handling circuit
boards.
Installation
