Factory-installed
RS-485 modules
Jumpers

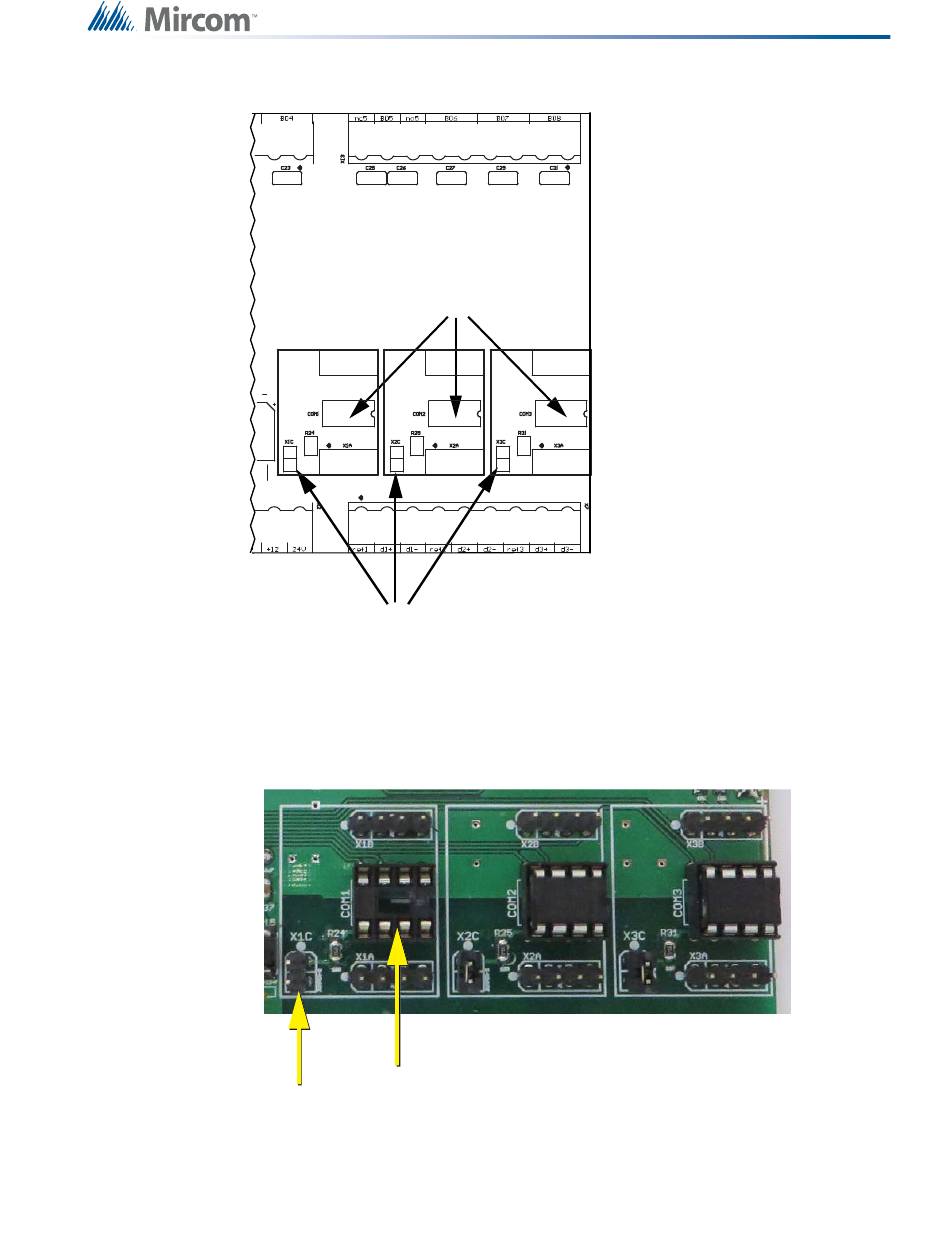

Figure 6
Location of factory-installed modules and jumpers
To install a communication converter
1. Open the jumper.
2. Remove the factory-installed RS-485 module.
Factory-installed RS-485
Jumper
module removed
open
Figure 7
The jumper and RS-485 module are removed from P1
Installation
15 (45)
