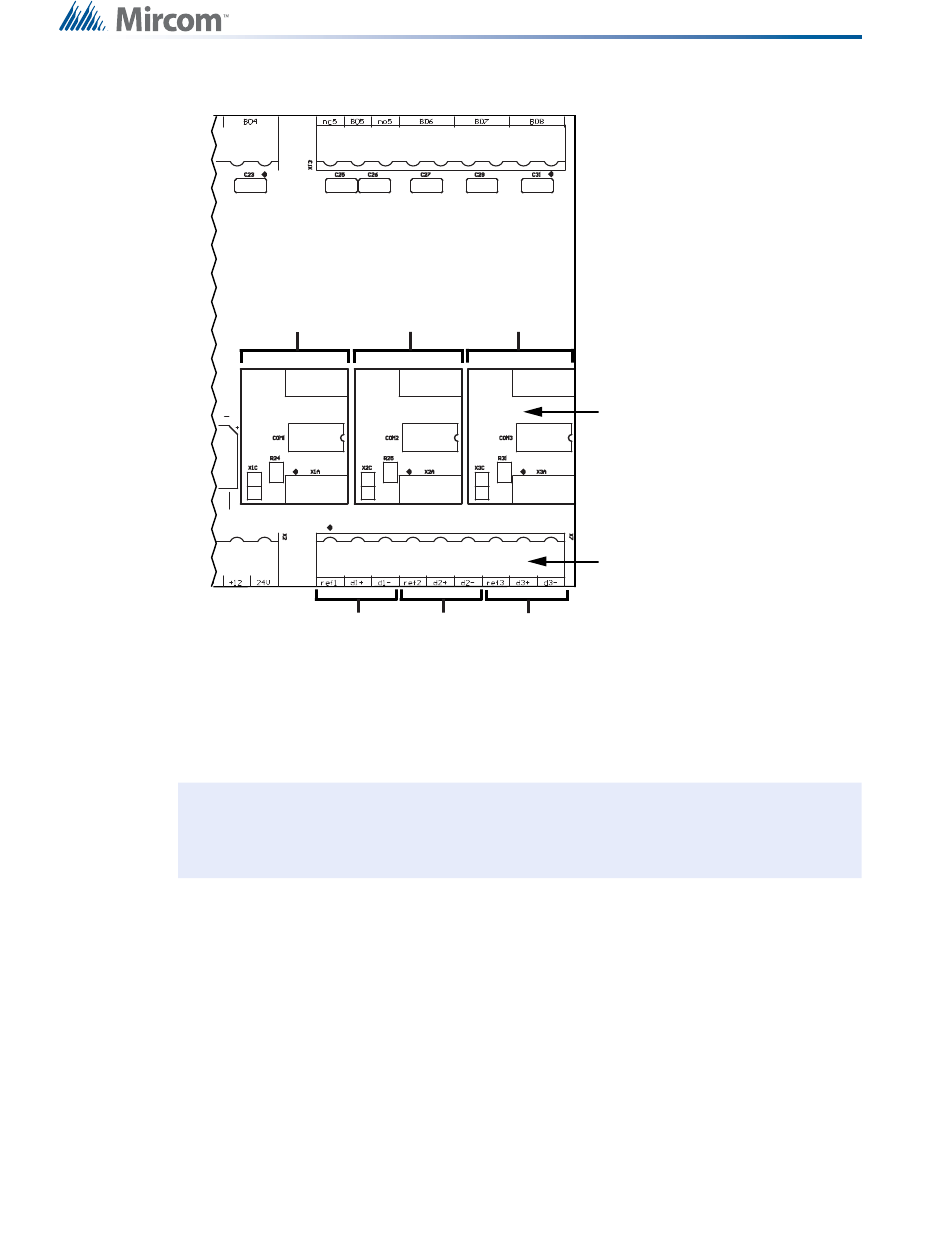

Figure 5
For example, if OpenBAS-ACC-RS485 is installed in P1 and OpenBAS-ACC-RS232 is
installed in P2, then COM1 functions as optically isolated RS-485, and COM2 functions as RS-
232.
i
Note:
14 (45)
P1
P2
COM1 COM2 COM3
COM ports
P3 and COM3 are functional only on OpenBAS-HV-NX10D.
P3
Connections for
OpenBAS-ACC-RS485
and
OpenBAS-ACC-RS232
Field bus
connections and
connection for
OpenBAS-ACC-DB9
Installation
