3.2

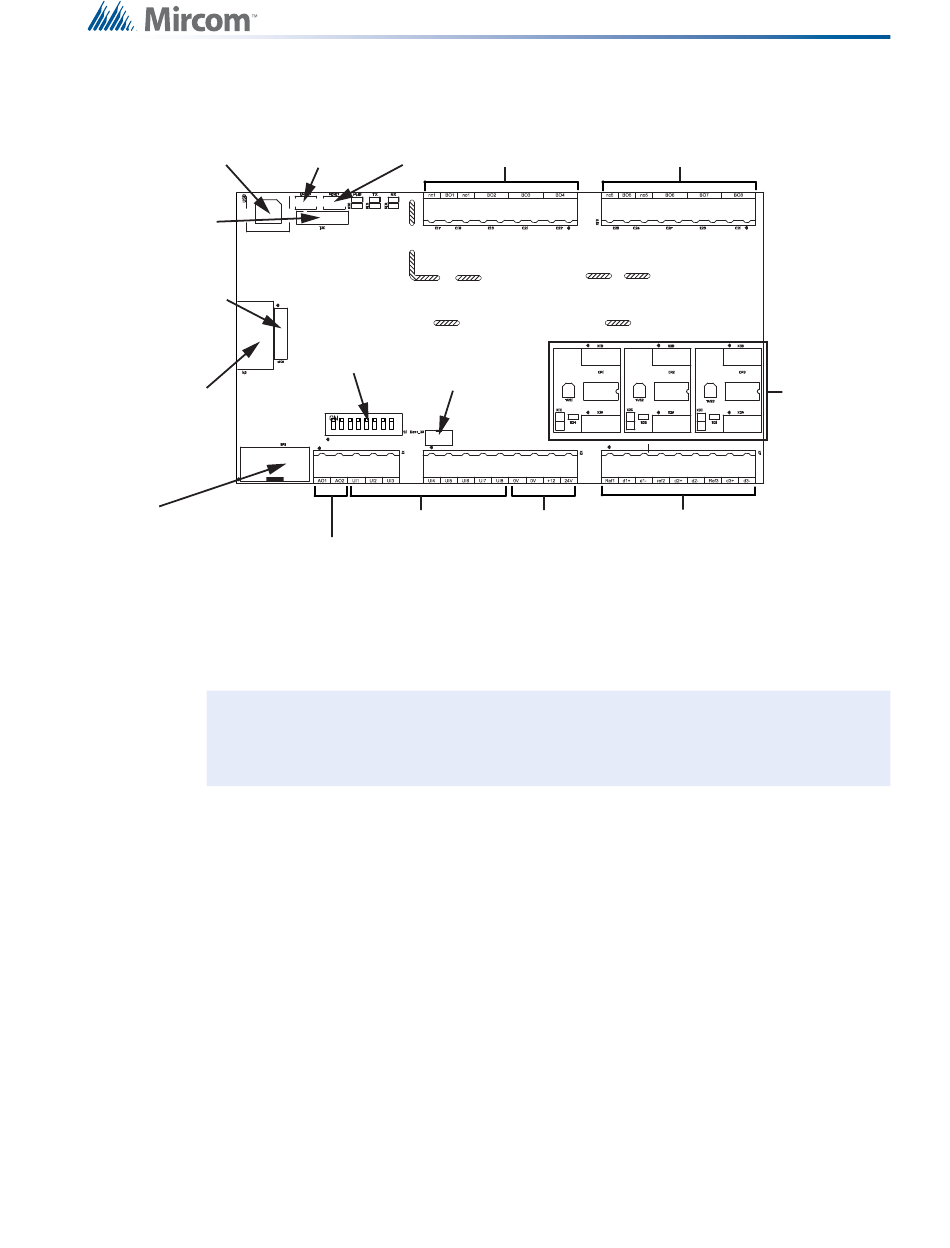

Controller Board Connections

USB
connection
Connection for
memory expansion
or wireless receiver
Connection for
memory expansion or
OpenBAS-HV-LCD
(OpenBAS-HV-NX10L
only)
Connection for
OpenBAS- HV-CORE2
display
(OpenBAS-HV-NX10D
only)
SPI port for
Ethernet controller
Figure 4
3.3

Installing Accessories

!
Attention: This job must be performed only by a certified technician as dangerous
3.3.1 Communication Converters (OpenBAS-ACC-RS485, OpenBAS-ACC-
RS232)
By default, the field bus ports (labeled COM1, COM2 and COM3) are configured as RS-485
through factory-installed modules. They can be changed to RS-232 or optically isolated RS-
485 by installing the OpenBAS-ACC-RS232 or OpenBAS-ACC-RS485 converters.
The communication converters OpenBAS-ACC-RS485 and OpenBAS-ACC-RS232 attach to
the connections labeled P1, P2, and P3 in Figure 5 below. Figure 5 also shows the relationship
between the 3 converters and the field bus connections (labeled COM1, COM2, and COM3).
P1 controls COM1, P2 controls COM2, and P3 controls COM3.
Reset
Download Relay
button
button outputs 1-4
DIP switches Battery
connection
Universal
inputs 1-8
Analog
outputs 1-2
Board connections
voltages might be present inside of the enclosure.
Always disconnect the power before installing accessories.
Relay
outputs 5-8
Power COM1, COM2, COM3
Installation
Connections for
communication
converters
13 (45)
