Summary of Contents for Mircom OpenBAS-NWK-ETH3

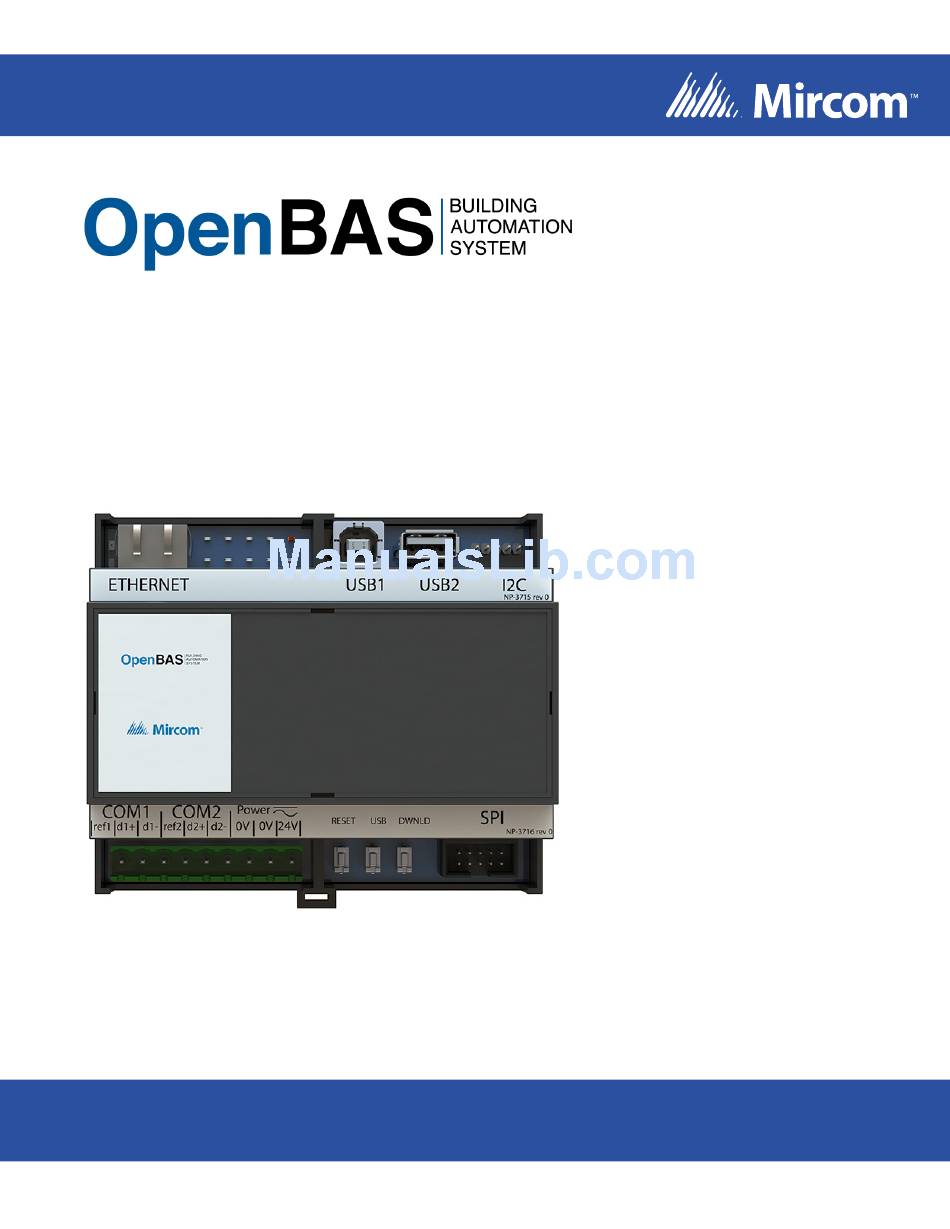

- Page 1 OpenBAS-NWK-ETH3 Ethernet Controller Installation Manual LT-2204 Rev. 0 June 2017...
-
Page 3: Table Of Contents
4.1.2 Installation Tips ......................Power Supply Connection ....................4.2.1 Powering Devices in Parallel ..................Ethernet Port ........................Field Bus Connections and OpenBAS-ACC-DB9 (OpenBAS-NWK-ETH3 only) ... 4.4.1 OpenBAS-ACC-DB9 ...................... Connecting OpenBAS-NWK-ETH3 or OpenBAS-NWK-ETHXP to an OpenBAS-HV-NX10 Series Controller ................4.5.1 SPI Port .......................... - Page 4 List of Figures Figure 1 Parts of the enclosure ....................Figure 2 Tabs on enclosure ......................Figure 3 Lift tabs and remove circuit board .................. Figure 4 Controller board connections and buttons ..............Figure 5 Communication converter connection and field bus ports ..........Figure 6 The jumper and RS-485 module are removed ...............
- Page 5 List of Tables Table 1 Controllers ........................Table 2 OpenBAS-NWK-ETH3 Accessories ................Table 3 Compatible Modules ...................... 5 (30)
-
Page 6: Introduction
OpenBAS-NWK-ETH3 Ethernet Controller Mircom’s OpenBAS-NWK-ETH3 is an Ethernet gateway and controller that can connect to a single OpenBAS-HV-NX10 series controller to provide Web server and IP protocol capability. It has 2 field bus connections that are factory set to RS-485. One can be changed to RS-232 with accessories. -
Page 7: Overview
OpenBAS-HV-NX10 series OpenBAS-NWK-ETHXP controller • Mounts in a DIN rail-mounted box Minimum order: 100 units OpenBAS-NWK-ETH3 Accessories Accessories are powered from the controller. Table 2 OpenBAS-NWK-ETH3 Accessories Model Description OpenBAS-ACC-RS485 Optically isolated RS-485 converter OpenBAS-ACC-RS232 RS-232 converter OpenBAS-ACC-DB9 DB9 adapter... -
Page 8: Compatible Modules
• Operator interface with graphical LCD, keyboard, and secondary USB for data storage Wireless 433 MHz RF receiver that integrates up to 16 wireless transmitters and thermostats into OpenBAS-NWK-ETH3 OpenBAS-HV-RF433R (OpenBAS-NWK- controllers ETH3 only) Mounts in a DIN rail-mounted box... -
Page 9: Installation
Installation Attention: Installation of OpenBAS devices should be in accordance with the Canadian Electrical Code or the National Electrical Code, and comply with all local regulations. Final acceptance subject to the Local Authority Having Jurisdiction (AHJ). If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. -
Page 10: Figure 2 Tabs On Enclosure
Installation To remove the circuit board from the enclosure Caution: Risk of Electric Shock. Disconnect the mains power and disconnect the device from all wiring before opening the enclosure. Attention: Always hold circuit boards by the edges to prevent damage from static electricity. -
Page 11: Figure 3 Lift Tabs And Remove Circuit Board
Installation Lift tabs and remove circuit board Circuit board Figure 3 Lift tabs and remove circuit board Attention: Be careful not to break the tabs. Do not apply excessive force. 11 (30) -
Page 12: Controller Board Connections
3.3.1 Communication Converters (OpenBAS-ACC-RS485, OpenBAS-ACC- RS232) This option is available on the OpenBAS-NWK-ETH3 only. By default, COM1 and COM2 shown in Figure 5 are configured as RS-485. COM1 can be changed to RS-232 or optically isolated RS-485 by installing the OpenBAS-ACC-RS232 or... -
Page 13: Figure 5 Communication Converter Connection And Field Bus Ports
Installation OpenBAS-ACC-RS485 converter in the connection shown in Figure 5. COM2 cannot be changed. Factory-installed RS-485 module Connection for OpenBAS-ACC-RS485 Jumper OpenBAS-ACC-RS232 COM1 COM2 Figure 5 Communication converter connection and field bus ports For example, if OpenBAS-ACC-RS232 is installed, then COM1 functions as RS-232. To install a communication converter 1. -
Page 14: Memory Expansion Card (Obs-Acc-32K128) And Wireless Receiver (Openbas-Hv-Rf433R)
Figure 7 OpenBAS-ACC-RS232 is installed 3.3.2 Memory Expansion Card (OBS-ACC-32K128) and Wireless Receiver (OpenBAS-HV-RF433R) This option is available on the OpenBAS-NWK-ETH3 only. Connect the memory expansion card and the OpenBAS-HV-RF433R wireless receiver to the I2C port shown in Figure 4. Note: When connecting the I2C ports on 2 devices, make sure to connect pin 1 on the first device to pin 1 on the second device. -
Page 15: Battery
The 3 V CR2032 battery is used only during power outages for real time clock and data retention. The Mircom part number for the battery is BT-007. Install the battery before mounting the device. -
Page 16: Enclosure Dimensions
Installation Enclosure Dimensions 4 3/16” (106 mm) Hooks 3 35/64” (90 mm) Mounting clip Figure 8 Enclosure (back view) 16 (30) -
Page 17: Assembly
2. Snap the base onto the enclosure. Make sure that the mounting clip is on the bottom. 3. Snap the cover onto the enclosure. Make sure that the Mircom logo is the right way up. Attention: Always hold circuit boards by the edges to prevent damage from static electricity. -
Page 18: Mounting The Enclosure
Installation 3.10 Mounting the Enclosure Attention: Mount the enclosure on a DIN rail in a National Recognized Test Laboratory certified enclosure. Do not drill holes in the enclosure or modify the enclosure in any way. To mount the enclosure on a DIN rail Mount the enclosure with the terminal labels the right way up, and the mounting clip on the bottom. -
Page 19: Field Wiring And Leds
Field Wiring and LEDs Caution: Risk of Electric Shock. Disconnect the mains power before making connections to the OpenBAS device. Caution: Installation of OpenBAS devices must be in accordance with the Canadian Electrical Code or the National Electrical Code, and comply with all local regulations. -
Page 20: Powering Devices In Parallel
To avoid intermittent communication blackouts, the isolation provided by the OpenBAS-ACC- RS485 module is highly recommended for noisy environments, and to prevent damage to the boards in extreme cases, especially if the OpenBAS-NWK-ETH3 device is inside an enclosure containing high voltage wiring. -
Page 21: Connecting Openbas-Nwk-Eth3 Or Openbas-Nwk-Ethxp To An Openbas-Hv-Nx10 Series Controller
SPI port as shown in section 4.5.1 • RS-485 as shown in section 4.5.2 (OpenBAS-NWK-ETH3 only) 4.5.1 SPI Port Connect the SPI port of OpenBAS-NWK-ETH3 or OpenBAS-NWK-ETHXP to the SPI port of the OpenBAS-HV-NX10 series controller with the included cable. Cat 5 cable OpenBAS-NWK-ETH3 OpenBAS-HV-NX10 Series Maximum 50 cm (20”) -
Page 22: Leds
• PWR: Is red when the unit is powered • TX1 and RX1 (OpenBAS-NWK-ETH3 only): Flash green to indicate communication through the COM1 port • TX2 and RX2 (OpenBAS-NWK-ETH3 only): Flash green to indicate communication through the COM2 port... -
Page 23: Specifications
Resettable fuse 1.1 A Battery: Type: CR2032 3 V - 3.3 V, maximum abnormal charging current: 10 mA Mircom part number: BT-007 Wiring Requirements: Twisted pair copper wire, 12-24AWG, stripped to 7-8mm and torqued to 0.5 Nm max. Communication Ports: 1 Ethernet port supporting the following protocols: •... -
Page 24: Master Warranty And Warning Information
In this document the term MGC System refers to all fire alarm, nurse call, and building automation products manufactured by Mircom Group of Companies, Mircom Technologies Ltd., MGC Systems Corp or subsidiaries and affiliates and includes specific systems such as MiCare™, OpenBAS™, and FlexNet™. - Page 25 Master Warranty and Warning Information System Users It is important that all system users be trained in the correct operation of the alarm system and that they know how to respond when the system indicates an alarm. A MGC System may not function as intended during an emergency situation where the user is unable to operate a panic or emergency switch by reason of permanent or temporary physical disability, inability to reach the device in time, unfamiliarity with the correct operation, or related circumstances.
- Page 26 Master Warranty and Warning Information not detect smoke or heat from fires on another level of the residence or building. In this situation the control panel may not alert occupants of a fire. Sensors in a nurse call system may fail to be triggered when movement is occurring outside of the motion sensors’...
- Page 27 Warranty Limited Warranty Mircom Technologies Ltd., MGC Systems Corp. and MGC System International Ltd. together with their subsidiaries and affiliates (collectively, MGC) warrants the original purchaser that for a period of three years from the date of manufacture, proprietary manufactured product shall be free of defects in materials and workmanship, under normal use.
- Page 28 Master Warranty and Warning Information Note: MGC’s liability for failure to repair the product under this warranty after a reasonable number of attempts will be limited to a replacement of the product, as the exclusive remedy for breach of warranty. Disclaimer of Warranties This warranty contains the entire warranty and shall be in lieu of any and all other warranties, whether expressed or implied (including all implied warranties of merchantability or fitness for...
-
Page 29: Special Notices
Special Notices This device complies with Part 15 / ICES-003 of the FCC / Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 30 TECHNICAL SUPPORT U.S.A CANADA - Main Office © Mircom 2017 25 Interchange Way North America 4575 Witmer Industrial Estates Printed in Canada Subject to change without prior notice Tel: (888) Mircom5 Niagara Falls, NY 14305 Vaughan, ON L4K 5W3 Tel: (888) 660-4655...
