3. Install the communication converter.

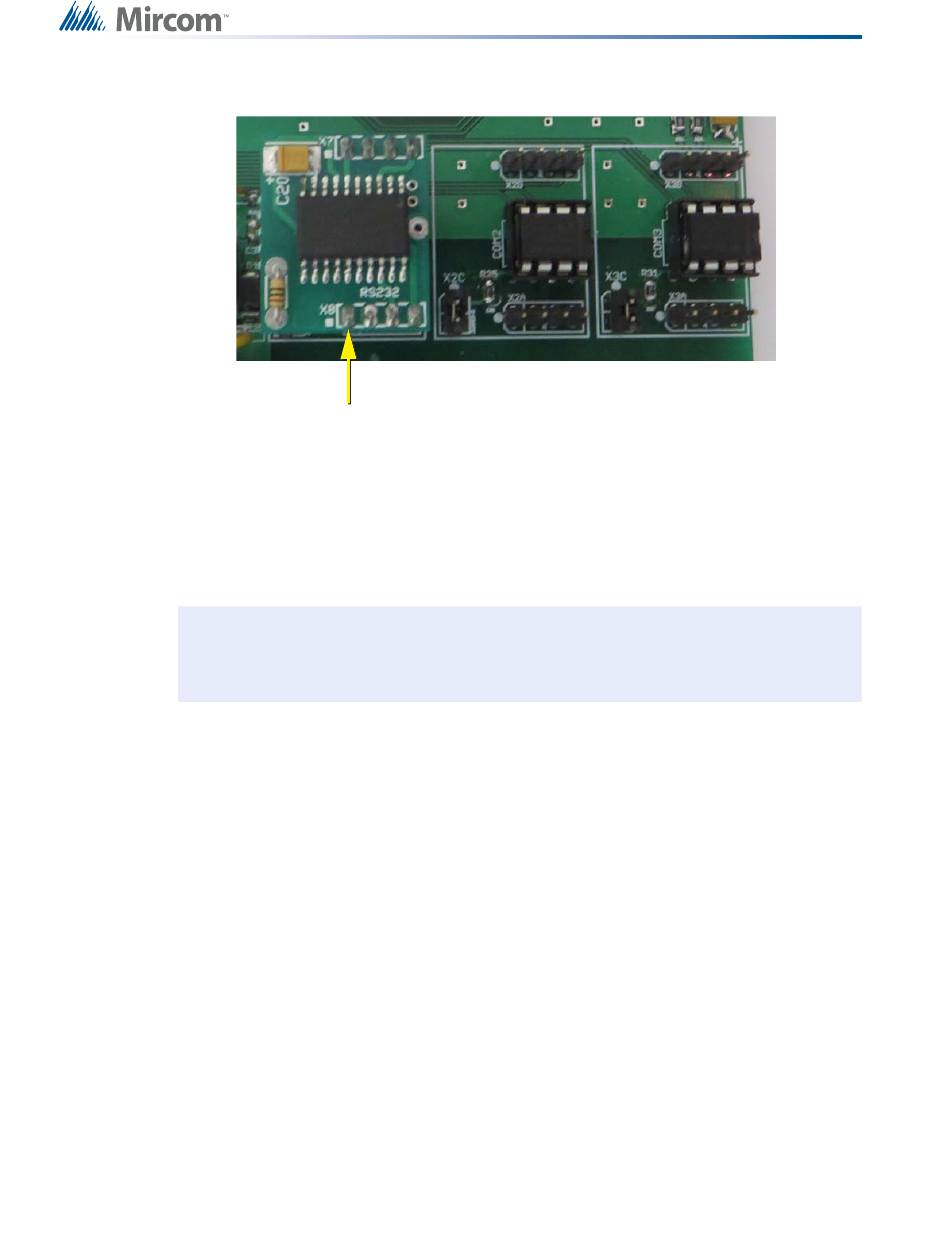

Figure 8
3.3.2 Memory Expansion Card (OBS-ACC-32K128) and Wireless Receiver
(OpenBAS-HV-RF433R)
Connect the memory expansion cards to either one of the two terminals shown in Figure 9.
They are labeled I2C and I2CB.
i
Note:
16 (45)
OpenBAS-ACC-RS232
OpenBAS-ACC-RS232 is installed in P1
When connecting the I2C ports on 2 devices, make sure to connect pin 1 on the
first device to pin 1 on the second device. Pin 1 is marked by a dot or a "1".
Installation
