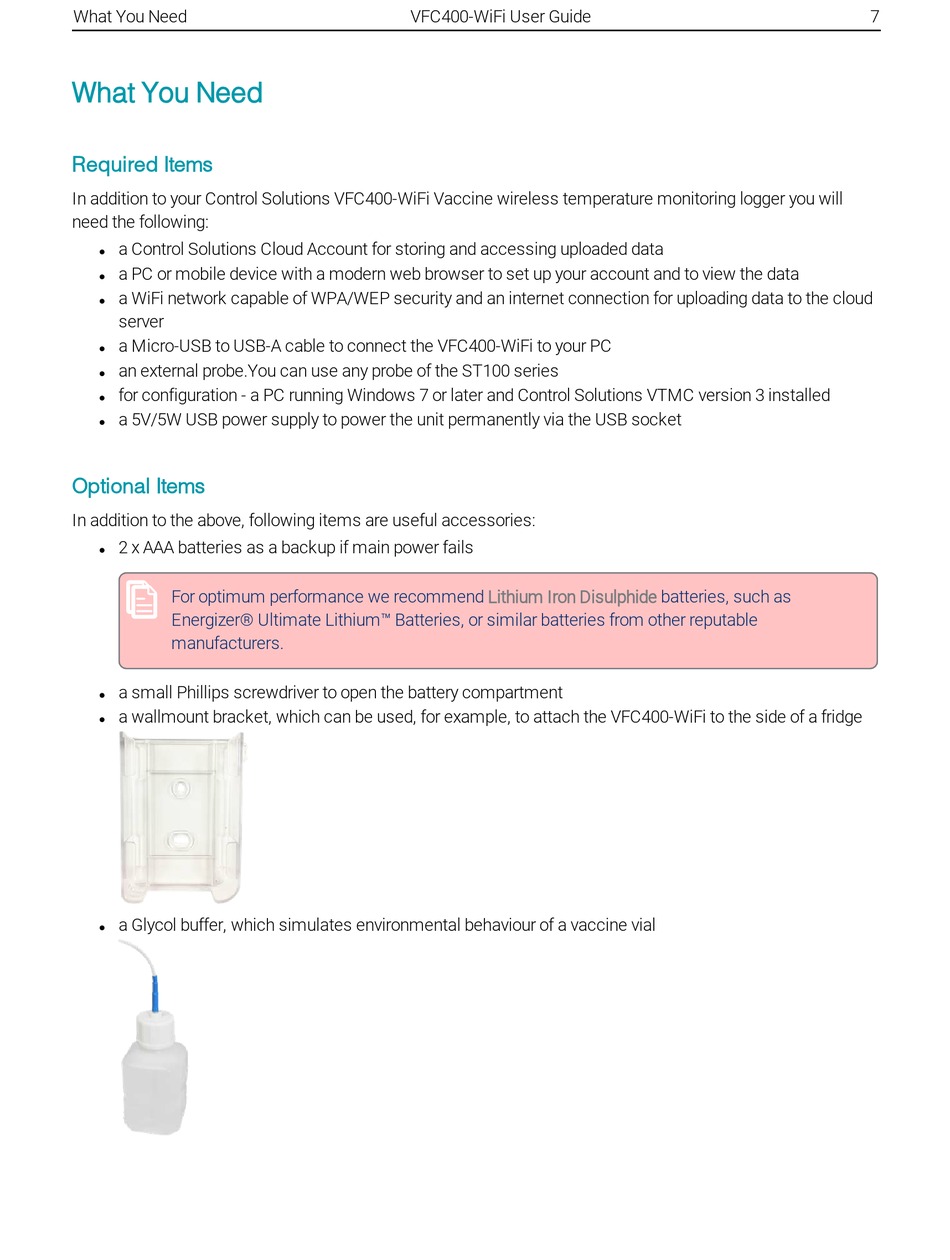

What You Need

What You Need

Required Items

In addition to your Control Solutions VFC400-WiFi Vaccine wireless temperature monitoring logger you will
need the following:
a Control Solutions Cloud Account for storing and accessing uploaded data
l
a PC or mobile device with a modern web browser to set up your account and to view the data
l
a WiFi network capable of WPA/WEP security and an internet connection for uploading data to the cloud
l
server
a Micro-USB to USB-A cable to connect the VFC400-WiFi to your PC
l
an external probe.You can use any probe of the ST100 series
l
for configuration - a PC running Windows 7 or later and Control Solutions VTMC version 3 installed
l
a 5V/5W USB power supply to power the unit permanently via the USB socket
l

Optional Items

In addition to the above, following items are useful accessories:
2 x AAA batteries as a backup if main power fails
l
For optimum performance we recommend
Energizer® Ultimate Lithium™ Batteries, or similar batteries from other reputable
manufacturers.
a small Phillips screwdriver to open the battery compartment
l
a wallmount bracket, which can be used, for example, to attach the VFC400-WiFi to the side of a fridge
l
a Glycol buffer, which simulates environmental behaviour of a vaccine vial
l
VFC400-WiFi User Guide
Lithium Iron Disulphide
batteries, such as
7
