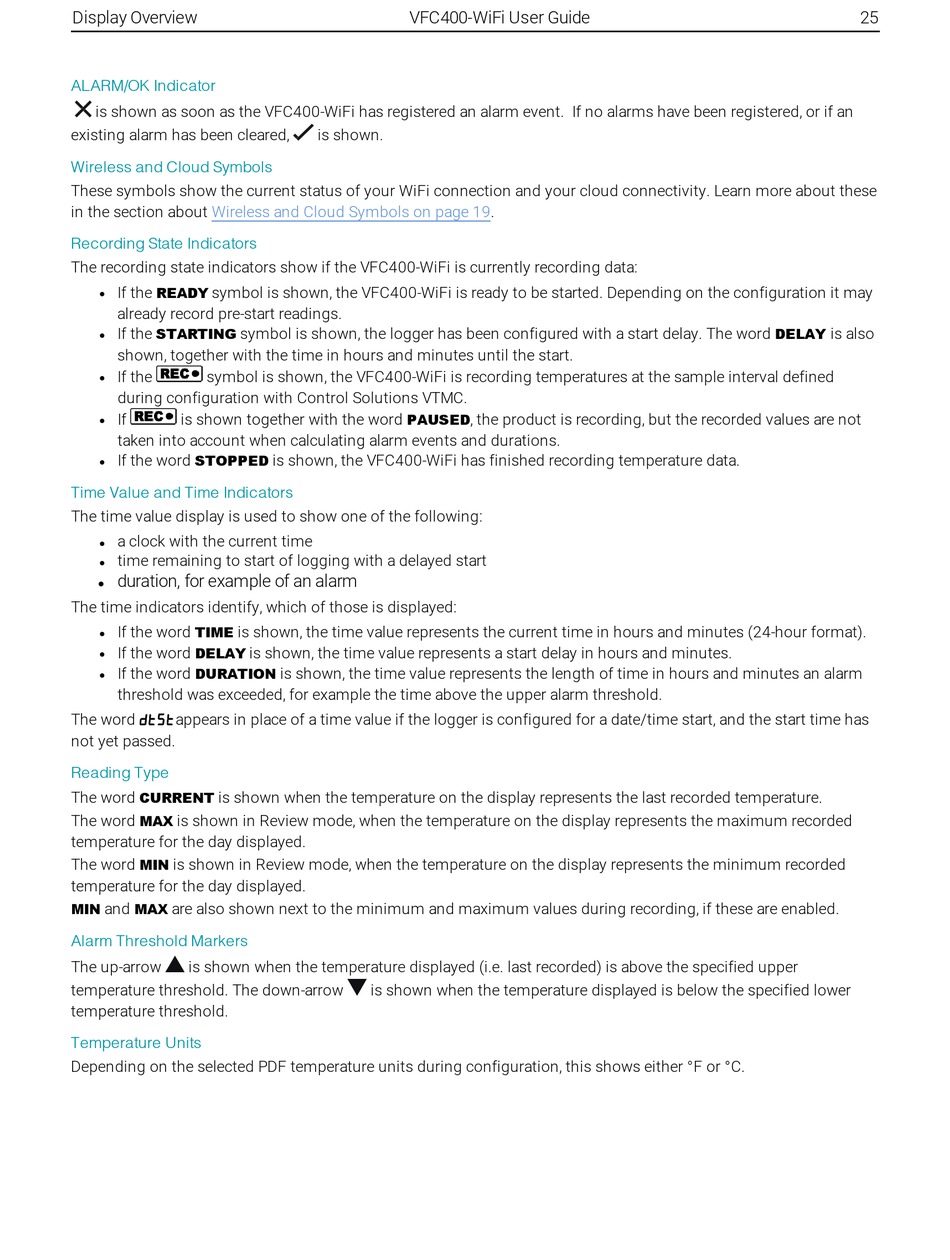

Display Overview
ALARM/OK Indicator
is shown as soon as the VFC400-WiFi has registered an alarm event. If no alarms have been registered, or if an
existing alarm has been cleared,
Wireless and Cloud Symbols
These symbols show the current status of your WiFi connection and your cloud connectivity. Learn more about these
in the section about Wireless and Cloud Symbols on
Recording State Indicators
The recording state indicators show if the VFC400-WiFi is currently recording data:
If the symbol is shown, the VFC400-WiFi is ready to be started. Depending on the configuration it may
READY
l
already record pre-start readings.
If the symbol is shown, the logger has been configured with a start delay. The word
STARTING
l
shown, together with the time in hours and minutes until the start.
If the symbol is shown, the VFC400-WiFi is recording temperatures at the sample interval defined
l
during configuration with Control Solutions VTMC.
If is shown together with the word
l
taken into account when calculating alarm events and durations.
If the word
STOPPED
l
Time Value and Time Indicators
The time value display is used to show one of the following:
a clock with the current time
l
time remaining to start of logging with a delayed start
l
duration, for example of an alarm
l
The time indicators identify, which of those is displayed:
If the word is shown, the time value represents the current time in hours and minutes (24-hour format).
TIME
l
If the word is shown, the time value represents a start delay in hours and minutes.
DELAY
l
If the word
DURATION
l
threshold was exceeded, for example the time above the upper alarm threshold.
The word dtstappears in place of a time value if the logger is configured for a date/time start, and the start time has
not yet passed.
Reading Type
The word is shown when the temperature on the display represents the last recorded temperature.
CURRENT
The word is shown in Review mode, when the temperature on the display represents the maximum recorded
MAX
temperature for the day displayed.
The word is shown in Review mode, when the temperature on the display represents the minimum recorded
MIN
temperature for the day displayed.
and are also shown next to the minimum and maximum values during recording, if these are enabled.
MIN MAX
Alarm Threshold Markers
The up-arrow is shown when the temperature displayed (i.e. last recorded) is above the specified upper
temperature threshold. The down-arrow
temperature threshold.
Temperature Units
Depending on the selected PDF temperature units during configuration, this shows either °F or °C.
