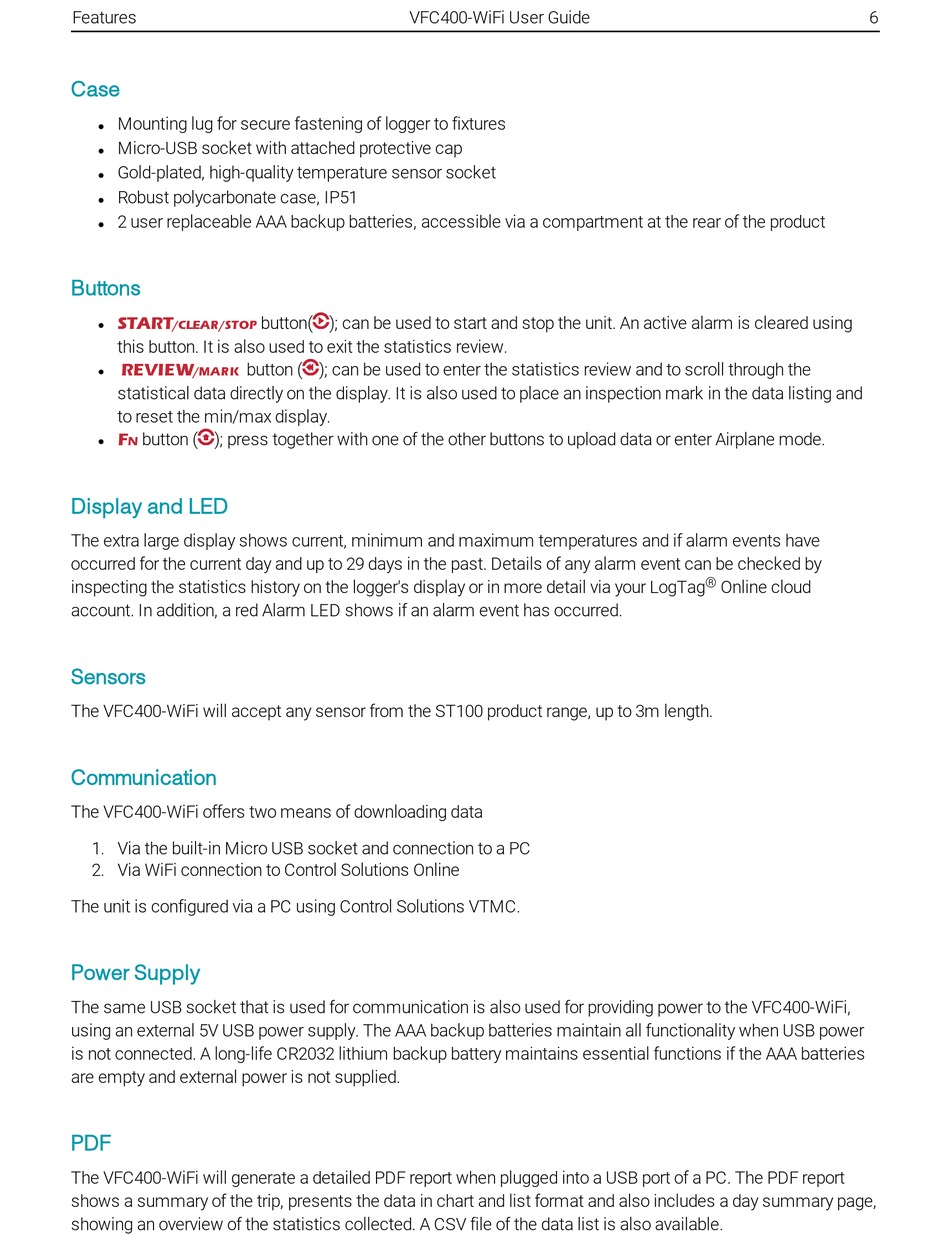

Features

Case

Mounting lug for secure fastening of logger to fixtures
l
Micro-USB socket with attached protective cap
l
Gold-plated, high-quality temperature sensor socket
l
Robust polycarbonate case, IP51
l
2 user replaceable AAA backup batteries, accessible via a compartment at the rear of the product
l

Buttons

START
/CLEAR/STOP
l
this button. It is also used to exit the statistics review.
button ( ); can be used to enter the statistics review and to scroll through the
REVIEW
/MARK
l
statistical data directly on the display. It is also used to place an inspection mark in the data listing and
to reset the min/max display.
button ( ); press together with one of the other buttons to upload data or enter Airplane mode.
F
N
l

Display and LED

The extra large display shows current, minimum and maximum temperatures and if alarm events have
occurred for the current day and up to 29 days in the past. Details of any alarm event can be checked by
inspecting the statistics history on the logger's display or in more detail via your LogTag
account. In addition, a red Alarm LED shows if an alarm event has occurred.

Sensors

The VFC400-WiFi will accept any sensor from the ST100 product range, up to 3m length.

Communication

The VFC400-WiFi offers two means of downloading data
1. Via the built-in Micro USB socket and connection to a PC
2. Via WiFi connection to Control Solutions Online
The unit is configured via a PC using Control Solutions VTMC.

Power Supply

The same USB socket that is used for communication is also used for providing power to the VFC400-WiFi,
using an external 5V USB power supply. The AAA backup batteries maintain all functionality when USB power
is not connected. A long-life CR2032 lithium backup battery maintains essential functions if the AAA batteries
are empty and external power is not supplied.

PDF

The VFC400-WiFi will generate a detailed PDF report when plugged into a USB port of a PC. The PDF report
shows a summary of the trip, presents the data in chart and list format and also includes a day summary page,
showing an overview of the statistics collected. A CSV file of the data list is also available.
VFC400-WiFi User Guide
button( ); can be used to start and stop the unit. An active alarm is cleared using
6
®
Online cloud
