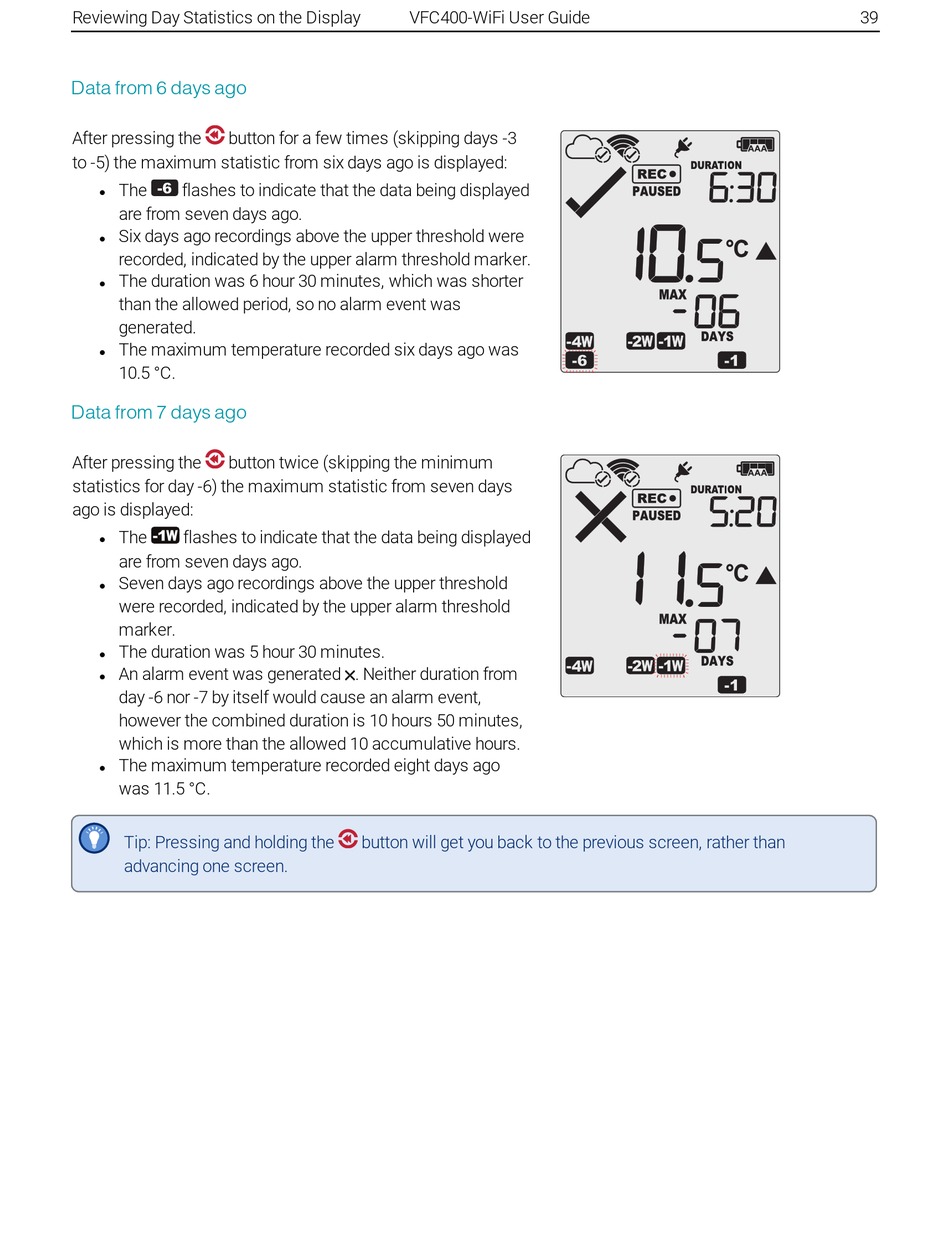

Reviewing Day Statistics on the Display
Data from 6 days ago
After pressing the
button for a few times (skipping days -3
to -5) the maximum statistic from six days ago is displayed:

The
flashes to indicate that the data being displayed
l
are from seven days ago.

Six days ago recordings above the upper threshold were
l
recorded, indicated by the upper alarm threshold marker.

The duration was 6 hour 30 minutes, which was shorter
l
than the allowed period, so no alarm event was
generated.

The maximum temperature recorded six days ago was
l
10.5 °C.
Data from 7 days ago
After pressing the
button twice (skipping the minimum
statistics for day -6) the maximum statistic from seven days
ago is displayed:

The
flashes to indicate that the data being displayed
l
are from seven days ago.

Seven days ago recordings above the upper threshold
l
were recorded, indicated by the upper alarm threshold
marker.

The duration was 5 hour 30 minutes.
l

An alarm event was generated . Neither duration from
l
day -6 nor -7 by itself would cause an alarm event,
however the combined duration is 10 hours 50 minutes,
which is more than the allowed 10 accumulative hours.

The maximum temperature recorded eight days ago
l
was 11.5 °C.
Tip: Pressing and holding the
advancing one screen.
VFC400-WiFi User Guide
button will get you back to the previous screen, rather than
39
