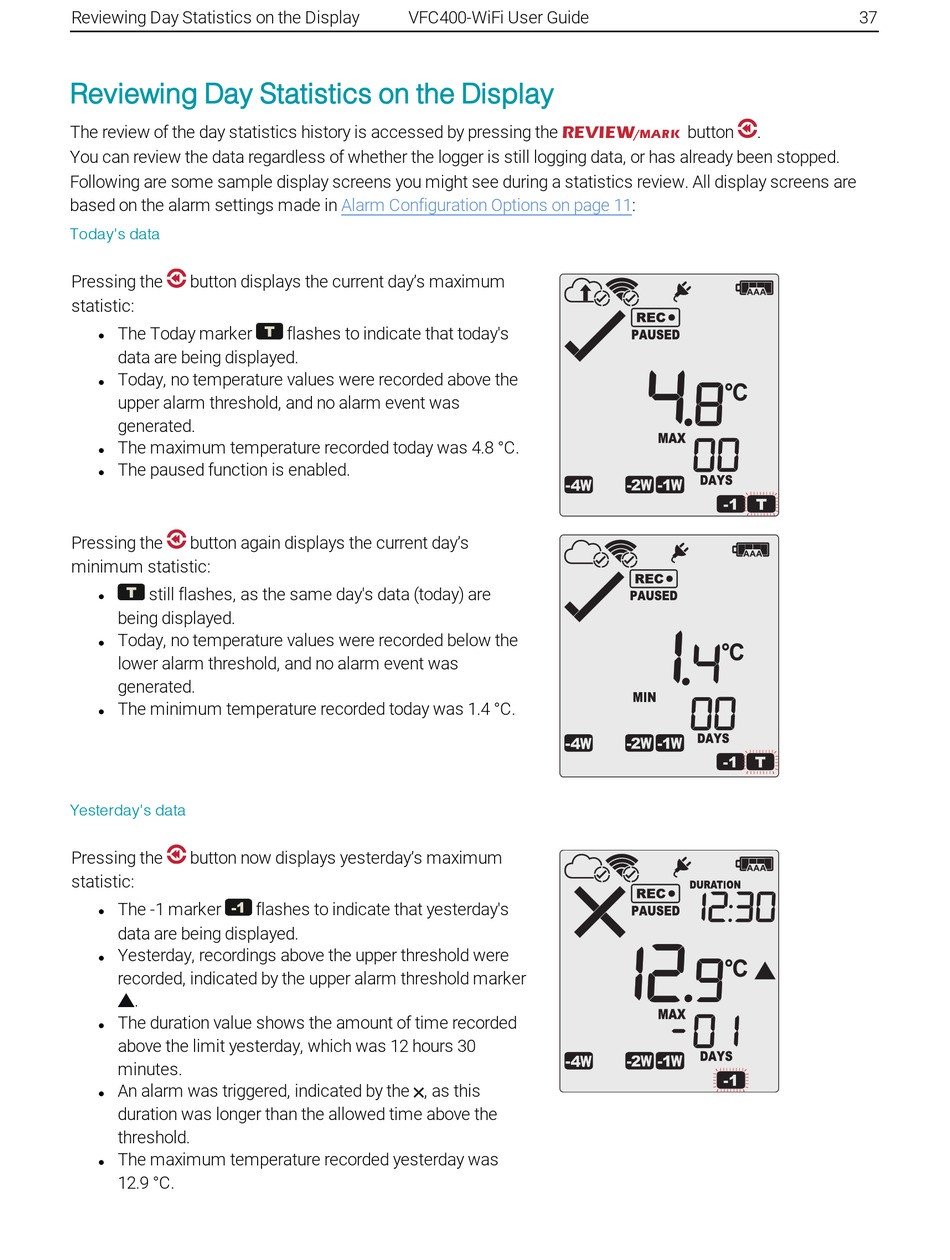

Reviewing Day Statistics on the Display

Reviewing Day Statistics on the Display
The review of the day statistics history is accessed by pressing the
You can review the data regardless of whether the logger is still logging data, or has already been stopped.
Following are some sample display screens you might see during a statistics review. All display screens are
based on the alarm settings made in
Today's data
Pressing the button displays the current day's maximum
statistic:
The Today marker
l
data are being displayed.
Today, no temperature values were recorded above the
l
upper alarm threshold, and no alarm event was
generated.
The maximum temperature recorded today was 4.8 °C.
l
The paused function is enabled.
l
Pressing the button again displays the current day's
minimum statistic:
still flashes, as the same day's data (today) are
l
being displayed.
Today, no temperature values were recorded below the
l
lower alarm threshold, and no alarm event was
generated.
The minimum temperature recorded today was 1.4 °C.
l
Yesterday's data
Pressing the button now displays yesterday's maximum
statistic:
The -1 marker
l
data are being displayed.
Yesterday, recordings above the upper threshold were
l
recorded, indicated by the upper alarm threshold marker
.
The duration value shows the amount of time recorded
l
above the limit yesterday, which was 12 hours 30
minutes.
An alarm was triggered, indicated by the , as this
l
duration was longer than the allowed time above the
threshold.
The maximum temperature recorded yesterday was
l
12.9 °C.
VFC400-WiFi User Guide
Alarm Configuration Options on
flashes to indicate that today's
flashes to indicate that yesterday's
button
REVIEW
/MARK
page 11:
37
.
