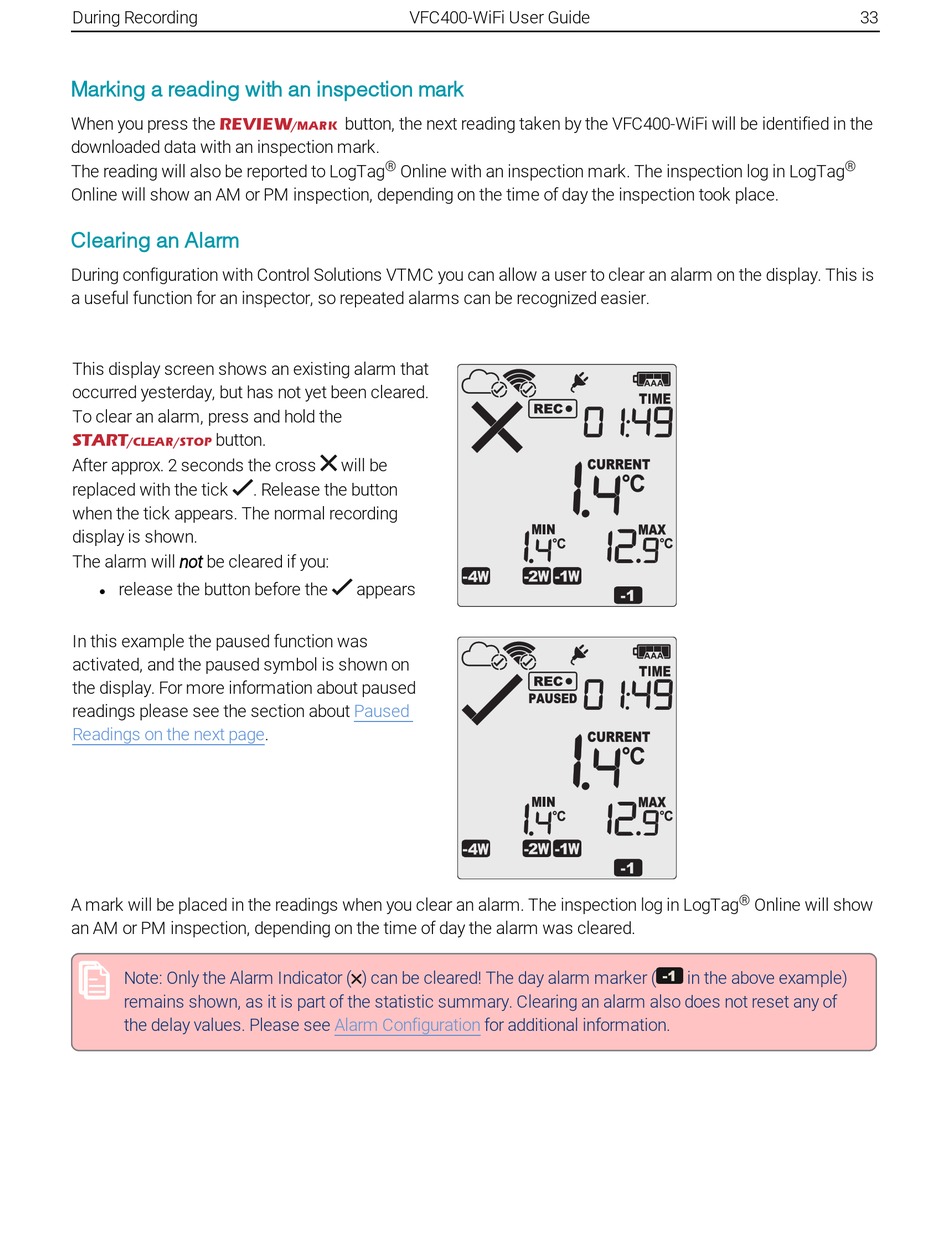

Marking A Reading With An Inspection Mark; Clearing An Alarm - CONTROL SOLUTIONS LogTag VFC400-WiFi Product User Manual

During Recording

Marking a reading with an inspection mark

When you press the
REVIEW
downloaded data with an inspection mark.
The reading will also be reported to LogTag
Online will show an AM or PM inspection, depending on the time of day the inspection took place.

Clearing an Alarm

During configuration with Control Solutions VTMC you can allow a user to clear an alarm on the display. This is
a useful function for an inspector, so repeated alarms can be recognized easier.
This display screen shows an existing alarm that
occurred yesterday, but has not yet been cleared.
To clear an alarm, press and hold the
button.
START
/CLEAR/STOP
After approx. 2 seconds the cross
replaced with the tick
when the tick appears. The normal recording
display is shown.
The alarm will not be cleared if you:
release the button before the
l
In this example the paused function was
activated, and the paused symbol is shown on
the display. For more information about paused
readings please see the section about
Readings on the next page.
A mark will be placed in the readings when you clear an alarm. The inspection log in LogTag
an AM or PM inspection, depending on the time of day the alarm was cleared.
Note: Only the Alarm Indicator ( ) can be cleared! The day alarm marker (
remains shown, as it is part of the statistic summary. Clearing an alarm also does not reset any of
the delay values. Please see
VFC400-WiFi User Guide
button, the next reading taken by the VFC400-WiFi will be identified in the
/MARK
®
Online with an inspection mark. The inspection log in LogTag
will be
. Release the button
appears
Paused
Alarm Configuration for additional information.
33
®
®
Online will show
in the above example)
