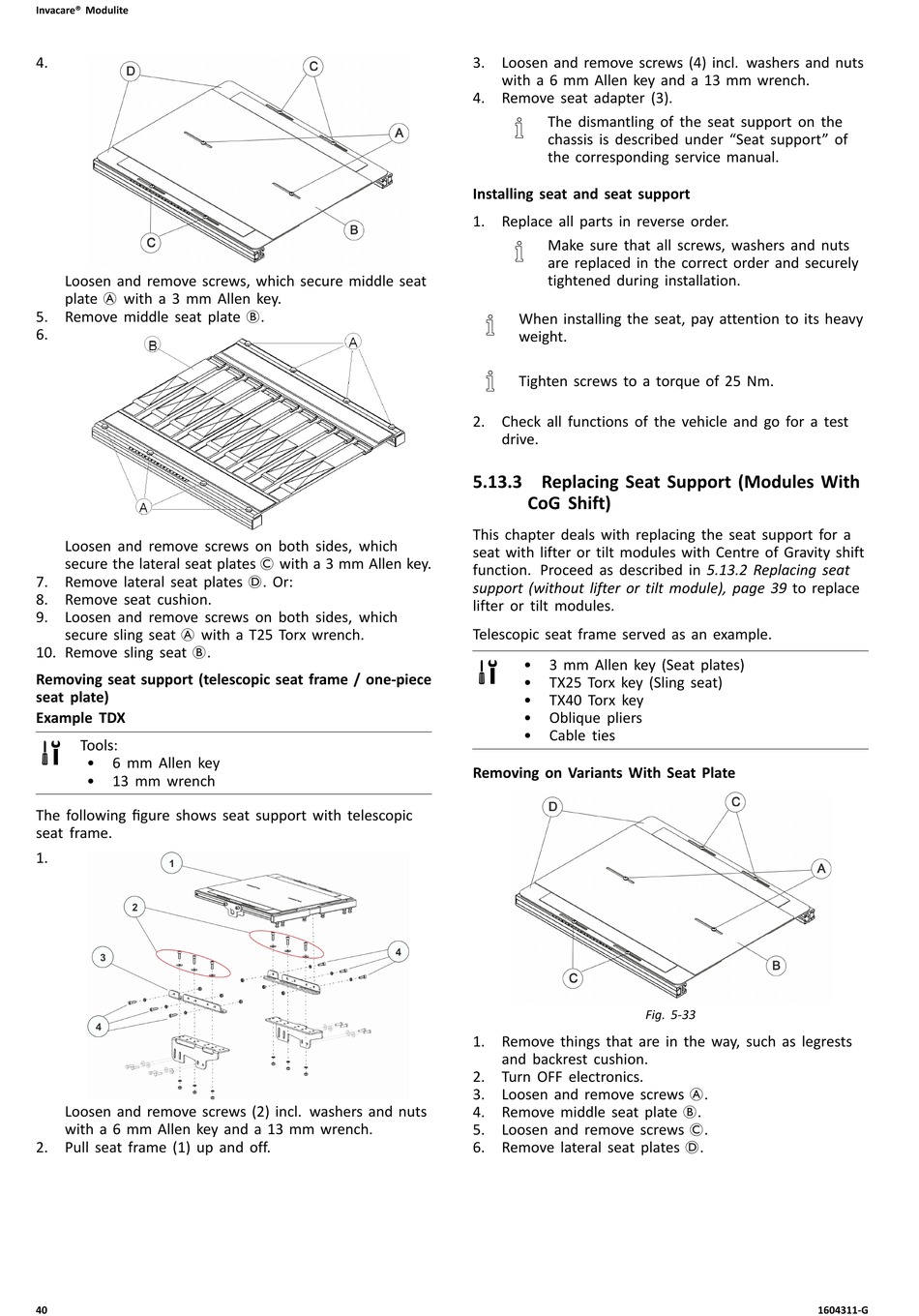

Invacare® Modulite
4.
Loosen and remove screws, which secure middle seat
plate A with a 3 mm Allen key.
5. Remove middle seat plate B.
6.
Loosen and remove screws on both sides, which
secure the lateral seat plates C with a 3 mm Allen key.
7. Remove lateral seat plates D. Or:
8. Remove seat cushion.
9. Loosen and remove screws on both sides, which
secure sling seat A with a T25 Torx wrench.
10. Remove sling seat B.
Removing seat support (telescopic seat frame / one-piece
seat plate)
Example TDX
Tools:
• 6 mm Allen key
• 13 mm wrench
The following figure shows seat support with telescopic
seat frame.
1.
Loosen and remove screws (2) incl. washers and nuts
with a 6 mm Allen key and a 13 mm wrench.
2. Pull seat frame (1) up and off.
40
3. Loosen and remove screws (4) incl. washers and nuts
with a 6 mm Allen key and a 13 mm wrench.
4. Remove seat adapter (3).
The dismantling of the seat support on the
chassis is described under "Seat support" of
the corresponding service manual.
Installing seat and seat support
1. Replace all parts in reverse order.
Make sure that all screws, washers and nuts
are replaced in the correct order and securely
tightened during installation.
When installing the seat, pay attention to its heavy
weight.
Tighten screws to a torque of 25 Nm.
2. Check all functions of the vehicle and go for a test
drive.
5.13.3 Replacing Seat Support (Modules With
CoG Shift)
This chapter deals with replacing the seat support for a
seat with lifter or tilt modules with Centre of Gravity shift
function. Proceed as described in 5.13.2 Replacing seat
support (without lifter or tilt module), page 39 to replace
lifter or tilt modules.
Telescopic seat frame served as an example.
• 3 mm Allen key (Seat plates)
• TX25 Torx key (Sling seat)
• TX40 Torx key
• Oblique pliers
• Cable ties
Removing on Variants With Seat Plate
Fig. 5-33
1. Remove things that are in the way, such as legrests
and backrest cushion.
2. Turn OFF electronics.
3. Loosen and remove screws A.
4. Remove middle seat plate B.
5. Loosen and remove screws C.
6. Remove lateral seat plates D.
1604311-G
