1. Loosen and remove handscrew A.
2.
Curved side of adapter must face away from
backrest frame.
Install adapter:
• Backrest plates: Insert adapter B into slot of
backrest plate C.
• Tension-adjustable backrest: Insert upper adapter
B and lower adapter E into slot until it clicks.
3. Insert Elan headrest tube D into adapter.
4. Attach and tighten handscrew A.

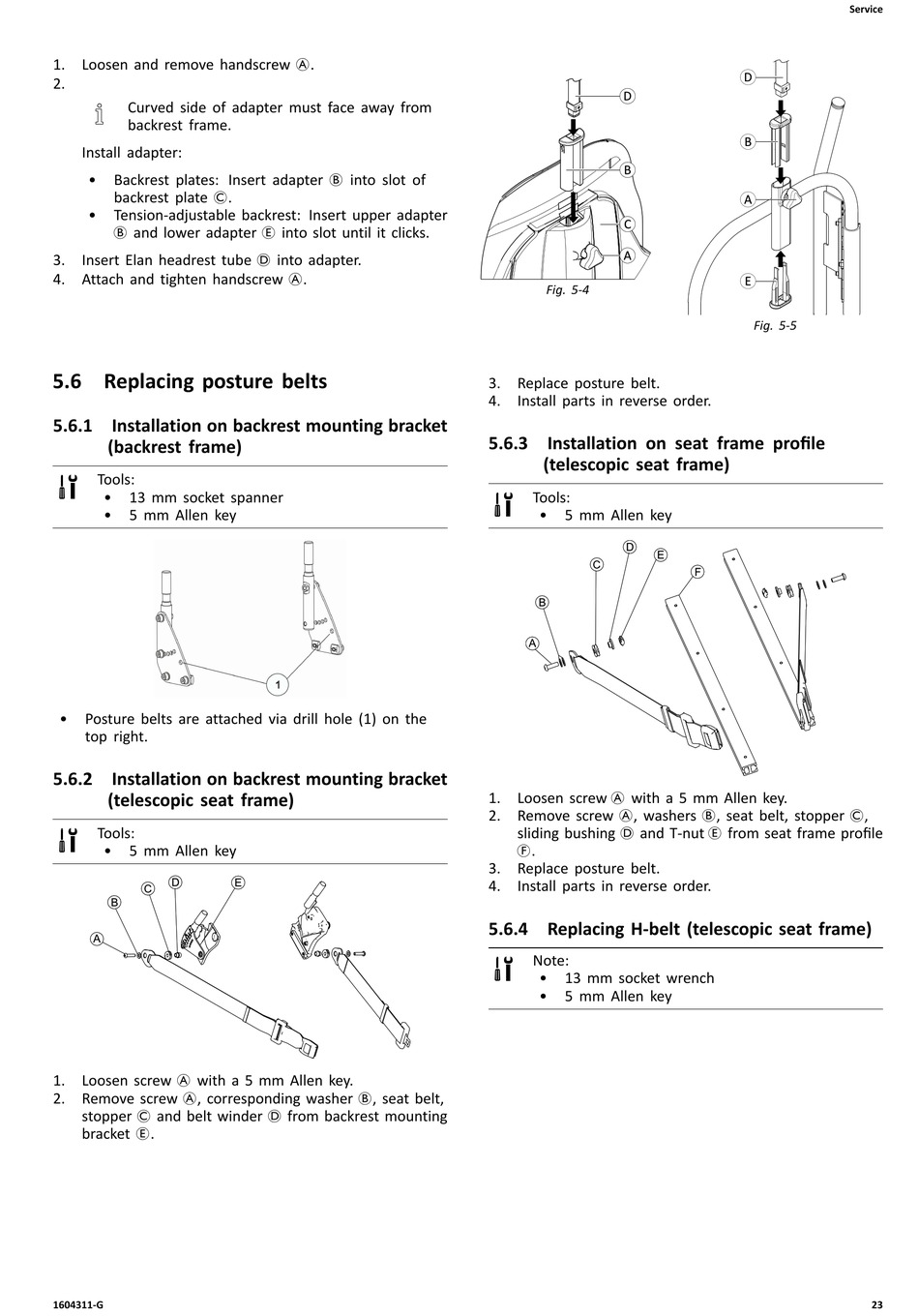

5.6 Replacing posture belts

5.6.1 Installation on backrest mounting bracket

(backrest frame)
Tools:
• 13 mm socket spanner
• 5 mm Allen key
• Posture belts are attached via drill hole (1) on the
top right.
5.6.2 Installation on backrest mounting bracket

(telescopic seat frame)

Tools:
• 5 mm Allen key
1. Loosen screw A with a 5 mm Allen key.
2. Remove screw A, corresponding washer B, seat belt,
stopper C and belt winder D from backrest mounting
bracket E.
1604311-G
Fig. 5-4
3. Replace posture belt.
4. Install parts in reverse order.

5.6.3 Installation on seat frame profile

(telescopic seat frame)
Tools:
• 5 mm Allen key
1. Loosen screw A with a 5 mm Allen key.
2. Remove screw A, washers B, seat belt, stopper C,
sliding bushing D and T-nut E from seat frame profile
F.
3. Replace posture belt.
4. Install parts in reverse order.

5.6.4 Replacing H-belt (telescopic seat frame)

Note:
• 13 mm socket wrench
• 5 mm Allen key
Service
Fig. 5-5
