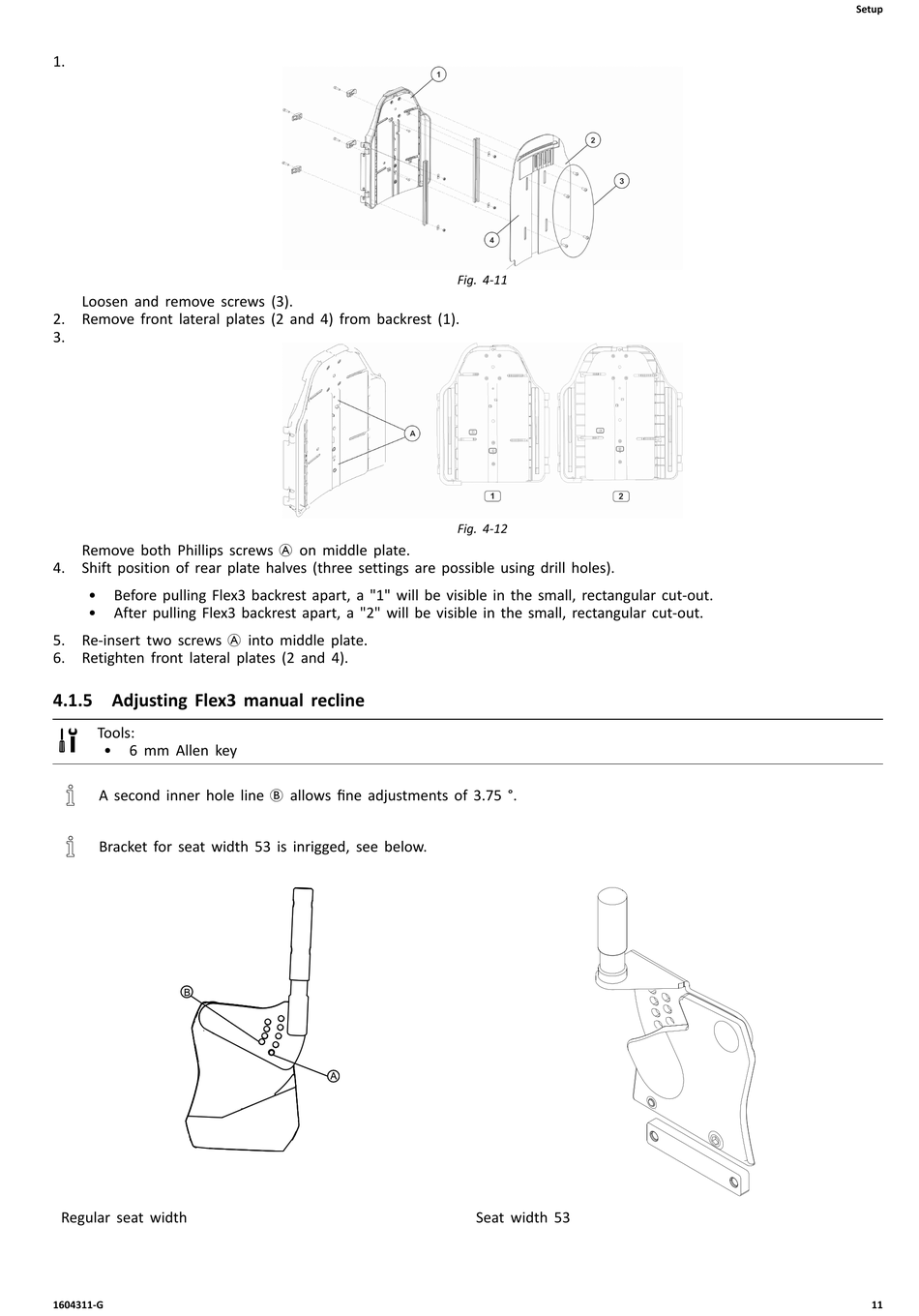

Adjusting Flex3 Manual Recline - Invacare Modulite Service Manual

1.
Loosen and remove screws (3).
2. Remove front lateral plates (2 and 4) from backrest (1).
3.
Remove both Phillips screws A on middle plate.
4. Shift position of rear plate halves (three settings are possible using drill holes).
• Before pulling Flex3 backrest apart, a "1" will be visible in the small, rectangular cut-out.
• After pulling Flex3 backrest apart, a "2" will be visible in the small, rectangular cut-out.
5. Re-insert two screws A into middle plate.
6. Retighten front lateral plates (2 and 4).

4.1.5 Adjusting Flex3 manual recline

Tools:
• 6 mm Allen key
A second inner hole line B allows fine adjustments of 3.75 °.
Bracket for seat width 53 is inrigged, see below.
Regular seat width
1604311-G
Fig. 4-11
Fig. 4-12
Seat width 53
