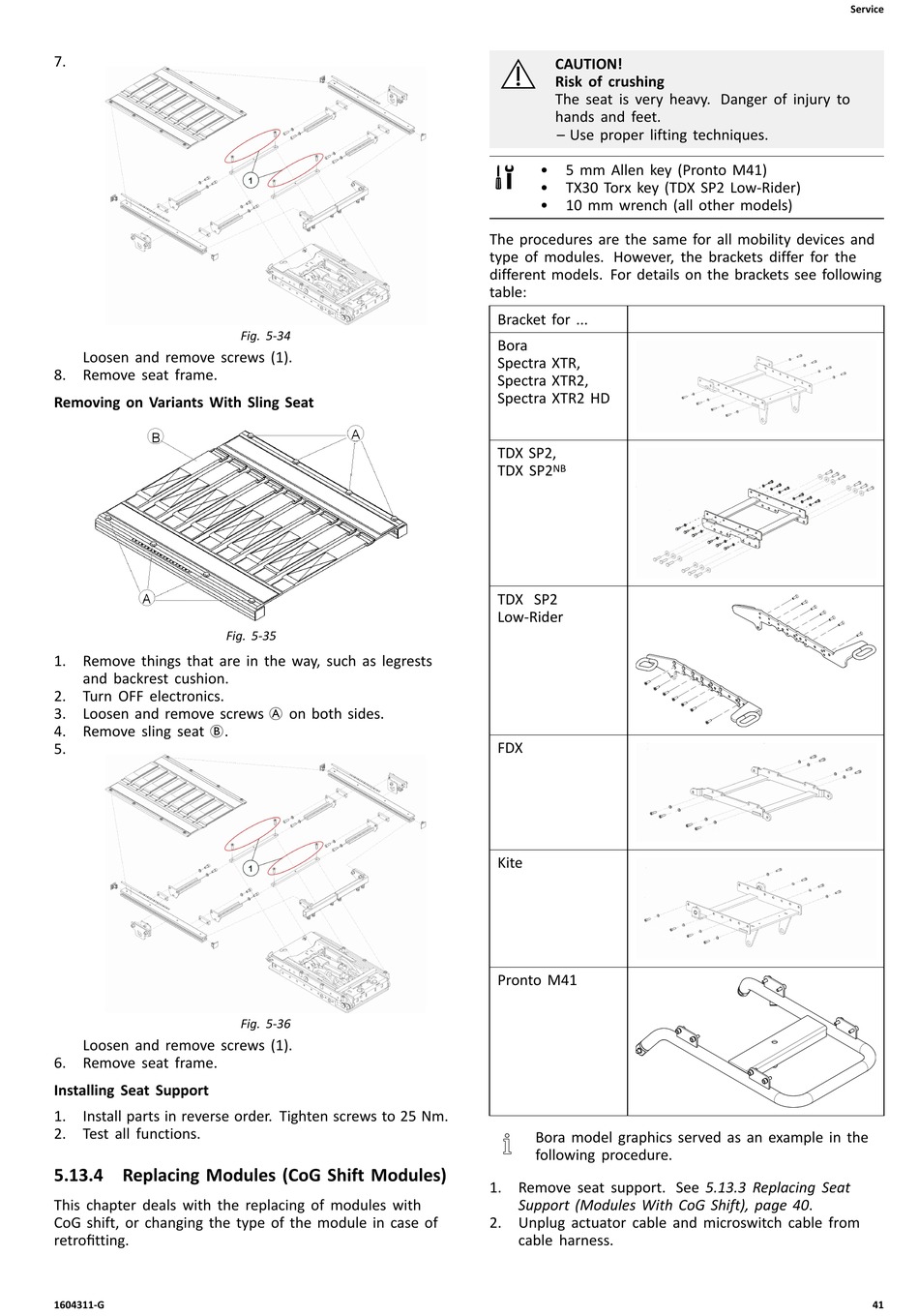

7.
Loosen and remove screws (1).
8. Remove seat frame.
Removing on Variants With Sling Seat
Fig. 5-35
1. Remove things that are in the way, such as legrests
and backrest cushion.
2. Turn OFF electronics.
3. Loosen and remove screws A on both sides.
4. Remove sling seat B.
5.
Loosen and remove screws (1).
6. Remove seat frame.
Installing Seat Support
1. Install parts in reverse order. Tighten screws to 25 Nm.
2. Test all functions.

5.13.4 Replacing Modules (CoG Shift Modules)

This chapter deals with the replacing of modules with
CoG shift, or changing the type of the module in case of
retrofitting.
1604311-G
Fig. 5-34
Fig. 5-36
CAUTION!
Risk of crushing
The seat is very heavy. Danger of injury to
hands and feet.
– Use proper lifting techniques.
• 5 mm Allen key (Pronto M41)
• TX30 Torx key (TDX SP2 Low-Rider)
• 10 mm wrench (all other models)
The procedures are the same for all mobility devices and
type of modules. However, the brackets differ for the
different models. For details on the brackets see following
table:
Bracket for ...
Bora
Spectra XTR,
Spectra XTR2,
Spectra XTR2 HD
TDX SP2,
TDX SP2 NB
TDX SP2
Low-Rider
FDX
Kite
Pronto M41
Bora model graphics served as an example in the
following procedure.
1. Remove seat support. See 5.13.3 Replacing Seat
Support (Modules With CoG Shift), page 40.
2. Unplug actuator cable and microswitch cable from
cable harness.
