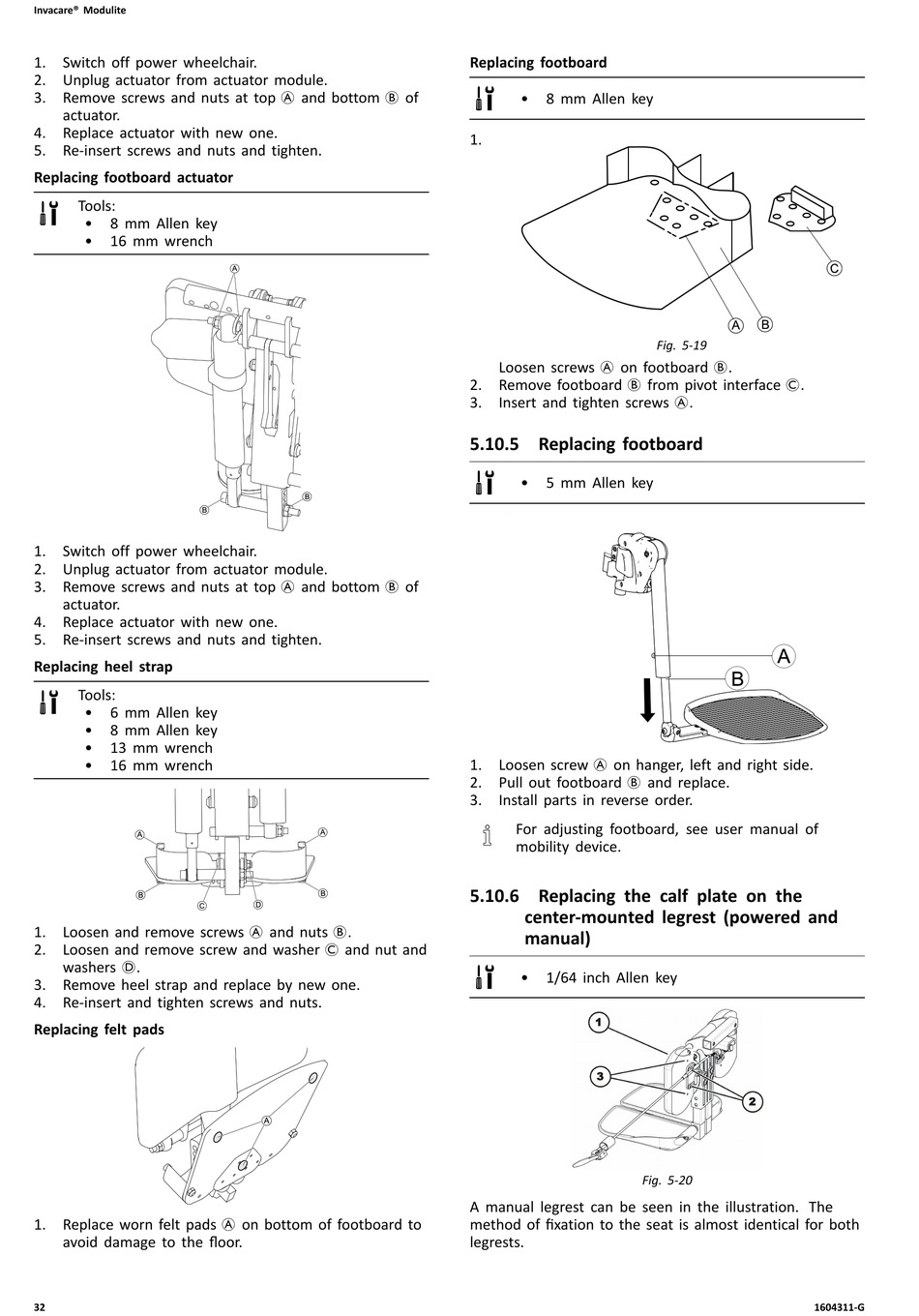

Replacing Footboard; Replacing The Calf Plate On The Center-Mounted Legrest (Powered And Manual) - Invacare Modulite Service Manual

Invacare® Modulite
1. Switch off power wheelchair.
2. Unplug actuator from actuator module.
3. Remove screws and nuts at top A and bottom B of
actuator.
4. Replace actuator with new one.
5. Re-insert screws and nuts and tighten.
Replacing footboard actuator
Tools:
• 8 mm Allen key
• 16 mm wrench
1. Switch off power wheelchair.
2. Unplug actuator from actuator module.
3. Remove screws and nuts at top A and bottom B of
actuator.
4. Replace actuator with new one.
5. Re-insert screws and nuts and tighten.
Replacing heel strap
Tools:
• 6 mm Allen key
• 8 mm Allen key
• 13 mm wrench
• 16 mm wrench
1. Loosen and remove screws A and nuts B.
2. Loosen and remove screw and washer C and nut and
washers D.
3. Remove heel strap and replace by new one.
4. Re-insert and tighten screws and nuts.
Replacing felt pads
1. Replace worn felt pads A on bottom of footboard to
avoid damage to the floor.
32

Replacing footboard

• 8 mm Allen key
1.
Loosen screws A on footboard B.
2. Remove footboard B from pivot interface C.
3. Insert and tighten screws A.
5.10.5 Replacing footboard
• 5 mm Allen key
1. Loosen screw A on hanger, left and right side.
2. Pull out footboard B and replace.
3. Install parts in reverse order.
For adjusting footboard, see user manual of
mobility device.
5.10.6 Replacing the calf plate on the
center-mounted legrest (powered and
manual)
• 1/64 inch Allen key
Fig. 5-20
A manual legrest can be seen in the illustration. The
method of fixation to the seat is almost identical for both
legrests.
Fig. 5-19
