This manual MUST be given to the user of the product.

BEFORE using this product, this manual MUST be read and saved for
future reference.

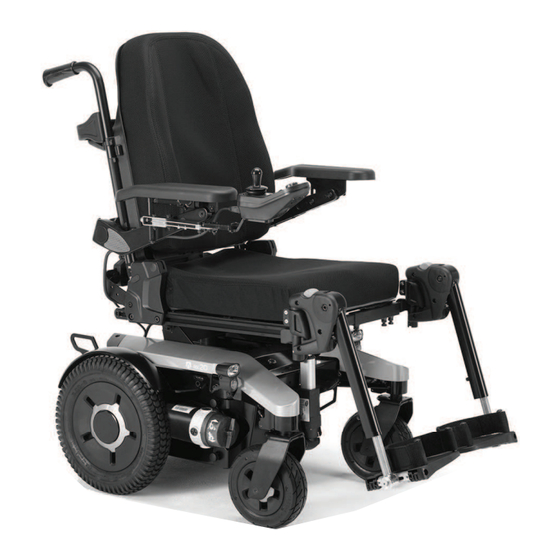

Invacare® AVIVA™ RX Series
AVIVA RX20, AVIVA RX40, AVIVA RX 40HD

Power Wheelchair
en
User Manual












Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVIVA RX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Invacare AVIVA RX Series

  • Page 1 Invacare® AVIVA™ RX Series AVIVA RX20, AVIVA RX40, AVIVA RX 40HD   Power Wheelchair User Manual                           This manual MUST be given to the user of the product.   BEFORE using this product, this manual MUST be read and saved for...
  • Page 2: Table Of Contents

    All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
  • Page 3 5.6    Taking Obstacles 8.2    Inspection Checks 5.6.1    Maximum Obstacle Height 8.2.1    Before Each Use of Power Wheelchair 5.6.2    Correct Way to Take Obstacles 8.2.2    Weekly 5.7    Driving up and down Gradients 8.2.3    Monthly 5.8    Use on Public Roads 8.3    Wheels and Tyres 5.9    Pushing the Power Wheelchair in Freewheel Mode 8.4    Short-Term Storage 5.9.1    Disengaging Motors 8.5    Long-Term Storage 8.6    Cleaning and Disinfection 6    Control System 8.6.1    General Safety Information 6.1    Control Protection System 8.6.2    Cleaning Intervals 6.1.1    Using Circuit Breaker 8.6.3    Cleaning 6.2    Batteries 8.6.4    Disinfection Instructions 6.2.1    General Information on Charging 6.2.2    General Instructions on Charging 9    After Use 6.2.3    Charging Batteries 9.1    Reconditioning 6.2.4    Disconnecting power wheelchair After Charging 9.2    Disposal 6.2.5    Storage and Maintenance 10    Technical Data 6.2.6    Instructions on Using Batteries 10.1    Technical Specifications 6.2.7    Cleaning Battery Terminals 11    Service 6.2.8    Transporting Batteries 11.1    Inspections Performed 6.2.9    General Instructions on Handling Batteries 6.2.10    Handling Damaged Batteries Correctly 7    Transport 7.1    Transport — General Information 7.2    Transferring Power Wheelchair to Vehicle...
  • Page 4: 1    General

    1    General For more information about the product, for example product safety  1    General notices and product recalls, contact your Invacare distributor. See  addresses at the end of this document. 1.1    Introduction In case of a serious incident with the product, you should inform the  manufacturer and the competent authority in your country. This user manual contains important information about the handling  of the product. To ensure safety when using the product, read the user  1.2    Symbols in This Manual manual carefully and follow the safety instructions. Only use this product if you have read and understood this manual.  Symbols and signal words are used in this manual and apply to hazards Seek additional advice from a healthcare professional who is familiar   or unsafe practices which could result in personal injury or property  with your medical condition and clarify any questions regarding the  damage. See the information below for definitions of the signal words. correct use and necessary adjustment with the healthcare  professional. DANGER! Indicates a hazardous situation that will result in serious  Note that there may be sections in this document, which are not  injury or death if it is not avoided. relevant to your product, since this document applies to all available  models (on the date of printing). If not otherwise stated, each section  in this document refers to all models of the product. WARNING! Indicates a hazardous situation that could result in serious  The models and configurations available in your country can be found  injury or death if it is not avoided. in the country-specific sales documents. Invacare reserves the right to alter product specifications without  CAUTION! further notice. Indicates a hazardous situation that could result in minor or  Before reading this document, make sure you have the latest version.  slight injury if it is not avoided. You find the latest version as a PDF on the Invacare website.
  • Page 5: Compliance

    Invacare® AVIVA™ RX Series Other Symbols  For further information about local standards and regulations, contact  (Not applicable for all manuals) your local Invacare distributor. See addresses at the end of this  document. UK Responsible Person Indicates if a product is not manufactured in the UK. 1.4    Usability Triman Only use a power wheelchair when it is in perfect working order.  Indicates recycling and sorting rules (only         r elevant for  Otherwise, you might put yourself and others at risk. France) The following list does not claim to be exhaustive. It is only intended to  1.3    Compliance show some of the situations that could affect the usability of your  power wheelchair. Quality is fundamental to the company’s operation, working within the  In certain situations, you should immediately stop using your power  disciplines of ISO 13485.  wheelchair. Other situations allow you to use the power wheelchair to  This product features the CE mark, in compliance with the Medical  get to your provider. Device Regulation 2017/745 Class I. You should immediately stop using your power wheelchair if  This product features the UKCA mark, in compliance with Part II UK  its usability is restricted due to: MDR 2002 (as amended) Class I.   Unexpected driving behaviour We are continuously working towards ensuring that the company’s ...
  • Page 6: Warranty Information

    1    General   cables that are damaged, kinked, pinched or have come loose  1.7    Limitation of Liability from the fixation   the power wheelchair drifting when braking Invacare accepts no liability for damage arising from:   the power wheelchair pulling to one side when moving   Non-compliance with the user manual   unusual sounds developing or occurring   Incorrect use   Natural wear and tear Or if you have the feeling that something is wrong with your power    Incorrect assembly or set-up by the purchaser or a third party wheelchair.   Technical modifications   Unauthorised modifications and/or use of unsuitable spare parts 1.5    Warranty Information We provide a manufacturer’s warranty for the product in accordance  with our General Terms and Conditions of Business in the respective  countries. Warranty claims can only be made through the provider from whom  the product was obtained. 1.6    Service Life We estimate a service life of five years for this product, provided it is  used in strict accordance with the intended use as set out in this  document and all maintenance and service requirements are met. The  estimated service life can be exceeded if the product is carefully used  and properly maintained, and provided technical and scientific  advances do not result in technical limitations. The service life can also ...
  • Page 7: 2    Safety

    2    Safety 2    Safety WARNING! Risk of Serious Injury or Damage 2.1    General Safety Notes Storing or using the power wheelchair near open flame         o r  combustible products can result in serious injury or damage. — Avoid storing or using the power wheelchair near open  WARNING! flame         o r combustible products. Risk of Serious Injury or Damage Improper use of this product may cause injury         o r damage. — If you are unable to understand the warnings,           c autions  WARNING! or instructions, contact a health care           p rofessional or  Risk of damage or injury if power wheelchair  ...
  • Page 8: Risk Of Death, Serious Injury Or Damage

    Invacare® AVIVA™ RX Series WARNING! medication or alcohol. If necessary, the power  Risk of Death, Serious Injury or Damage wheelchair must be operated by an attendant who is  Risk of entrapment and strangulation when loose personal  physically and mentally able. belongings (e.g. jewellery, scarfs) get caught by moving or  protruding parts. WARNING! — Make sure that any loose items are clear of moving parts  Risk of injury if the power wheelchair is switched off  of the power wheelchair, e.g. wheels or powered seating  while driving, for example by pressing the On/Off  components.         Button or disconnecting a cable, due to it coming to  — Keep your hands, clothing and all other objects away  an abrupt, sharp stop from wheels or powered seating components when they  — If you have to brake in an emergency, simply release the  are in operation. joystick which will bring you to a halt (refer to the  — Power off power wheelchair immediatley to stop any  remote user manual for more information). movement.         WARNING! WARNING! Risk of injury when transferring power wheelchair to ...
  • Page 9         CAUTION! Risk of injury from hot surfaces CAUTION! Risk of injury if maximum permissible load is  — Do not leave the power wheelchair in direct sunlight for  exceeded           prolonged periods. Metal parts and surfaces such as the  — Do not exceed the maximum permissible load (refer to  seat and armrests can become very hot. 10.1 Technical Specifications, page 58). — The power wheelchair is only designed for use by a  CAUTION! single occupant whose maximum weight does not  Risk of fire or breaking down due to electric devices  exceed the maximum permissible load of the device.  being connected Never use the power wheelchair to transport more than  — Do not connect any electric devices to your power  one person. wheelchair that are not expressly certified by Invacare  for this purpose. Have all electrical installations done by  your authorised Invacare provider.           1654649-F...
  • Page 10: Safety Information On The Electrical System

    Invacare® AVIVA™ RX Series — The NEGATIVE (-) BLACK battery         c able MUST connect to  2.2    Safety Information on the Electrical System the NEGATIVE (-) battery terminal(s) / post(s). — NEVER allow any of your tools and / or battery cable(s)  WARNING! to contact BOTH battery post(s) at the same time. An  Risk of death, serious injury or damage electrical short may occur and serious injury or damage  Misuse of the power wheelchair may cause the power  may occur.           wheelchair to start smoking, sparking, or burning. Death,  — Install protective caps on positive and negative battery  serious injury, or damage may occur due to fire. terminals.           — DO NOT use the power wheelchair other than its  — Replace cable(s) immediately if cable(s) insulation  intended purpose.          ...
  • Page 11: Safety Information On Electromagnetic Interference

    2    Safety WARNING! — When cables with live pins have to be disconnected, for  Risk of fire example, when removing the bus cable from the remote  Switched on lamps produce heat. If you cover the lamps  for safety reasons, make sure to restrain or cover the  with fabrics such as clothes, there is a risk that the fabric  pins (with non-conductive materials). may catch fire. — NEVER cover the light system with fabric. NOTICE! A failure in the electric system can lead to unusual behavior  WARNING! such as continuous light, no light, or noises from the  Risk of death, serious injury or damage when  magnetic brakes. carrying along oxygen systems — If a failure exists, switch off the remote and switch it on  Textiles and other materials that normally would not burn  again.           are easily ignited and burn with great intensity in oxygen  — If a failure still exists, then disconnect or remove the  enriched air. power source. Depending   o n the power wheelchair  — Check the oxygen tubing daily, from the cylinder to the  model, you can either remove the   b attery packs or  delivery site, for leaks and hold away from electrical ...
  • Page 12: Safety Information On Driving And Freewheel Mode

    Invacare® AVIVA™ RX Series Also, the electronics used in our power wheelchairs can generate a low  2.4      Safety  Information  on  Driving  and  level of electromagnetic interference, which however will remain  within the tolerance permitted by law. For these reasons we ask you to  Freewheel  Mode please observe the following precautions: DANGER! WARNING! Risk of death, serious injury, or damage Risk of malfunction due to electromagnetic  Malfunctioning joystick could cause unintended / erratic  interference movement resulting in death, serious injury, or damage — Do not switch on or operate portable transceivers or  — If unintended / erratic movement occurs, stop using the  communication devices (such as radio transceivers or  wheelchair immediately and contact a qualified  cellular phones) when the power wheelchair is switched  technician. on.                      ...
  • Page 13 2    Safety WARNING! — Never attempt to overcome an obstacle when on an  Risk of breaking down in adverse weather  uphill or downhill gradient. conditions, i.e. extreme cold, in an isolated area — Never attempt to drive up or down a flight of steps with  — If you are a user with severely limited mobility, we  your power wheelchair. advise that in the case of adverse weather conditions DO  — When overcoming obstacles, always observe the  NOT attempt a journey without an accompanying  maximum obstacle height and information about  attendant.           overcoming obstacles (refer to 5.6 Taking Obstacles, page 30).         — Avoid shifting your centre of gravity as well as abrupt  WARNING! joystick movements and changes of direction when the  Risk of injury if the power wheelchair tips over power wheelchair is in motion. — Inclines and declines can only be travelled up to the  — Never use the power wheelchair to transport more than  maximum safe slope (refer to 10.1 Technical one person.
  • Page 14: Safety Information With Regard To Care And Maintenance

    Invacare® AVIVA™ RX Series WARNING! WARNING! Risk of injury if you collide with an obstacle when  Risk of tipping driving through narrow passages such as doorways  Antitippers (stabilizers) are only effective on firm ground.  and entrances They sink in on soft ground such as grass, snow or mud if the  — Drive through narrow passages in the lowest driving  power wheelchair rests itself on them. They lose their effect  mode and with due caution. and the power wheelchair can tip over. — Only drive with extreme care on soft ground, especially  during uphill and downhill journeys. In the process pay  WARNING! increased attention to the tip stability of the power  Risk of injury wheelchair.           If your power wheelchair has been fitted with elevating  legrests, there is a risk of personal injury and damage to the  2.5    Safety Information With Regard to Care and  power wheelchair if you drive the power wheelchair with  the legrests raised. Maintenance — To avoid unwanted displacement of the power  wheelchair centre of gravity to the front (especially  WARNING! when travelling downhill) and in order to avoid damage  Risk of death, serious injury, or damage to the power wheelchair, elevating legrests must always ...
  • Page 15: Safety Information Regarding Changes And Modifications To The Power Wheelchair

    2    Safety   The CE marking is invalidated if components or accessories           /   CAUTION! options are replaced or added that have not been approved for  Risk of accident and loss of warranty if maintenance  this           p roduct by Invacare.         is insufficient   In this case, the company that adds or replaces the components           — For reasons of safety and in order to avoid accidents  or accessories / options is responsible for the conformity  which result from unnoticed wear, it is important that  assessment / CE           m arking or for registering the power wheelchair ...
  • Page 16: Safety Information On Power Wheelchairs With A Lifter

    Invacare® AVIVA™ RX Series circumstances, comply with the valid standards and could  — Please contact your Invacare specialist provider who will  increase the flammability and the risk of skin irritation. perform risk analyses, calculations, stability checks etc.  — Only use seating systems that have been approved by  to ensure that the backrest can be used safely. Invacare for this power wheelchair. Important information about maintenance         w ork tools Some maintenance work which is described in this manual         a nd  CAUTION! can be carried out by the user without problems require the  Risk of injuries and damage to power wheelchair due  correct         t ools for proper work. If you do not have the correct  to unapproved components and   a ccessories /  tool available         w e do not recommend that you try to carry out ...
  • Page 17 2    Safety CAUTION! — Inspect the lifter module at least once a month to make  Risk of malfunction of the lifter module sure the automatic speed reduction function, which  — Inspect the lifter module at regular intervals to make  reduces the speed of the power wheelchair when the  sure there are no foreign objects or visible damage, and  lifter is raised, is working properly (refer to the seating  to make sure the electric plugs are firmly inserted into  manual). Notify your authorised provider immediately if  their sockets. it is not working properly.           Important information regarding speed         r eduction with raised  CAUTION! lifter Damage to power wheelchair caused by one-sided  If the lifter has been raised above a certain point, the         d rive  loading on lifter pillar electronics considerably reduces the speed of the wheelchair.         —...
  • Page 18: 3    Product Overview

    3    Product Overview 3    Product Overview 3.2    Type Classification 3.1    Intended Use This vehicle has been classified according to EN 12184 as a class B  mobility product (for indoor and outdoor areas). It is therefore  3.1.1    Product Description compact and agile enough for indoor areas, but also able to overcome  many obstacles in outdoor areas. The AVIVA RX is a rear wheel drive power wheelchair that can be  established with a multitude of configurations. 3.3    Main Parts of Wheelchair 3.1.2    Intended User A Remote This power wheelchair was designed for adults and adolescents whose  ability to walk is impaired, but who are still in terms of their eyesight  B Legrests and physically and mentally able to operate an electric power  wheelchair. C Castor wheels 3.1.3    Indications D Drive wheels The use of this power wheelchair is recommended for the following  E Disengaging lever indications:   The inability or a greatly restricted ability to walk within the  F Push handle scope of the basic requirement to be able to move within one’s  own four walls. G Headrest (optional)  ...
  • Page 19: Labels On Product

    Invacare® AVIVA™ RX Series 3.4    Labels on Product If the power wheelchair is fitted with a tray, it is imperative that it is removed and safely stowed when  transporting the power wheelchair in a vehicle. The colour of the left and middle rectangles and cross bar is red.The colour of the right  rectangle is green. Identification of the tie-down points at the front and back: If the symbol appears on a bright yellow sticker, the anchoring point is suitable for fixation of the  power wheelchair in a vehicle for use as a vehicle seat. 1654649-F...
  • Page 20 3    Product Overview Warning that the power wheelchair may not be used as a vehicle seat. This power wheelchair does not satisfy the requirements of ISO 7176-19. The colour of the symbol background is blue on product labels. The colour of the circle with diagonal bar is red on product labels. Identification label sticker on the chassis at the right. For details see below. Warning regarding the use of the lifter. For details see below. The colour of the rectangles and diagonal bars is red on product labels. Identification of the position of the coupling lever for driving and push operation (only the right side  visible in the picture). For details see below. Indication of pinch points that could occur on the power wheelchair. The colour of the symbol background is yellow on product labels. Indication not to strain back with more than 6 kg. The colour of the symbol background is yellow on product labels. Identification of the ON/OFF position of the circuit breaker switch (on the left side of power  wheelchair). For details see below. Maximum speed label on the remote. The maximum speed is reduced to 3 km/h. The colour of the symbol background is red on product labels. 1654649-F...
  • Page 21: Explanation Of Symbols On Labels

    Invacare® AVIVA™ RX Series Explanation of Symbols on Labels Manufacturer Unique Device Identification Date of manufacture Battery type Medical device Factory setting European Conformity Serial number UK Conformity Assessed Maximum speed QR code contains link to user manual Rated slope Read the user manual Unladen weight WEEE Conformity Maximum user weight Do not drive up or down slopes when the lifter is  Do not lean out when the lifter is raised! raised! Do not allow any body parts to get under a raised  Never drive with two people! seat! Never drive over uneven surfaces when the lifter is raised! This symbol indicates the “Drive” position of the coupling lever. In this position the motor is engaged and the motor brakes are  operational.                 Y ou can drive the power wheelchair.  ...
  • Page 22 3    Product Overview This symbol indicates the “Push” position of the coupling lever. In this position the motor is disengaged and the motor brakes  are not operational. The power wheelchair can be pushed by an attendant                 a nd the wheels turn freely.   Note that the remote must be switched off.   Also refer to 5.9 Pushing the Power Wheelchair in Freewheel Mode , page 32. This symbol indicates the OFF position of the circuit breaker switch. In this position the battery source is isolated and the  power wheelchair cannot be operated or charged. This symbol indicates the ON position of the circuit breaker switch. In this position the battery source is connected and the  power wheelchair can be operated or charged. This symbol indicates the circuit breaker. Read the user manual. This symbol appears on different labels and positions. 1654649-F...
  • Page 23: User Inputs

    Invacare® AVIVA™ RX Series Speed limiter 3.5    User Inputs The speed limit reacts in different ways, depending on the  power wheelchair’s configuration. Your power wheelchair may be fitted with one of several different user    Either the lifter is fitted with sensors which reduce the  inputs. For information on the different functions and how to operate  power wheelchair’s speed as soon as the lifter is raised  a particular user input, refer to its corresponding user manual  (enclosed). above a certain point.   Or if the speed limit is activated, a reduced drive level  3.6    The Lifter (forced profile) is set automatically. Refer to the remote  manual for more information. The electric lifter is operated from the remote. Refer to the remote    The speed reduction takes place to guarantee the tipping  manual for more information. stability of the power wheelchair and to avoid personal  Information regarding operation of the lifter at temperatures  risk and damage to the power wheelchair. of less than 0 °C   To reapply normal speed, lower the lifter down until the    Invacare power wheelchairs are fitted with safety  forced profile or the speed reduction switches off.   mechanisms that prevent capacity overload of the  If the power wheelchair is fitted with a chin control, it  electronic components. At operating temperatures below  reacts different to forced profile. Refer to the manual of  freezing point this can, in particular, lead to the lifter ...
  • Page 24: 4    Accessories / Options

    4    Accessories / Options Belt with Plastic Buckle, Adjustable Both Sides 4    Accessories / Options 4.1    Posture Belts A posture belt is an option which can either be fixed to the power  wheelchair ex-works or can be retrofitted by your specialist provider. If  your power wheelchair is fitted with a posture belt, your specialist  provider will have informed you about fitting and usage. Belt can be adjusted on both sides. This means that the buckle can be  The posture belt is used to help the power wheelchair user keep an  centrally positioned. optimum seating position. Correct use of the belt assists the user in  sitting securely, comfortably and well-positioned in the power  Harness with Metal Buckle, Adjustable Both Sides wheelchair, especially for such users who do not have such a good  sense of balance while sitting. We recommend using the posture belt whenever the power  wheelchair is used. 4.1.1    Types of Posture Belts Your power wheelchair can be fitted with the following posture belt  types ex-works. If your power wheelchair has been fitted with a  different belt to those listed below, please ensure that you have  received the manufacturer's documentation with regard to correct  fitting and use. Belt with Metal Buckle, Adjustable Both Sides Harness can be adjusted on both sides. This ensures that the buckle is  always centrally positioned. Belt can be adjusted on both sides. This means that the buckle can be  centrally positioned. 1654649-F...
  • Page 25: Adjusting Posture Belt Correctly

                                   5.  Check your belt every week to ensure that it is still in good  working condition, to ensure it has no damage or wear, and that  it is fixed properly to power wheelchair. If belt is only fastened  with a bolted connection, ensure that connection has not  loosened or come undone. You can find more information about  maintenance work on belts in the service manual, which is  available trough Invacare.                                 4.2    Using Cane Holder If your power wheelchair is fitted with a cane holder, it can be used for  the safe transport of a walking cane, underarm or forearm crutches.  The cane holder consists of a plastic container (bottom) and a hook- and-loop fastener (top). 1654649-F...
  • Page 26: 5    Usage

    5    Usage Before each trip, make sure that: 5    Usage   You are within easy reach of all operating controls.   The battery charge is sufficient for the distance you intend to  5.1    General Setup Information travel.   The posture belt (if installed) is in perfect order. For more information about setup, see the user manual of the seating    The rear mirror (if installed) is adjusted so you can look behind at  system. all times without having to bend forward or shift your seating  position. 5.2    Driving 5.4    Parking and Stationary The maximum load capacity that is stated in the technical data  only states that the system is designed for this mass in total.  When parking your power wheelchair or if your power wheelchair is  However, this does not mean that one can sit a person with  stationary for a prolonged period: this body weight in the power wheelchair without restrictions.   1.  Switch the power wheelchair’s power system off (ON-/OFF         k ey).         Attention must be paid to the body proportions, such as  height, weight distribution, abdominal belt, leg and calf strap  5.4.1    Using Manual Wheel Locks and seat depth. These factors have a strong influence on  The power wheelchair is equipped with automatic brakes to prevent ...
  • Page 27: Getting In And Out Of Power Wheelchair

    Invacare® AVIVA™ RX Series 5.5.2    Swivelling Remote to Side 5.5    Getting in and out of Power Wheelchair If your power wheelchair is fitted with a swivelling remote holder, then  NOTICE! the remote can be moved away to the side, for example, to drive up  — The armrest must be removed or swiveled up in order to close to a table.  get into or out of the power wheelchair from the side.  Swing-Away Remote Holder 5.5.1    Removing Standard Armrest for Side Transfer This chapter relates to the standard armrest. For more  information about other armrests, see the user manual of the   1.  Push remote to swivel remote holder to the  seating system. side. Depending on version, the armrest is fixed with one of several fastener  options:     Clamping lever Locking pin     Hand screw Locking screw Maxx Resolve Swing-Away Remote Holder Depending on which side the remote is installed on, you need to  CAUTION! disconnect the remote cable before removing the armrest. Risk of Injury or Damage The graphic serves as example. Driving the power wheelchair and / or operating the power  positioning functions with the remote in the swing-away   1.  Pull plug A of remote cable to ...
  • Page 28 5    Usage Quad Link Remote Holder NOTICE! Applying excessive tension to the front of the remote when  WARNING! operating the swing-away mechanism may cause damage to  Risk of Pinch Points the internal belt-drive. — Make sure fingers are not between the linkage bars  — Gentle tension should be applied to the middle of the  when locking the Quad Link retractable remote mount  remote which is closer to the pivot point of the swing- into position. Pinch points will occur between the  away mechanism. The tension to operate the swing- linkage bars when locking the Quad Link into position. away mechanism can be set to fit the user’s needs,refer  to the chapter in the seating manual. NOTICE! Using the joystick to operate the swing away mechanism  causes damage to the joystick.           Swivel Remote to Side — Do not use the joystick to operate the swing-away   1.    mechanism.         To retract remote from normal extended position, push outward  on inside surface of remote until Quad Link is free.  1.  Push middle of remote A to operate  The Quad Link works the best when the remote is pushed ...
  • Page 29: Swivelling Nucleus Midline Holder To Side

    Invacare® AVIVA™ RX Series Return Remote to Extended Position 5.5.4    Swivelling Swing-Away Display Holder to Side  1.    The swing-away display holder only locks in place when  swivelled to its default position. To return remote to normal extended position, push outward on  inside surface of remote, then forward and inward until Quad  Link moves through its complete range and clicks into its fully  extended position.  1.  Push knob A and swivel display  holder to side. 5.5.3    Swivelling Nucleus Midline Holder to Side 5.5.5    Swivelling Chin Control to Side  1.  Push button A and swivel up or down nucleus.  1.  Press locking device C  (behind headrest)   a nd swivel  joystick or egg switch inwards  or outwards until it clicks in  place. 1654649-F...
  • Page 30: Getting In And Out Of Power Wheelchair

    5    Usage  5.  Depending on armrest type of your power wheelchair, detach  5.5.6    Getting in and out of Power Wheelchair armrest or swivel it up.                          6.  Now slide in or out of your power wheelchair.                         WARNING! Risk of serious injury or damage 5.6    Taking Obstacles Improper transfer techniques may cause serious injury or  5.6.1    Maximum Obstacle Height damage           —...
  • Page 31: Correct Way To Take Obstacles

    Invacare® AVIVA™ RX Series Ascending CAUTION! Risk of falling out of the power wheelchair and   1.  Approach obstacle or curb slowly, head-on and at a right angle.                                  2.  Stop in the following position: damage to the power wheelchair such as broken  approx. 30 – 50 cm in front of obstacle.                                ...
  • Page 32: Driving Up And Down Gradients

    For information concerning the maximum safe slope, refer to 10.1 Technical Specifications, page 58. 5.8    Use on Public Roads CAUTION! If you wish to use your power wheelchair on public roads and lighting  Risk of tipping over is required by national legislation, then your power wheelchair needs  to be fitted with an appropriate lighting system. Additional  — Only ever drive downhill at a maximum of 2/3 of the top  modifications may be required depending on the country. speed. Avoid sudden changes of direction or abrupt  Contact your Invacare provider if you have any questions. braking when driving on slopes.           — Always return the backrest of your seat or the seat tilt (if  5.9      Pushing  the  Power  Wheelchair  in  adjustable seat tilt is available) to an upright position  Freewheel  Mode     before ascending slopes. We recommend that you  position the seat backrest or the seat tilt slightly to the  The motors of the power wheelchair are equipped with automatic  rear before descending slopes. brakes, preventing that the power wheelchair starts rolling out of  — Always lower the lifter (if fitted) to its lowest position ...
  • Page 33: Disengaging Motors

    Invacare® AVIVA™ RX Series 5.9.1    Disengaging Motors CAUTION! Risk of the power wheelchair running away — When the motors are disengaged (for push operation  whilst freewheeling), the electromagnetic motor brakes  are deactivated. When the power wheelchair is parked,  the turn knobs for engaging and disengaging the motors  must without fail be locked firmly into the "DRIVE"  position (electromagnetic motor brakes activated). Disengaging Right Motor (from View of User)  1.  Switch off remote. The motors may only be disengaged by an attendant, not by  the user.  2.  Turn engaging turn knob of right motor A clockwise B. This ensures that the motors are only disengaged if an  Motor is disengaged. attendant is available to secure the power wheelchair and   3.  Turn engaging turn knob of right motor A counterclockwise C. prevent unintended rolling. Motor is engaged. The engaging turn knobs for disengaging the motors are located on  Disengaging Left Motor (from View of User) each motor.  1.  Switch off remote.  2.  Turn engaging turn knob of left motor D counterclockwise C. Motor is disengaged.  3.  Turn engaging turn knob of left motor D clockwise B. Motor is engaged. 1654649-F...
  • Page 34: 6    Control System

    6    Control System There is no need to use the circuit breaker when transporting  6    Control System the power wheelchair in a vehicle. The power wheelchair cannot be charged when the circuit  6.1    Control Protection System breaker is turned off. The power wheelchair control system is fitted with an overload  A defective circuit breaker may be replaced only after checking protection.  the entire controls system. A specialised Invacare provider  If the drive is severely overloaded over a long period of time (for  must perform the replacement. For more information about  example, when driving up a steep hill) and especially when the  the circuit breaker type, refer to 10.1 Technical Specifications, ambient temperature is high, the control system could overheat. In  page 58. this case, the wheelchair performance is gradually reduced until it  comes to a halt. The status display shows a corresponding error code  (refer to the user manual of your remote). By switching the remote off  and back on again, the error code is cleared and the control system is  switched back on. It can however take up to five minutes until the  control system has cooled down enough for the drive to restore full  performance again. The circuit breaker A is located on the left side of the battery box. If the drive is stalled by an insurmountable obstacle, for example, a  The circuit breaker is an additional safety feature of the controls  curb or similar which is too high, and the driver attempts driving for  protection system. When the system is overloaded, the circuit breaker  more than 20 seconds against this obstacle, the control system  turns off automatically. In a hazardous situation or when the power  automatically switches off to prevent the motors from being damaged. wheelchair starts to behave erratically, the circuit breaker can be used   The status display shows a corresponding error code (refer to the user  to isolate the battery source quickly. manual of your remote). By switching the remote off and back on ...
  • Page 35: Batteries

    Invacare® AVIVA™ RX Series 6.2.2    General Instructions on Charging Follow the instructions listed below to ensure safe use and longevity of  the batteries:   Charge 18 hours prior to initial usage.   We recommend charging the batteries daily after every discharge  even after partly discharge, as well as each night over night.  Depending on the level of discharge, it can take up to 12 hours   1.  To turn off power supply manually, move circuit breaker switch  upwards B. until the batteries are fully charged again.   When the battery indicator reached the red LED range, charge   2.  If circuit breaker turned off automatically or manually, move  the batteries for 16 hours minimum, neglecting the charge  circuit breaker switch downwards C to turn on power supply  complete display! again.   Try to provide a 24 hour charge once a week to make sure that  6.2    Batteries both batteries are fully charged.   Do not cycle your batteries at a low state of charge without  Power is supplied by two 12 V batteries. The batteries are  regularly recharging them fully. maintenance-free and only need regular charging.   Do not charge your batteries under extreme temperatures. High  In the following, you find information on how to charge, handle,  temperatures above 30 °C are not recommended for charging as  transport, store, maintain, and use batteries. well as low temperatures below 10 °C.
  • Page 36: Charging Batteries

                    WARNING! — During the charging process   e xplosive gases occur. Keep  Risk of fire and electric shock if a damaged extension  the power wheelchair and the charger away from   cable is used sources of ignition such as flames and sparks. — Only ever use an extension cable if it is absolutely  necessary. In case you must use one, make sure it is in  WARNING! good condition. Risk of explosion and destruction of batteries if the   1.  Switch off power wheelchair. wrong battery charger is used — Only ever use the battery charger supplied with your   2.  Connect battery charger to charger socket. power wheelchair, or a charger that has been approved   3.  Connect battery charger to power supply. by Invacare.           1654649-F...
  • Page 37: Disconnecting Power Wheelchair After Charging

    Invacare® AVIVA™ RX Series The batteries are equipped with safety vents that allow for the  6.2.6    Instructions on Using Batteries evaporation of gas which is generated during the charging  process. If the safety vents cannot release the gas properly, the  CAUTION! batteries may overheat and permanently deform. An  Risk of damaging the batteries. unpleasant smell and reduced function of the batteries may be  — Avoid ultra-deep discharges and never drain your  noticed. However, the batteries remain safe. Stop charging  batteries completely. immediatley and let the power wheelchair cool down. Please  contact your provider to exchange the batteries.   Pay attention to the Battery Charge Indicator! Charge the  batteries when the Battery Charge Indicator shows that battery  6.2.4    Disconnecting power wheelchair After Charging charge is low. How fast the batteries discharge depends on many   1.  Once charging is complete, first disconnect battery charger from  circumstances, such as ambient temperature, condition of the  power supply, then disconnect plug from remote. surface of the road, tire pressure, weight of the driver, way of  driving and utilisation of lighting, if fitted. 6.2.5    Storage and Maintenance   Always try to charge the batteries, before the indicator on the  Follow the instructions listed below to ensure safe use and longevity of  remote is displaying the state of charge with red colour. The red  the batteries: colour means a remaining capacity about 20 %.         Always store the power wheelchair fully charged.
  • Page 38: Cleaning Battery Terminals

    6    Control System   To avoid damaging the batteries, never allow them to be fully  6.2.7    Cleaning Battery Terminals discharged. Do not drive on heavily discharged batteries if it is  not absolutely necessary, as this will strain the batteries unduly  WARNING! and shorten their life expectancy. — Most batteries are not sold with instructions. However,    The earlier you recharge the batteries, the longer they live. warnings are frequently noted on the cell caps. Read    The depth of discharge affects the cycle life. The harder a battery them carefully.  has to work, the shorter is its life expectancy. Examples:           — DO NOT allow the liquid in the battery to come in    One deep discharge stresses the same as 6 normal cycles  contact with skin, clothes or other possessions. It is a  (green /orange display off). form of acid and harmful or damaging burns may result.    The battery life is about 500 cycles at 80 % discharge (first 4  Should the liquid touch your skin, wash the area  LED off), or about 5000 cycles at 10 % discharge (one LED  IMMEDIATELY and thoroughly with cool water. In  off).                       serious cases or if eye contact is made, seek medical ...
  • Page 39: Transporting Batteries

    Invacare® AVIVA™ RX Series WARNING! 6.2.8    Transporting Batteries Risk of burns The batteries supplied with your power wheelchair are not hazardous  — Never touch or remove overheating batteries. Only  goods. This classification is based on the German GGVS Hazardous  unplug the charger. Goods Road Transport Ordinances, and the IATA/DGR Hazardous  — Never touch leaking batteries. Goods Rail Transport / Air Transport Ordinances. Batteries may be  transported without restrictions, whether by road, rail or by air.  Individual transport companies have, however, guidelines which can  CAUTION! possibly restrict or forbid certain transport procedures. Please ask the  Corrosion and burns from acid leakage if batteries  transport company regarding each individual case. are damaged — Remove clothes that have been soiled by acid  6.2.9    General Instructions on Handling Batteries immediately.   The batteries reach their end of life when the drive range is  After contact with skin: significantly smaller than usual. Contact your provider or service  — Immediately wash affected area with lots of water.         After contact with eyes: technician for details.   — Immediately rinse eyes under running water for several ...
  • Page 40: 7    Transport

    7    Transport 7    Transport wheelchair or removed from the power wheelchair and  secured in the vehicle during travel. 7.1    Transport — General Information — If a tray is fitted, always remove it before         t ransporting  the power wheelchair. WARNING! Risk of death or serious injury to the power  wheelchair user and potentially any other nearby  occupant of the vehicle, if a power wheelchair is  secured using a tie-down system available from a  NOTICE! third party supplier and the unladen weight of the  — The vehicle should have the floor strength to take the  power wheelchair exceeds the maximum weight for  combined weight of the occupant, the power wheelchair  which the tie-down system is certified and accessories / options. — Make sure the weight of the power wheelchair does not  exceed the weight for which the tie-down system is  7.2    Transferring Power Wheelchair to Vehicle certified. Consult the tie-down manufacturer's  documentation. WARNING! — If you are unsure how much your power wheelchair  Power wheelchair is at risk of tipping over if  weighs, then you must have it weighed using calibrated  transferred to a vehicle while user is still seated in  scales.           power wheelchair —...
  • Page 41: Use Power Wheelchair As Vehicle Seat

    Invacare® AVIVA™ RX Series WARNING! — Alternatively, a platform lift may be used. Risk of injury and damage to power wheelchair           — Ensure that total weight of power wheelchair including  If power wheelchair must be transferred to vehicle via a lift,  user does not exceed maximum permitted total weight  when remote is turned on, there is a risk that device may act  for ramp or platform lift. — Power wheelchair should always be transferred to  erratically and fall off lift. — Before transferring power wheelchair via lift, turn off  vehicle with backrest in upright position, seat lifter  product and disconnect either bus cable from remote or  lowered and tilt in upright position (refer to 5.7 Driving batteries from system. up and down Gradients, page 32).              1.  Drive or push your power wheelchair into transport vehicle using ...
  • Page 42         o r components since this can affect the  Invacare tests with tie-down systems, that meet the  crashworthiness of the power wheelchair, and it can also  requirements of ISO 10542-1 and the curb weight of the power  wheelchair. For information concerning the curb weight, refer  change the performance of the power wheelchair           i n  to 10.1 Technical Specifications, page 58. normal use. If it is considered necessary to make these  kinds of         a lterations, Invacare shall be consulted. — Only use spill-proof sealed batteries approved by  Invacare.         1654649-F...
  • Page 43: Anchoring Power Wheelchair Used As Vehicle Seat

    Invacare® AVIVA™ RX Series  1.  Secure forward-facing power  7.3.1    Anchoring Power Wheelchair Used as Vehicle Seat wheelchair with tie-down system belts  The power wheelchair is fitted with tie-down points. Snap hooks or  at following locations:  belt loops can be used for fixation.  a.  Four tie-down points A on  power wheelchair base (two at  CAUTION! front and two at rear). There is a risk of injury if the power wheelchair is not  properly secured during use as a vehicle seat  b.  Systems with lifter: Two  additional tie-down points B on  — Always use a tie-down system suitable for the combined  each side of seat at front of seat  weight of occupant and power wheelchair. rails.  — If possible, the user should always leave the power  wheelchair to use a vehicle seat and the safety belts   2.  Secure power wheelchair by  tensioning belts in accordance with  provided with the vehicle. tie-down system manufacturer's user  — The power wheelchair should always be anchored facing  manual. in the transport vehicle's intended direction of travel. — The power wheelchair must always be secured in ...
  • Page 44: Using Additional Tie-Down Points

    7    Transport 7.3.2    Using Additional Tie-Down Points 7.3.3    Securing User in Power Wheelchair CAUTION! Risk of injury during use of the power wheelchair           a s  a vehicle seat if a headrest is wrongly           a djusted or  The power wheelchair can be fitted  not installed         with additional tie-down points A for  easier access. This can cause the neck to be hyperextended         d uring  collisions. — A headrest must be installed. The headrest           o ptionally  supplied for this power wheelchair by  ...
  • Page 45 Invacare® AVIVA™ RX Series CAUTION! — Any wheelchair anchored occupant restraint i.e. 3-point           Risk of injury if the user is not properly secured  belt, harness or postural supports (lap straps, lap belts)  within the power wheelchair should           n ot be used or relied on for occupant restraint in  — Safety restraint devices must only be used when the  a moving vehicle.           A lways use a vehicle anchored and  wheelchair user’s weight is 23 kg or more. certified occupant restraint system         i nstead. — Even if the power wheelchair is fitted with a posture belt — Care should be taken when applying the occupant ...
  • Page 46: Transporting Power Wheelchair Without Occupant

    Risk of injury — If you are unable to fasten your power wheelchair  securely in a transport vehicle, Invacare recommends  that you do not transport it. The pelvic belt should be positioned in the area between the user's  Your power wheelchair may be transported without restrictions,  pelvis and thighs so that it is unobstructed and not too loose. The ideal  whether by road, rail or by air. Individual transport companies have,  angle of the pelvic belt to the horizontal is between 45° and 75°. The  however, guidelines which can possibly restrict or forbid certain  maximum permissible angle is between 30° and 75°. The angle should  transport procedures. Please ask the transport company regarding  never be less than 30°! each individual case.   Before transporting your power wheelchair, make sure the  motors are engaged and that the remote is switched off.           Invacare strongly recommends that you additionally disconnect  or remove the batteries. Refer to the corresponding chapter  about disconnecting the batteries in the service manual, which is  available through Invacare.           Invacare strongly recommends securing the power wheelchair to  the floor of the transporting vehicle.         The safety belt installed in the transporting vehicle should be applied  as shown in the illustration above.  1) centre line of the body 2) centre of the sternum 1654649-F...
  • Page 47: Dahl Docking System

    Invacare® AVIVA™ RX Series respected by the fitter. Please contact Dahl Engineering for further  7.5    Dahl Docking System information about approved vehicles and fitting positions. Dahl  Engineering contact details are available at: www.dahlengineering.dk. If a power wheelchair is equipped with a Dahl Docking System adapter  To retrofit a power wheelchair with a Dahl Docking system, it is  plate, the following label appears on the backrest of the power  imperative, that the power wheelchair is equipped with the  wheelchair. The value on the label explains the ground clearance of  correct adapter plate. This adapter plate must be threaded to  the power wheelchair, fitted with a Dahl Docking system adapter  fix the lock plate of the Dahl Docking system underneath the  plate. power wheelchair. The maximum payload with the Dahl Docking system is 136 kg. The maximum weight of the power wheelchair must not  exceed 200 kg. WARNING! For more information about retrofitting, contact your provider. Risk of Death, Serious Injury or Damage If the power wheelchair is not secured in a forward facing  The description of how to install the Dahl Docking system to  direction in the Dahl Docking station, death, serious injury or  maintain the CE-marking of the product is contained in the  damage may occur. service manual of this power wheelchair, which is available  — The wheelchair should be secured in a forward facing  through Invacare.         direction. This wheelchair is tested to ISO 7176-19, for  use in road vehicles and meets the requirements for  For more information about spare parts, accessory / option  forward facing transport and head on collisions. The ...
  • Page 48 7    Transport Positioning the occupant restraint when using it with the  Components of Dahl Docking System Dahl Docking system only When using power wheelchair with a Dahl Docking system, the  floor anchorage points for the occupant restraint system  should be located 10 – 60 mm outside wheels on each side.  The pelvic belt must be worn low across the front of the pelvis  so that the angle of the pelvic belt is within the preferred zone  A of 30° to 45° as shown. A steeper angle within the optional  (1) Dahl Docking station zone B, 45° to 75° is desirable, but never exceeding 75°. (2) Lock plate and 8 mm spacer (3) Locking pin (4) Red LED (5) Green LED (6) Control panel (7) Release button (8) Manual emergency release lever (9) Manual operating lever (optional) Dahl Engineering offers two Dockings systems, the MK II (Dahl No.  501750), and a power height adjustable called Dahl VarioDock (Dahl  No. 503600). 1654649-F...
  • Page 49 Invacare® AVIVA™ RX Series  2.  If lock plate is fully engaged in Dahl Docking station, locking pin  Locking in Dahl Docking Station (3) automatically secures lock plate. WARNING!  3.  Dahl Docking station is equipped with control switch that  Risk of Death, Serious Injury or Damage indicates if lock plate is correctly secured in Dahl Docking station. If the vehicle is moved while the power wheelchair is not  As soon as lock plate comes in contact with locking pin, warning  correctly secured in the Dahl Docking station, death, serious  tone sounds (high-pitched howl) and red LED in control panel (6)  injury or damage may occur. lights up until lock plate is either fully engaged or power  — Do not move the vehicle while the power wheelchair is  wheelchair is removed from Dahl Docking station. maneuvered into position in the Dahl Docking station.  4.  When power wheelchair is properly secured, warning tone  — Do not move the vehicle if power wheelchair and user  ceases, red LED goes out and green LED lights up. are not correctly secured. — Do not move the vehicle if the warning tone sounds   5.  Buckle up with seat belt of vehicle. and/or if the red LED in the control panel flashes or is lit. Always check before moving the vehicle if lock plate is properly  engaged in the Dahl Docking station by trying to reverse the   1.  Maneuver power wheelchair slowly and in straight direction over  power wheelchair out of the Dahl Docking station. It must not  Dahl Docking station (1).
  • Page 50 7    Transport    2.  Do not attempt to reverse power wheelchair until red LED, which  indicates unlock position, lights up. Attempting to reverse the power wheelchair before the red  LED lights up, results in blocking the Dahl Docking station’s  locking mechanism, which makes it impossible to reverse. If  this happens, repeat unlocking procedure. Place emergency release tool in gap between locking plate and  Manual Unlocking in Case of Electrical Failure Dahl Docking station.    3.  The following instructions require the help of an attendant.  1.  Move power wheelchair forward to release pressure on locking  pin.  2.  Push manual emergency release lever (8) to one side and hold it  there, while power wheelchair moves away. Push emergency release tool and power wheelchair forward until   3.  A cable-activated manual operating lever (9) can also be fitted  locking pin has been forced down. (accessory / option).  4.  Move power wheelchair away from Dahl Docking station. Push lever to one side and hold it there, while power wheelchair  moves away. If the manual unlocking procedure fails, an emergency release  tool made from red plastic comes with each Dahl Docking  station.          1.  Move power wheelchair forward to release pressure on locking  pin. 1654649-F...
  • Page 51: 8    Maintenance

    Invacare® AVIVA™ RX Series 8    Maintenance 8.1    Maintenance Introduction The term “Maintenance“ means any task performed to ensure that a medical device is in good working order and ready for use as intended.  Maintenance encompasses different areas, such as everyday care and cleaning, inspection checks, repair tasks and refurbishment. It is recommended, to have your power wheelchair checked once a year by an authorised Invacare provider to maintain its driving safety  and roadworthiness. 8.2    Inspection Checks The following tables list inspection checks that should be performed by the user and their intervals. If the power wheelchair fails to pass one of the  inspection checks, refer to the chapter indicated or contact your authorised Invacare provider. A more comprehensive list of inspection checks and  instructions for maintenance work can be found in the service manual for this device, which is available through Invacare. The service manual is  intended to be used by trained and authorised service technicians, and describes tasks which are not intended to be performed by the user. 8.2.1    Before Each Use of Power Wheelchair Item Inspection Check If Not Passed Screwed connections Check all connections, such as backrests and wheels, for tight fit. Contact your provider. Signal horn Check for correct function. Contact your provider. Lighting system Check that all lights, such as turn indicators, head lamps and tail lights, are  Contact your provider. functioning correctly. Battery box locking  Check to ensure that the battery box locking system is functioning correctly.  Contact your provider. system Locking pins must be completely engaged in the holes provided for them (refer to  7.4 Transporting Power Wheelchair Without Occupant, page 46).
  • Page 52: Weekly

    8    Maintenance 8.2.2    Weekly Item Inspection Check If Not passed Armrests / side parts  Check that armrests are firmly attached in their  Tighten the screw or clamping lever that holds   a rmrests. holders and do not wobble. Contact your provider. Tires (pneumatic) Check that the tires are undamaged. Contact your provider. Check that the tires are inflated to the correct  Inflate the tire to the correct pressure (refer to 8.3 Wheels   pressure. and Tyres, page 53 and 10.1 Technical Specifications, page 58). Tires (puncture-proof) Check that the tires are undamaged. Contact your provider. Antitippers Check that antitippers are firmly attached and do  Contact your provider. not wobble. Check that the spring clips of the antitippers are in  good order and secure the antitippers correctly. 8.2.3    Monthly Item Inspection Check If Not Passed All upholstered parts ...
  • Page 53: Wheels And Tyres

    Invacare® AVIVA™ RX Series 8.3    Wheels and Tyres Dealing With Wheel Damages In case of having a damaged wheel, contact your provider. Because of  safety reasons do not have the wheel repaired by yourself or by not  authorised persons. Dealing With Pneumatic Tyres NOTICE! Risk of damage to tyre and rim Never drive with too low tyre pressure, this could result in  damage to tyre. If tyre pressure is exceeded rim could be damaged. — Inflate tyres to recommended pressure. Use tyre gauge to check pressure. Check weekly that the tyres are inflated to the correct pressure, refer  8.4    Short-Term Storage to 8.2.1 Before Each Use of Power Wheelchair, page 51. In case a serious fault is detected, a number of safety mechanisms are  For recommended tyre pressure see inscription on tyre / rim or  built into your power wheelchair and will protect it. The power module  contact Invacare. Compare table below for conversion. prevents your power wheelchair from driving. When the power wheelchair is in such a condition and while waiting  for repair:  1.  Switch off power.                        ...
  • Page 54: Long-Term Storage

    8    Maintenance disconnecting the batteries in the service manual, which is    If storing the power wheelchair longer than four weeks, check  available trough Invacare.                         the batteries once a month and recharge as needed (before   3.  Contact your provider.                         gauge reads half full) to avoid damage.   Store in a dry, well-ventilated environment protected from outer  8.5    Long-Term Storage influences.   Slightly overinflate pneumatic tyres. In case your power wheelchair is not used for a longer period of time,   ...
  • Page 55: Cleaning Intervals

    Invacare® AVIVA™ RX Series — Make sure that no water splashes to the plug or the wall  8.6.2    Cleaning Intervals outlet.           — Do not touch the power socket with wet hands. NOTICE! Regular cleaning and disinfection enhance smooth  operation, increases the service life and prevents  NOTICE! contamination. Wrong fluids or methods can harm or damage the product.         Clean and disinfect the product: — All cleaning agents and disinfectants used must be  — regularly while in use, effective, compatible with one another and must protect  — before and after any service procedure, the materials they are used to clean.           — when it has been in contact with any body fluids, — Never use corrosive fluids (alkalines, acid etc.) or ...
  • Page 56: Cleaning Upholstery

    8    Maintenance  2.  Wipe down the individual parts using a cloth or soft brush,  ordinary household cleaning agents (pH = 6 - 8) and warm water.  3.  Rinse the parts with warm water.  4.  Thoroughly dry the parts with a dry cloth. Car polish and soft wax can be used on painted metal surfaces  to remove abrasions and restore gloss. Cleaning Upholstery For cleaning upholstery refer to the instructions on the labels of the  seat, cushion and backrest cover. If possible, always overlap hook and loop strips (the self- gripping parts) when washing, to minimize lint and thread  build-up on hook strips and prevent damage to upholstery  fabric by these. 8.6.4    Disinfection Instructions Method: Follow the application notes for the used disinfectant and  wipe-disinfect all accessible surfaces. Disinfectant: Ordinary household disinfectant. Drying: Allow the product to air-dry. 1654649-F...
  • Page 57: 9    After Use

    9    After Use 9    After Use 9.2    Disposal 9.1    Reconditioning WARNING! Environmental Hazard This product is suitable for reuse. To recondition the product for a new  Device contains batteries.  user, carry out the following actions: This product may contain substances that could be harmful    Inspection according to service plan, refer to the service manual,  to the environment if disposed of in places (landfills) that  which is available trough Invacare. are not appropriate according to legislation.   Cleaning and disinfection, refer to 8.6 Cleaning and Disinfection, — DO NOT dispose of batteries in normal household waste.  page 54.       — DO NOT throw batteries into a fire.   Adaptation to the new user, refer to the "Setup" chapter in the  — Batteries MUST be taken to a proper disposal site. The  seating manual. return is required by law and free of charge.           Make sure that the user manual is handed over with the product.
  • Page 58: 10    Technical Data

    10    Technical Data 10    Technical Data 10.1    Technical Specifications The technical information provided hereafter applies to a standard configuration or represents maximum achievable values. These can change if  accessories are added. The precise changes to these values are detailed in the sections for the respective accessories. Note that there may be values in this list, which are not relevant to your product, since this list applies to all available models (on the date of  printing). If not otherwise stated, each value in this list refers to all models of the product. The models and configurations available in your country can be found in the country-specific sales documents. Note that in some cases the measured values may vary up to ± 10 mm. Permissible Operating and Storage Conditions Temperature Range for Operation    -25 °C – +50 °C According to ISO 7176-9   +15 °C Recommended Storage Temperature   Temperature Range for Storage  -25 °C – +65 °C with batteries According to ISO 7176-9   -40 °C – +65 °C without batteries Electrical System   2 x 12 V / 73.5 Ah (C20) / 63 Ah (C5) sealed VRLA gel Batteries   2 x 12 V / 60 Ah (C20) / 47.4 Ah (C5) sealed VRLA gel   63 A Main Fuse   IPX4 Degree of Protection Charging Device   Output Current 8 A 1654649-F...
  • Page 59 Invacare® AVIVA™ RX Series Charging Device   10 A Output Voltage   24 V nominal Drive Wheel Tyres   14 inch puncture-protected, puncture-proof, pneumatic Tyre Type The recommended maximum tyre pressure in bar or kpa is marked on the side wall of the tyre or  Tyre Pressure the rim. If more than one value is listed, the lower one in the corresponding units applies. (Tolerance = -0.3 bar, 1 bar = 100 kpa) Castor Tyres   9 inch puncture-protected, puncture-proof, pneumatic Tyre Type   8 inch puncture-proof The recommended maximum tyre pressure in bar or kpa is marked on the side wall of the tyre or  Tyre Pressure the rim. If more than one value is listed, the lower one in the corresponding units applies. (Tolerance = -0.3 bar, 1 bar = 100 kpa)   Driving Characteristics     3 km/h 10 km/h Speed     6 km/h 12 km/h Max. Stopping Distance:  ...
  • Page 60 10    Technical Data Driving Characteristics   1920 mm (10 km/h)   Forward with Kerb Climber: 100 mm   Max. Climbable Obstalce Height Forward without Kirb Climber: 75 mm   Reverse: 40 mm Rated Slope   6° (10.5 %) according to manufacturer's specifications with 136 kg payload, 4° seat angle, 20°  Ultra Low Maxx backrest angle   10° (17.6 %) according to manufacturer's specifications with 160 kg payload, 4° seat angle,  Modulite without Lifter 20° backrest angle   6° (10.5 %) according to manufacturer's specifications with 160 kg payload, 4° seat angle, 20°  Modulite with Lifter backrest angle   Max. Slope with Engaged Parking  17.4° (uphill)   12.5° (downhill) Brakes Lateral Dynamic Stabiliy: Min. Diameter for Turning in Circles    3200 mm (Ultra Low Maxx)   at max. Speed 4400 mm (Modulite)   Stable While Turning Suddenly Continuous Driving Distance Range in Accordance with ISO 7176-4  ...
  • Page 61 Invacare® AVIVA™ RX Series Driving Characteristics   40 km (10 km/h)   34 km (12 km/h)   35 km (6 km/h)   60 Ah Batteries 30 km (10 km/h)   26 km (12 km/h) Manoeuvering Distance Range in Accordance with ISO 7176-4   14 km (6 km/h)   Ultra Low Maxx 10 km (10 km/h)   7 km (12 km/h)   19 km (6 km/h)   Modulite 14 km (10 km/h)   10 km (12 km/h)   1975 – 2105 mm (Ultra Low Maxx) Turning Diameter   1506 – 2086 mm (Modulite)   1300 – 1575 mm Pivot Width  ...
  • Page 62 10    Technical Data Seat Type Dimensions According to  ISO 7176-5 Ultra Low Maxx Modulite Seat-to-Floor Height   420 mm (Ultra Low Maxx only!)   435 mm With Tilt Module   460 mm   485 mm   420 – 720 mm (Ultra Low Maxx only!)   435 – 735 mm With Lifter / Tilt Module   460 – 760 mm   485 – 785 mm     1101 – 1210 mm 1000 – 1335 mm Max. Total Height Max. Total Width (depending on Seat    565 – 690 mm   565 – 865 mm   Width and Base Width) 565 — 730 mm (Modulite HD)  ...
  • Page 63 Invacare® AVIVA™ RX Series Component Weights   approx. 23 kg per battery 73.5 Ah Batteries   approx. 20 kg per battery 60 Ah Batteries Seat Type Payload Ultra Low Maxx Modulite   136 kg (Narrow base)   136 kg Max. occupant mass   160 kg (Wide base) Axle Loads   144.4 kg Max. Front Axle Load   267.2 kg Max. Rear Axle Load Usable battery capacity depending on the discharge time. C20: Discharge over a period of 20 hours. C5: Discharge over a period of 5 hours. IPX4 classification means that the electrical system is protected against spray water. Static stability downhill, uphill, and sideways according to ISO 7176-1 = 9° (15.8 %) Dynamic stability according to ISO 7176-2 = 6° (10.5 %) Note: The drive range of a power wheelchair is strongly influenced by external factors, such as the speed setting of the wheelchair, the  charging state of the batteries, surrounding temperature, local topography, road surface characteristics, tyre pressure, weight of user,  drive style and use of batteries for lighting, servos etc. The specified values are theoretical maximum achievable values measured according to ISO 7176-4. Measured without seat cushion The actual kerb weight depends on the fittings your power wheelchair has been supplied with. Every Invacare power wheelchair is weighed ...
  • Page 64: 11    Service

    11    Service 11    Service 11.1    Inspections Performed It is confirmed by stamp and signature that all jobs listed in the inspection schedule of the service and repair instructions have been properly  performed. The list of the inspection jobs to be performed can be found in the service manual which is available through Invacare. Delivery Inspection 1st   A nnual Inspection     Stamp of authorised provider / Date / Signature Stamp of authorised provider / Date / Signature 2nd Annual Inspection 3rd Annual Inspection     Stamp of authorised provider / Date / Signature Stamp of authorised provider / Date / Signature 1654649-F...
