Invacare® Modulite
1. Loosen screw in position A or B.
2. Adjust recline to desired angle.
3. Tighten screws in position A or B.

4.1.6 Adjusting Matrx Backrests

See corresponding manual.

4.1.7 Adjusting Flex3 tension adjustable backrest

For adjustment of Flex3 tension adjustable backrest, see user manual.

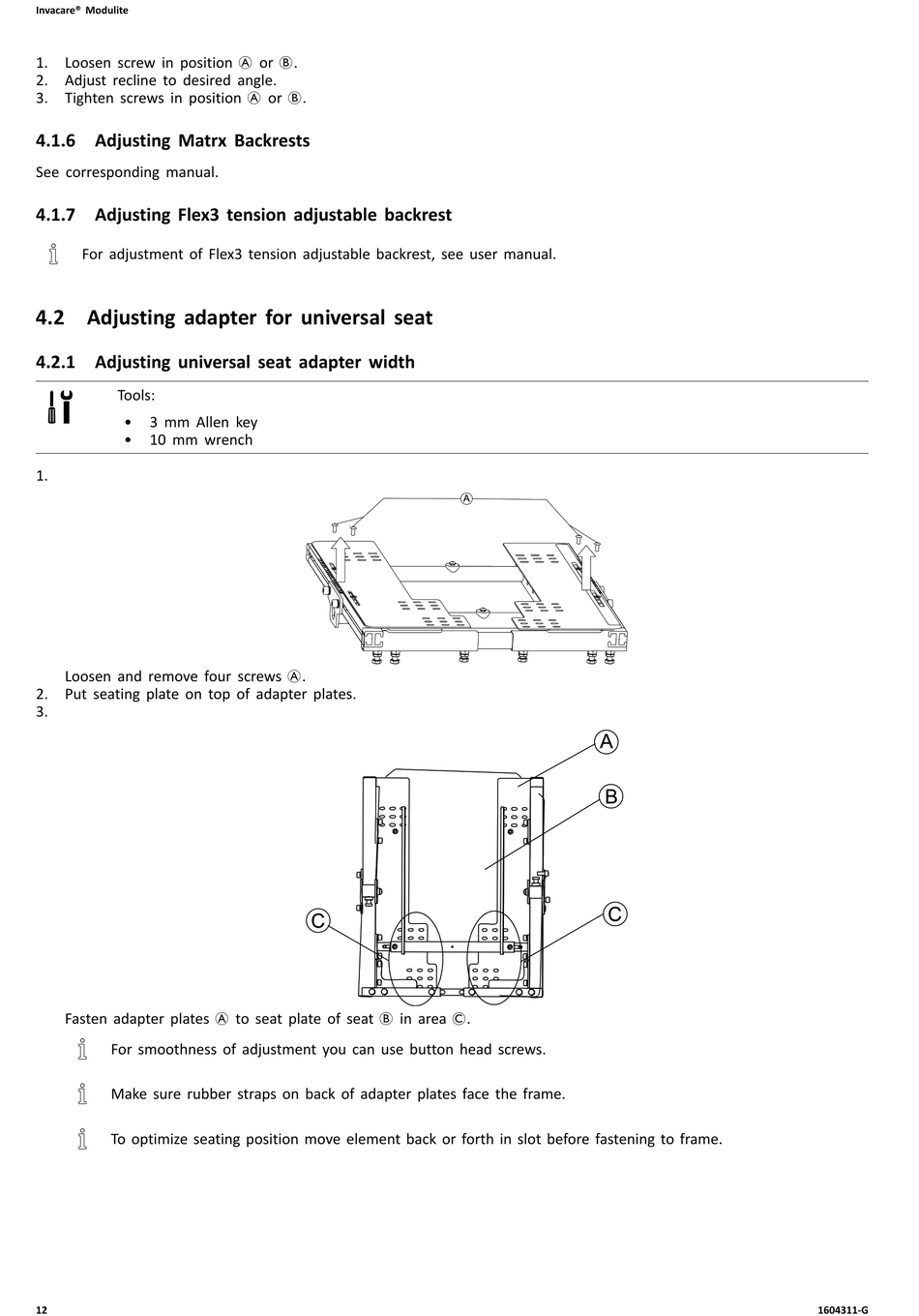

4.2 Adjusting adapter for universal seat

4.2.1 Adjusting universal seat adapter width

Tools:
• 3 mm Allen key
• 10 mm wrench
1.
Loosen and remove four screws A.
2. Put seating plate on top of adapter plates.
3.
Fasten adapter plates A to seat plate of seat B in area C.
For smoothness of adjustment you can use button head screws.
Make sure rubber straps on back of adapter plates face the frame.
To optimize seating position move element back or forth in slot before fastening to frame.
12 1604311-G
