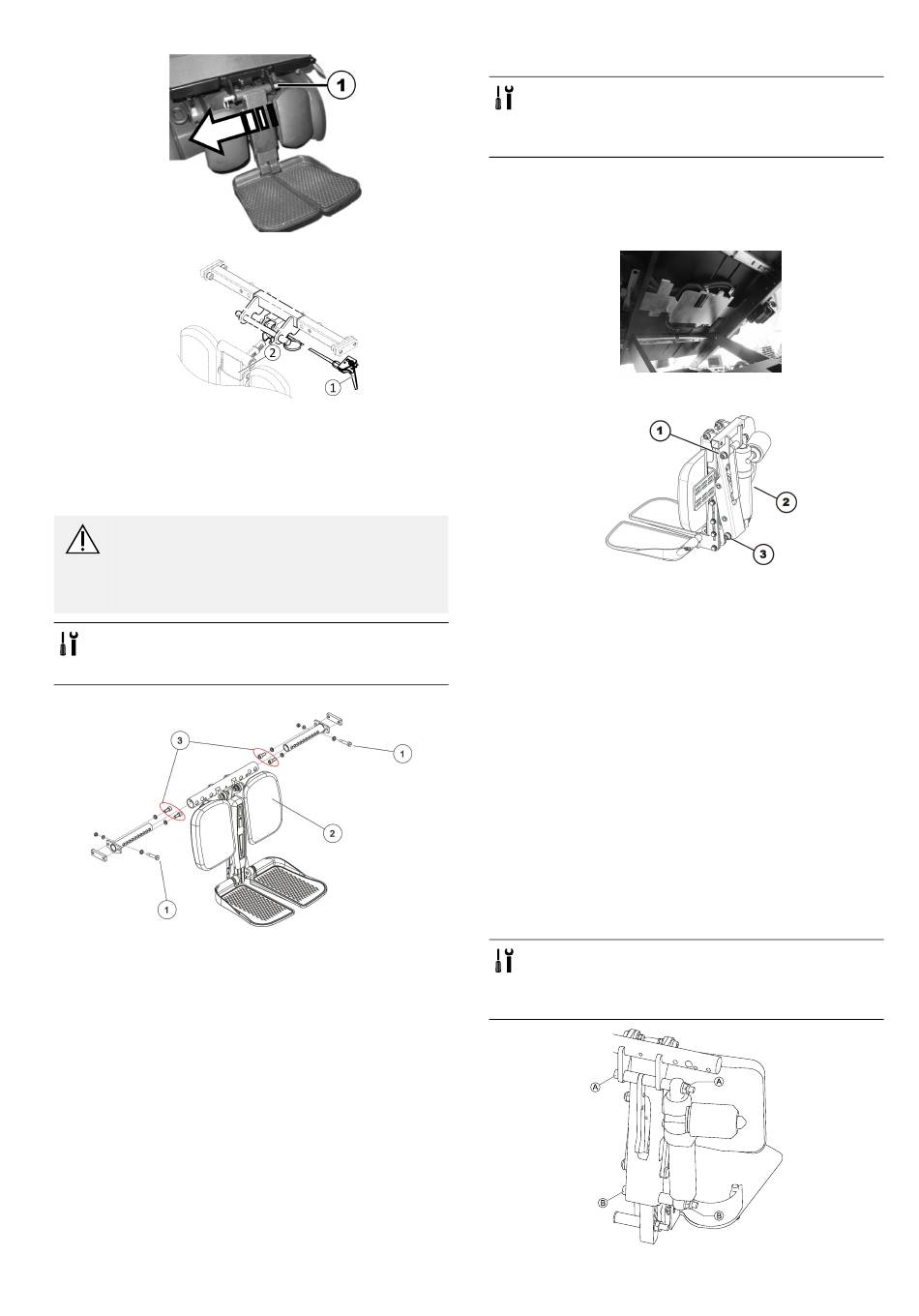

1.
Remove removable axle (1).
2.
Hold legrest securely and pull lever (1).
3. Remove legrest from holder (2).
5.10.2 Replacing LNX powered center-mounted
legrest
WARNING!
Risk of crushing
The legrest is very heavy. Danger of injury to
hands and feet.
– Pay attention to the heavy weight.
Tools:
• 4 mm Allen key
• 10 mm wrench
Removing LNX powered center-mounted legrest
1. If possible, raise the lifter to highest position.
2. If possible, tip wheelchair with tilt module as far
backwards as it will go.
3. Switch off controls.
4. Pull plug of legrest actuator out of actuator module.
5. Remove protective caps from profile.
6. Loosen screws (3) with a 6 mm Allen key. Pull entire
legrest (2) forwards out of seat frame profile.
7. Loosen and remove screws (1) including nuts and
washers with a 4 mm Allen key and a 10 mm ring
spanner or jaw spanner.
8. Replace legrest (2).
Installing LNX powered center-mounted legrest
1. Install parts in reverse order.
2. Test all functions of the wheelchair.
1604311-G

5.10.3 Replacing an powered legrest actuator

• 1/2" socket wrench
• 3/8" Allen key
• Side cutting pliers
• Cable ties
Removing powered legrest
1. Switch controls system off. The actuator module for
lifter and tilt actuator are mounted to front edge of
seat frame.
2.
Completely remove both screws including washers.
3. Remove shroud.
4.
Pull plug of legrest actuator out of actuator module.
5. Loosen screw (3).
6. Loosen screw (1).
7. Remove nuts including washers, but leave screw
inserted in screw hole, do not pull it completely out.
8. Pull actuator (2) toward the side of screws (1) and
(3) off.
9. Replace actuator.
Installing powered legrest
1. Install parts in reverse order.
2. Test all functions of mobility device.
5.10.4 Replacing LNX powered center-mounted
legrest with telescoping footboard
Replacing the complete legrest must be done by Invacare.
There are several settings to observe to ensure correct
functioning. Contact Invacare for details.
Replacing legrest actuator
Tools:
• 6 mm Allen key
• 8 mm Allen key
• 16 mm wrench
