Invacare® Modulite

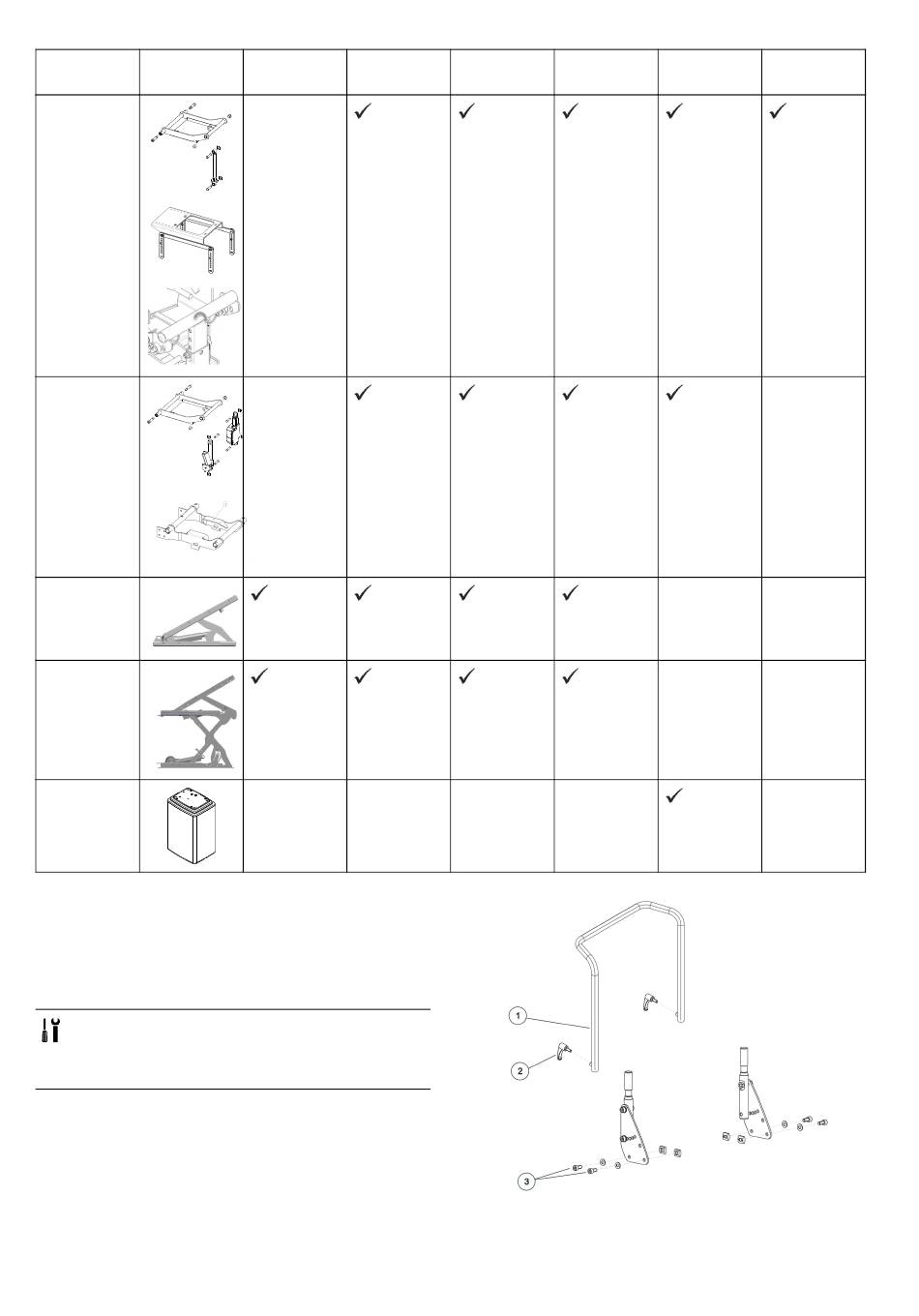

Example
Fixed,
manual
adjustable
or settable
angle
Powered tilt,
fixed pivot
point
Powered tilt
with center
of gravity
shift
Lifter with
powered tilt
and center of
gravity shift
Column lifter

5.4 Replacing backrest

For backrest styles, see 5.3.2 Backrest styles, page 15.

5.4.1 Replacing standard backrest

Tools:
• 5 mm Allen key
• 10 mm wrench
• 13 mm wrench
Removing backrest unit
1. Remove backrest cushion
2. Loosen fixation lever (2) of backrest tube.
3. Remove backrest tube.
4. Use Allen key to loosen and remove screws (3)
including nuts and washers on the left and right side.
20
Pronto M41
Bora/
SpectraXTR
Kite Series TDX SP2
Series/ FDX
Storm4 Fox
Series
1604311-G
