SECTION 6 - ADVANCED CONFIGURATION MENU

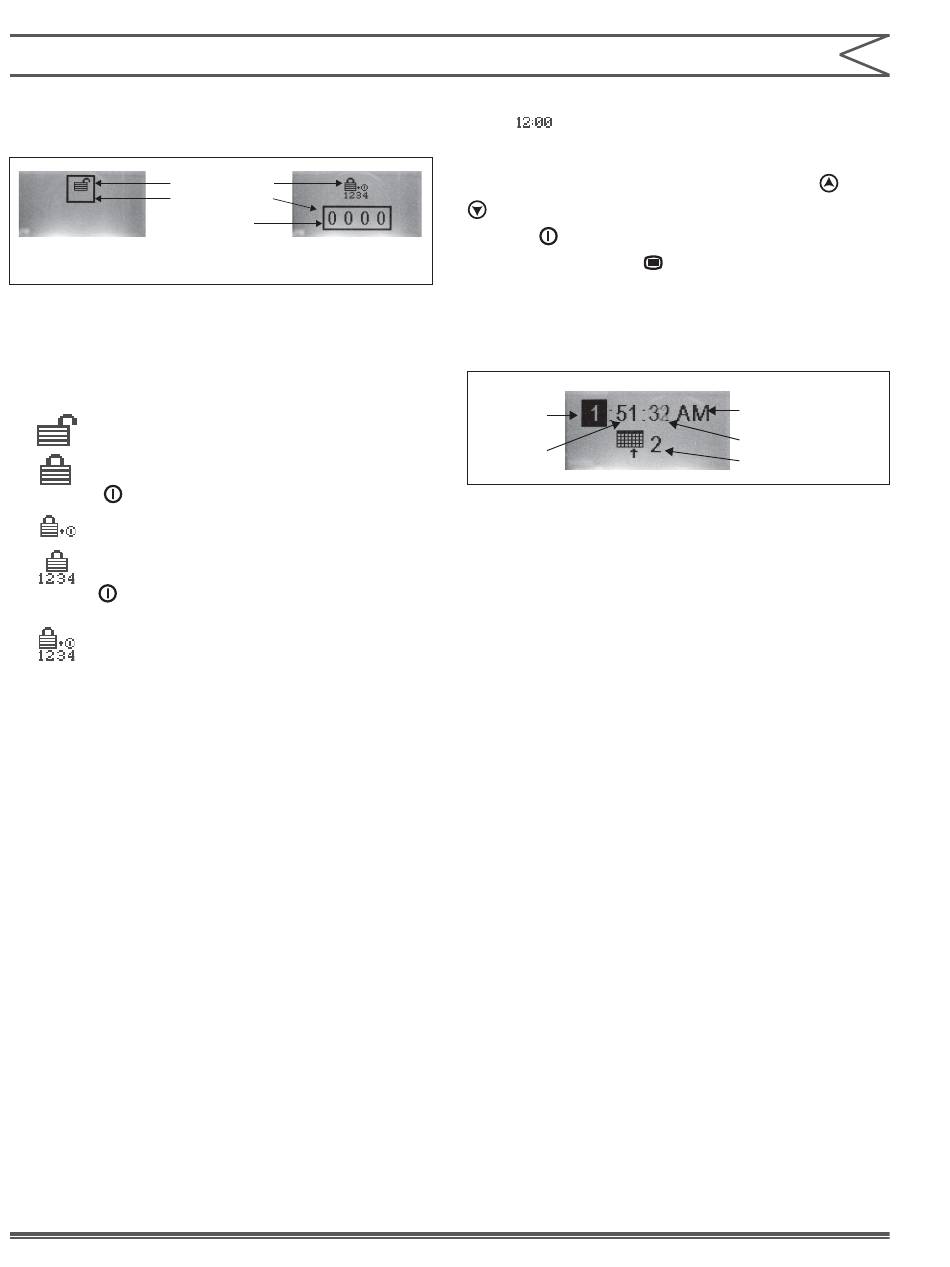

Display Overview:
Lock Mode
Selection Box
Code Area
Lock Configuration
(No Code)
1. Lock Mode:
The icon corresponding to the current lock
mode configuration.
= Always unlocked (default).
= All buttons locked out except the
POWER button.
= All buttons locked out.
= All buttons locked out except the
POWER button and an unlock pass
code required to unlock pump.
= All buttons locked out and an unlock
pass code required to unlock pump.
2. Code Area (on appropriate lock modes only):
Displays 4-digit unlock pass code.
3. Selection Box: Indicates the currently selected
item.
NOTE:
Make note of the pass code you have selected.
This will be required to unlock the pump. If the
pass code is misplaced and the lock is activated,
the pump must be returned to the factory in order
to be reset (see Section 4.4 to unlock the pump).
18
6.5
The clock will only be displayed when operating in
Timed Event Mode (see Sec. 5.5). Use the
Use the
Lock Configuration
parameter. Use the
(with Code)
to the prior parameter.
Display Overview:
Minutes
1. Hours (1-12).
2. Minutes (0-59).
3. Seconds (0-59).
4. AM/PM Indicator (AM or PM).
5. Day of Week (1-7).
Instruction Manual

SET CLOCK

DOWN button to edit the highlighted parameter.
POWER button to advance to the next
Hours
UP or
MODE button to go back
AM/PM Indicator
Seconds
Day of Week
