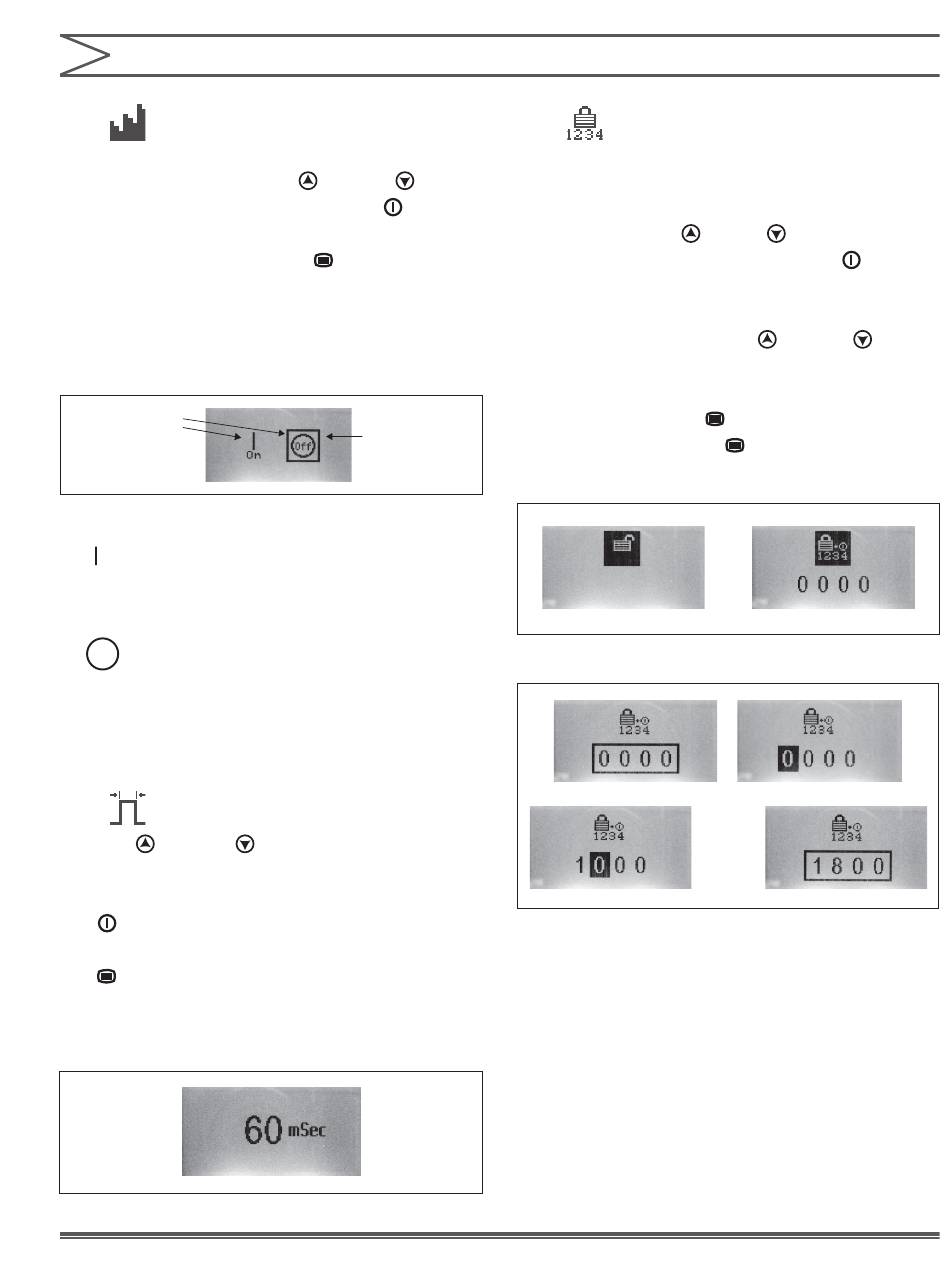

6.2

SET BATCH MODE

Batch mode applies only to the Pulse Multiply Mode
(see Section. 5.2). Use the
buttons to select On or Off. Push the
button to select the item and return to the advanced
configuration menu. Use the
return to the advanced configuration menu without
saving changes.
Display Overview:
ON/OFF Icons
1. ON/OFF Icons:
= Batch Mode ON (Stroke counter will
On
accumulate when pulses are detected during
an existing pump cycle)
= Batch Mode OFF (Stroke counter will
Off
reset if a pulse is detected during an existing
pump cycle)
2. Selection Box: Indicates the currently selected
item.
6.3

SET PULSE WIDTH

Use the UP and
the value for the pulse width. The valid range is
4 mSec - 60 mSec (in 4 mSec increments). Push
the POWER button to save the value and
return to the advanced configuration menu. Use
the MODE button to return to the advanced
configuration menu without saving changes.
Display Overview:
Pulse width (in milliseconds)
SECTION 6 - ADVANCED CONFIGURATION MENU
UP and DOWN
POWER
MODE button to
Selection Box
DOWN arrows to change
Instruction Manual
6.4

SET LOCK MODE CONFIGURATION

This menu is used to select the desired lock mode
and to set the pass code; when you exit this menu,
the lock is not activated (see Sec. 4.4 to activate
the lock). Use the
select the desired parameter. Use the
button to toggle to parameter's edit mode. A black
background indicates the parameter is in edit mode.
While in edit mode, use the
buttons to set the value. While setting the unlock
pass code, use the POWER button to advance to
the next digit, and the
to the prior digit. Use the
to the advanced configuration menu.
Example: Editing Lock Mode
Example: Editing Unlock Pass Code
UP or DOWN button to
POWER
UP and DOWN
MODE button to go back
MODE button to return
17
