This menu is used to select the control mode or
enter into the advanced configuration menu. There
are 2 internal control modes and 3 external control
modes. In order to operate the pump in an external
control mode, a remote device must be connected
to the pump through the 5-Pin connector.
With the pump turned OFF, push the
button to bring up the Control Mode Selection
Menu. Use the UP and
scroll through the modes. Once the desired mode
is selected, use the
that mode. Push and hold the
approximately 2 seconds to exit the menu.

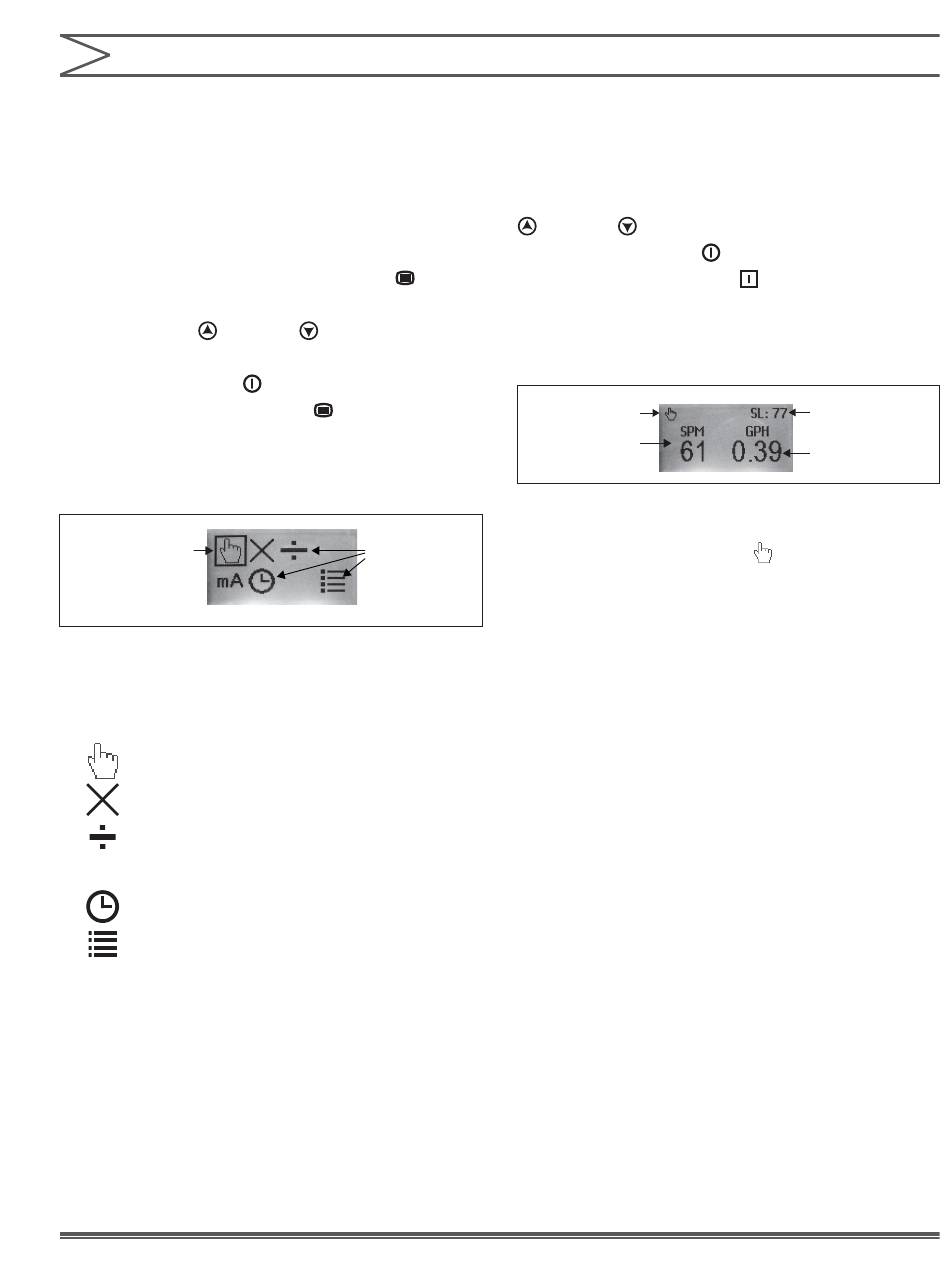

Display Overview:
Selection Box

Control Mode Selection Menu

1. Mode Icons: Each icon represents a different
control mode, as follows:
= Manual Mode - Internal (Sec. 5.1).
= Pulse Multiply Mode - External (Sec. 5.2).
= Pulse Divide Mode - External (Sec. 5.3).
mA
= Analog mA Mode - External (Sec. 5.4).
= Timed Event Mode - Internal (Sec. 5.5).
= Advanced Configuration Options
(Sec. 6.0).
2. Selection Box: Indicates the currently selected
item.
NOTE:
After approximately 2 minutes of inactivity, the
mode selection menu will automatically close
and revert back to the prior display.
While in this menu, all external outputs will
return to their default "OFF" state and all
external inputs will be ignored.
SECTION 5 - CONTROL MODE SELECTION MENU
MODE
DOWN buttons to
POWER button to enter
MODE button for
Mode Icons
Instruction Manual

5.1 MANUAL MODE (INTERNAL)

This mode is used when external devices are not
being used to control the pump. While in manual
mode, the stroke speed is varied by using the
UP and DOWN buttons. To turn the pump
ON or OFF, push the
the remote ON/OFF. The
will illuminate green when the pump is ON.
Display Overview:
Icon/Alarm Area
Stroke Rate
Manual Mode Display
1. Icon/Alarm Area: The
pump is in the manual mode. Depending on
advanced pump configuration options and any
alarms alerts detected, other icons may be
present as well (see Sec. 4.5).
2. Stroke Length: The numeric stroke length
value indicates the current stroke length setting
(in percent).
3. Stroke Rate: Indicates the stroke speed of the
pump (1-59SPH or 1-120 SPM).
4. Theoretical Flow: The theoretical flow
based on stroke speed, stroke length, and
calibration settings (see Sec. 6.6 for calibration
information).
POWER button or toggle
Pump ON/OFF LED
Stroke Length
Theoretical Flow
icon indicates the
