5.5.1 Programming Timed Events

One timed event may be programmed to execute
for each of 7 days. Each event has a uniquely
programmable start time, duration, and stroke rate.
Use the UP or
the selection box to the parameter you wish to
change. Use the
the parameter's edit mode. A black background
indicates the parameter is in edit mode. The Event
Enabled parameter will be toggled ON/OFF rather
than going into an edit mode.
While in edit mode, use the
buttons to set the value. The valid range for the
day value is 1-7. As the day value is changed, the
start time, duration, and stroke rate will be updated
to reflect the programming for the selected day.
A checked event enabled box indicates that the
currently displayed event is enabled. The valid
range for the duration value is 1 minute to 24 hours.
The valid range for the SPM value is 0 to 120 SPM
or 0-59 SPH.
Use the POWER button to exit the edit mode
and save the setting. Use the
exit the programming mode.
Parameter Selected
Parameter Modified
SECTION 5 - CONTROL MODE SELECTION MENU
DOWN button to move
POWER button to toggle
UP and DOWN
MODE button to
Placed Into Edit
Mode
Parameter Saved
Instruction Manual

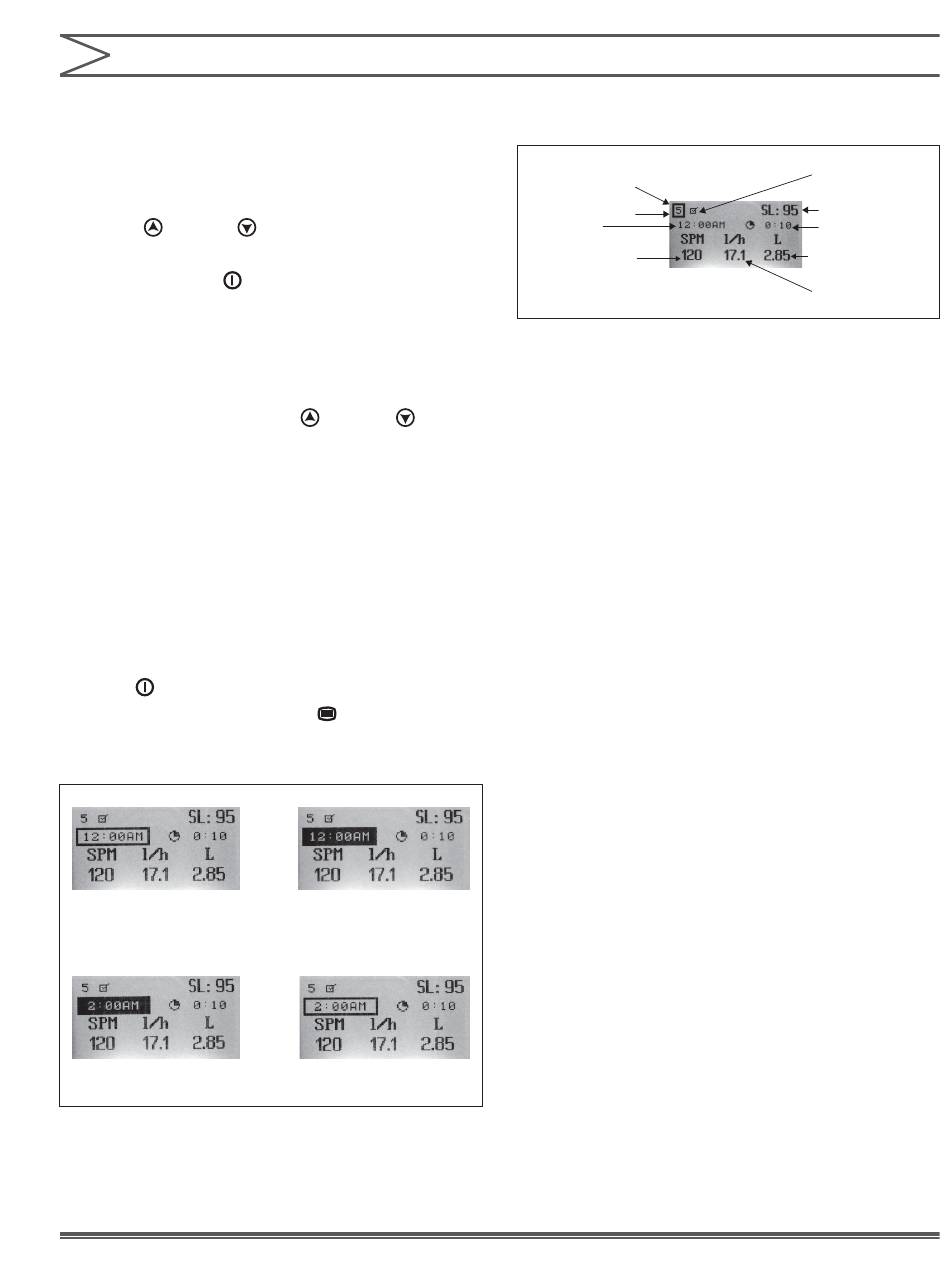

Display Overview:
Selection Box
Day
Event Start
Time
Stroke Rate
1. Selection Box: Indicates the currently selected
item.
2. Day: Day of currently displayed event.
3. E v e n t E n a b l e d : I n d i c a t e s w h e t h e r
c u r r e n t l y d i s p l a y e d e v e n t i s e n a b l e d
(checked = enabled).
4. Stroke Length: The numeric stroke length
value indicates the current stroke length setting
(in percent).
5. Event Start Time: The Day and Time of the next
timed event (see Sec. 5.5 for time format).
6. Event Duration: Duration / Run-Time of currently
displayed event (format Hours:Minutes).
7. Stroke Rate: Indicates the stroke speed of the
pump (1-59SPH or 1-120 SPM) for the currently
running event or the next scheduled event.
8. Theoretical Flow: The theoretical flow
based on stroke speed, stroke length, and
calibration settings (see Sec. 6.6 for calibration
information).
9. Calculated Volume: The calculated based on
event duration, stroke rate, stroke length, and
calibration settings (see Sec. 6.6 for calibration
information).
NOTE:
Parameter changes are saved when editing is
complete and go into effect immediately.
After approximately 2 minutes of inactivity, the
programming menu will automatically close and
revert back to the main analog mode display.
Event Enabled
Stroke Length
Event Duration
Calculated Volume
Theoretical Flow
