SECTION 5 - CONTROL MODE SELECTION MENU

5.2 PULSE MULTIPLY MODE (EXTERNAL)

This mode is used to control the pump with an
external device connected to the appropriate
contacts of the 5-Pin connector. With the pump
OFF, use the UP and
the strokes-per-pulse parameter. To turn the pump
ON or OFF, push the
the remote ON/OFF. The
will illuminate yellow when the pump is ON. With
the pump turned ON, and a pulse is received, the
pump will begin running, with the remaining pulses
counting down on the display.
If a pulse is received before the countdown is
complete and Batch Mode is OFF (see Sec. 6.2),
the error code (see Sec. 4.5) is displayed
and the pump batch count then restarts from
the strokes-per-pulse setpoint. The fault will be
corrected when the pump completes the current
batch OR the pump is stopped.
If a pulse is received before the countdown is
complete and Batch Mode is ON (see Sec. 6.2), the
pump will accumulate strokes (up to a maximum
of 9999), allowing all strokes to be accounted for.

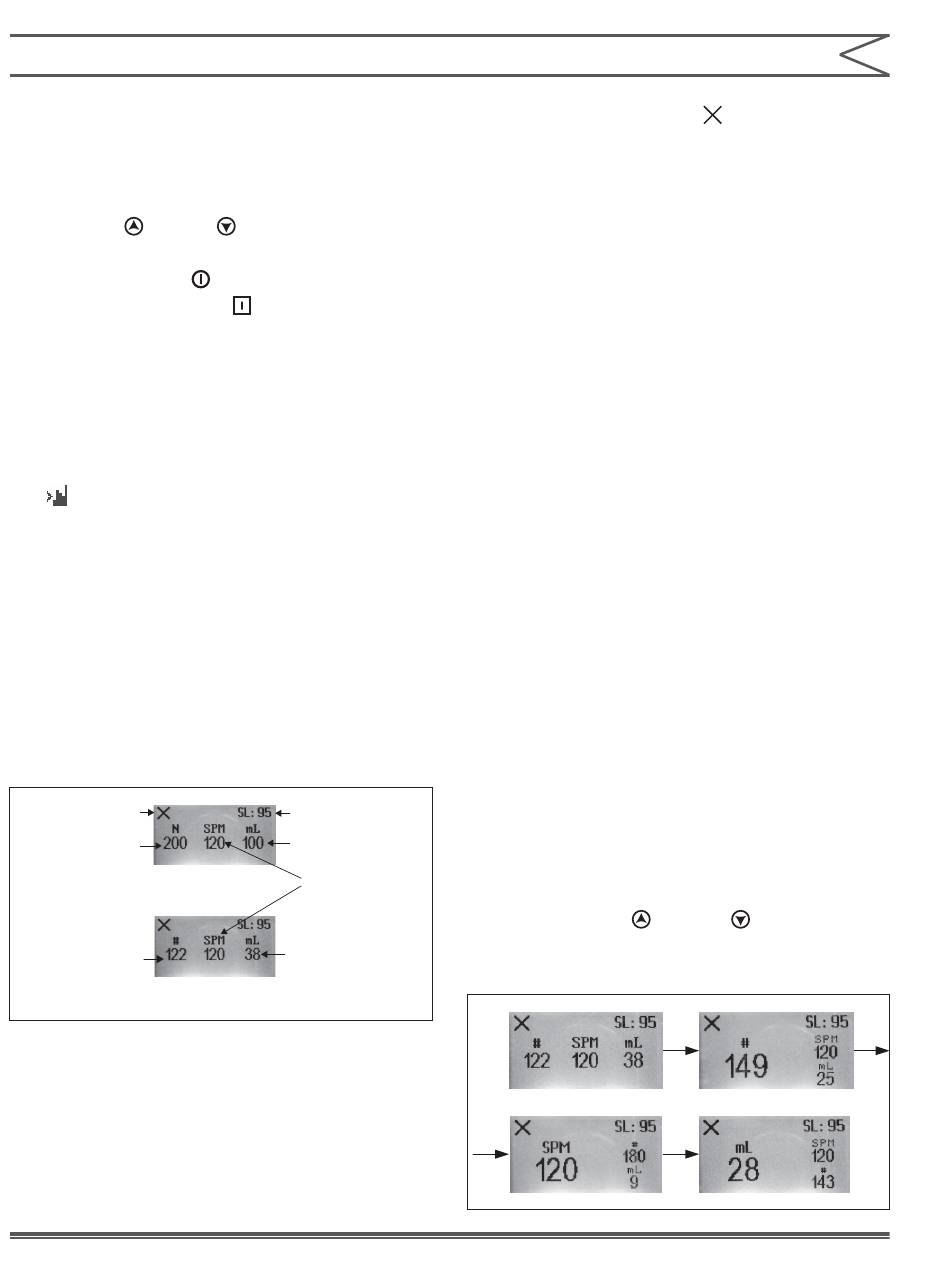

Display Overview:
Icon/Alarm Area
Strokes per Pulse
Pulse Multiply Mode
(Pump OFF)
Strokes Remaining
Pulse Multiply Mode
(Processing Pulse)
10
DOWN buttons to vary
POWER button, or toggle
Pump ON/OFF LED
Stroke Length
Calculated Volume
per Pulse
Stroke Rate
Calculated Volume
Injected
Instruction Manual
1. Icon/Alarm Area: The
pump is in the pulse multiply mode. Depending
on advanced pump configuration options and
any alarms/alerts detected, other icons may be
present as well (see Sec. 4.5).
2. Stroke Length: The numeric stroke length
value indicates the current stroke length setting
(in percent).
3. Stroke Rate: Indicates the stroke speed of the
pump (1-59 SPH or 1-120 SPM). To allow true
flow proportioning, this is set in manual mode
(see Sec. 5.1).
4. Strokes per Pulse (Pump OFF only): Number
of strokes (1-9999) to occur for each valid pulse
input. See Sec. 6.3 to define a valid pulse.
5. Strokes Remaining (Pump ON only): Number
of strokes remaining for the current batch
cycle.
6. Calculated Volume per Pulse (Pump OFF
only): The calculated flow based on stroke
count, stroke length, and calibration settings
(see Sec. 6.6 for calibration information).
7. Calculated Volume Injected (Pump ON only):
The calculated flow based on strokes made,
stroke length, and calibration settings (see Sec.
6.6 for calibration information).
NOTE:
The pump will ignore the pulse input while the
pump is OFF.
Depressing the
simultaneously will cycle through alternate
display formats , as shown below:
icon indicates the
UP and DOWN buttons
