SECTION 5 - CONTROL MODE SELECTION MENU

5.5 TIMED EVENT MODE (INTERNAL)

With the pump OFF, press the
button to view and/or program the timed events
(see Section. 5.5.1). To turn the pump ON or OFF,
push the POWER button or toggle the remote
ON/OFF. The Pump ON/OFF LED will illuminate
green when the pump is ON.

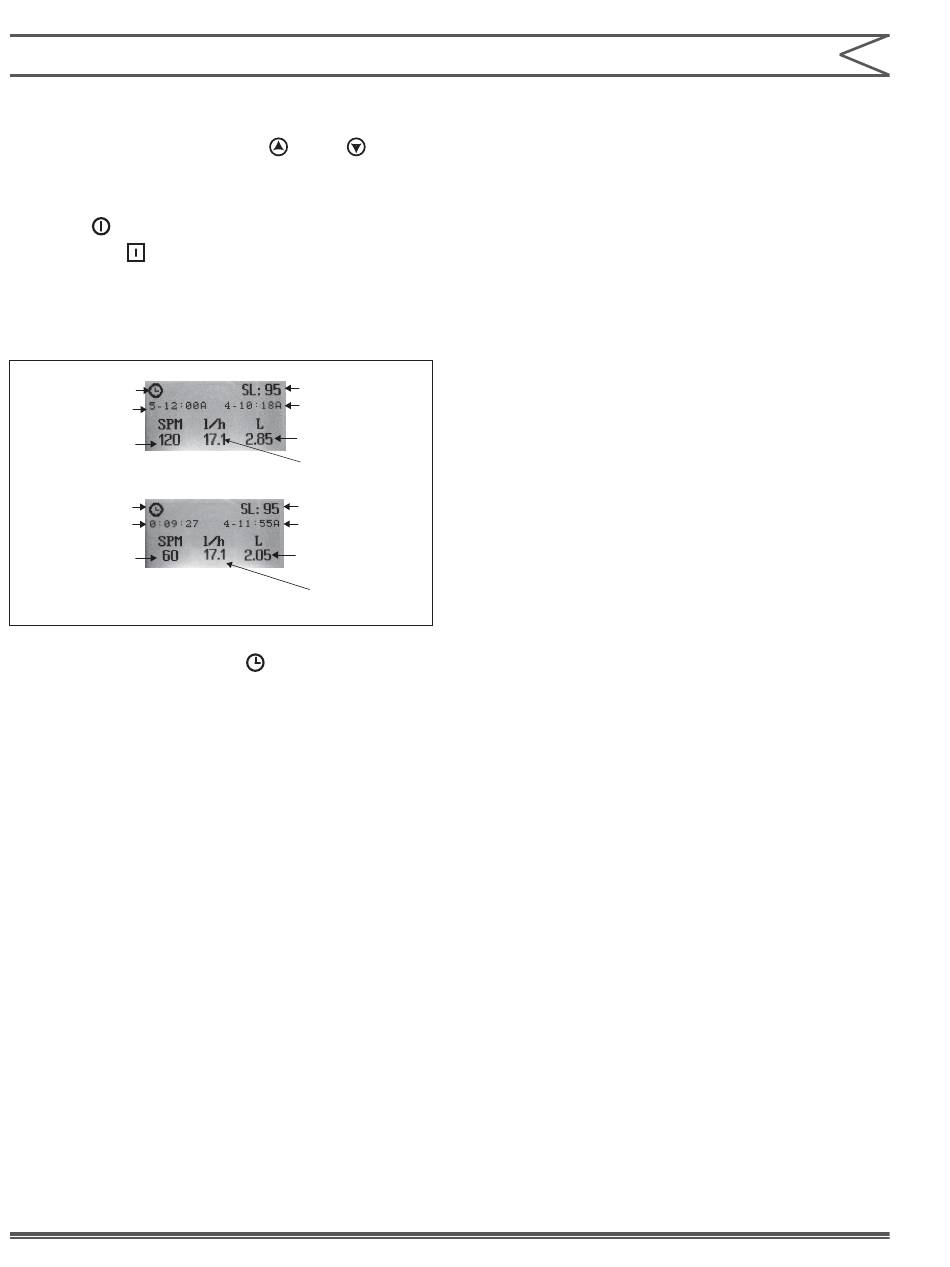

Display Overview:
Icon/Alarm Area
Next Event Start
Time
Stroke Rate
Timed Event Mode
(Standard Display)
Icon/Alarm Area
Time Remaining
Stroke Rate
Timed Event Mode
(Event in Progress)
1. Icon/Alarm Area: The
pump is in the Timed Event mode. Depending
on advanced pump configuration options and
any alarms/alerts detected, other icons may be
present as well (see Sec. 4.5).
2. Stroke Length: The numeric stroke length
value indicates the current stroke length setting
(in percent).
3. Next Event Start Day and Time: The Day and
Time of the next timed event. See below for the
displayed format. The '*' character in this field
indicates that no events are enabled (see Sec.
5.5.1 for event programming information).
14
UP or DOWN
Stroke Length
Current Time
Calculated Volume
Theoretical Flow
Stroke Length
Current Day and
Time
Calculated Volume
Injected
Theoretical Flow
icon indicates the
Instruction Manual
4. Current Day and Time: The current Day and
Time (see below for time format description).
5. Stroke Rate: Indicates the stroke speed of the
pump (1-59SPH or 1-120 SPM) for the currently
running event or the next scheduled event.
6. Theoretical Flow: The theoretical flow
based on stroke speed, stroke length, and
calibration settings (see Sec. 6.6 for calibration
information).
7. Calculated Volume: The calculated volume
based on event duration, stroke rate, stroke
length, and calibration settings (see Sec. 6.6
for calibration information).
8. Time Remaining (Event in Progress Only):
Remaining time of event.
9. Calculated Volume Injected (Event in
Progress Only): The calculated volume
based on strokes made, stroke length, and
calibration settings (see Sec. 6.6 for calibration
information).
NOTE:
The displayed format for time is: D – H:MMx,
where D = Day of Week (1-7), H = Hour (1-12),
MM = Minute (0-59), x = A for AM or P for PM.
