SECTION 4 - OPERATION OF THE SERIES AD9

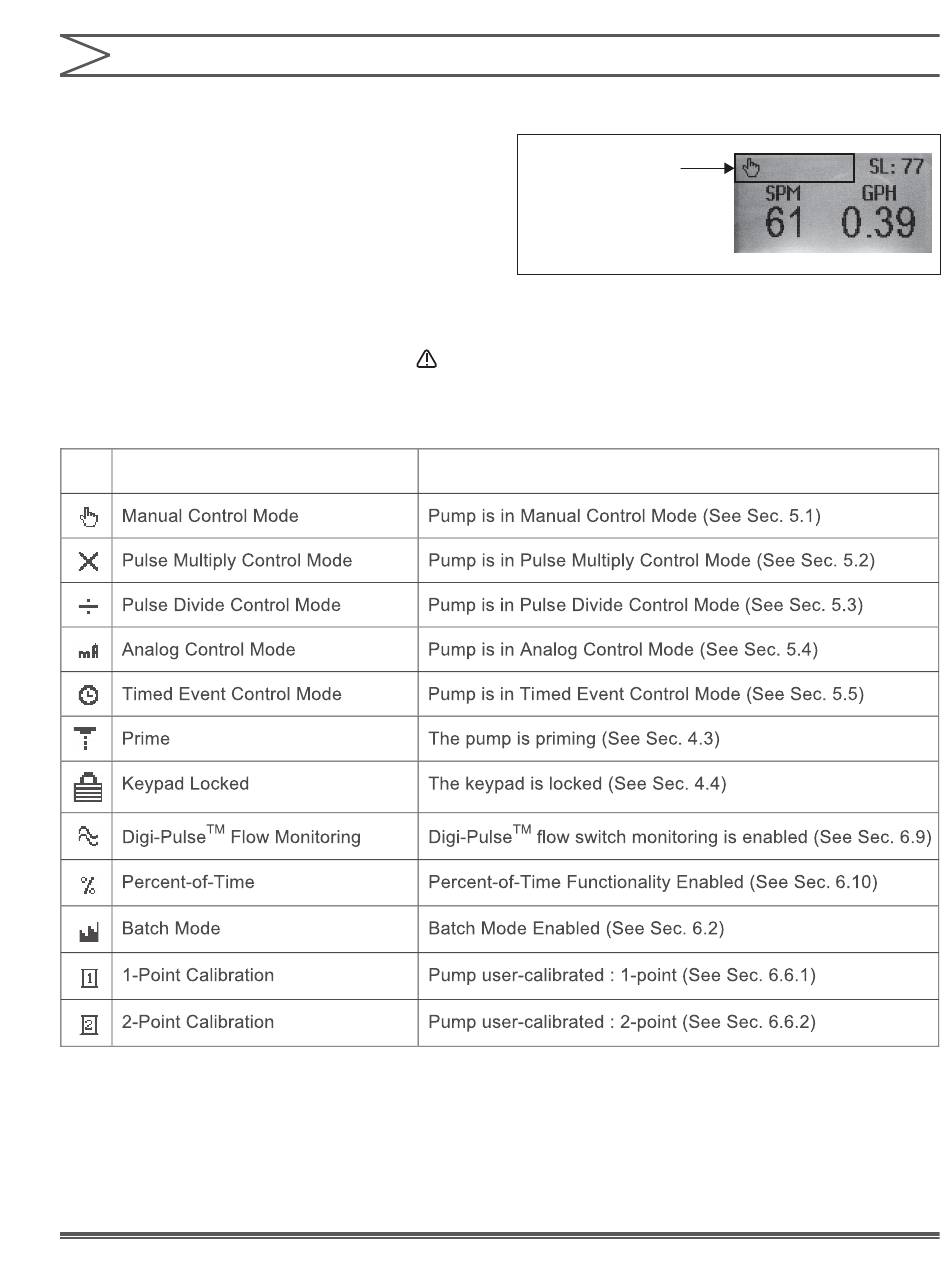

4.5 ALARM/ICON AREA

The upper left portion of every Control Mode

Icon/Alarm Area

Display contains an icon/alarm notification area,

which graphically displays operational information.

If no alarm conditions exist, the display will only

show configuration information. If one or multiple

alarm conditions exist, the display will alternate

every few seconds between showing configuration

information and showing alarm information. Alarm

information will always be preceded by the

icon.

Configuration Icon Definitions:

NAME

ICON

DESCRIPTION

Table1. Configuration Icon Definitions
