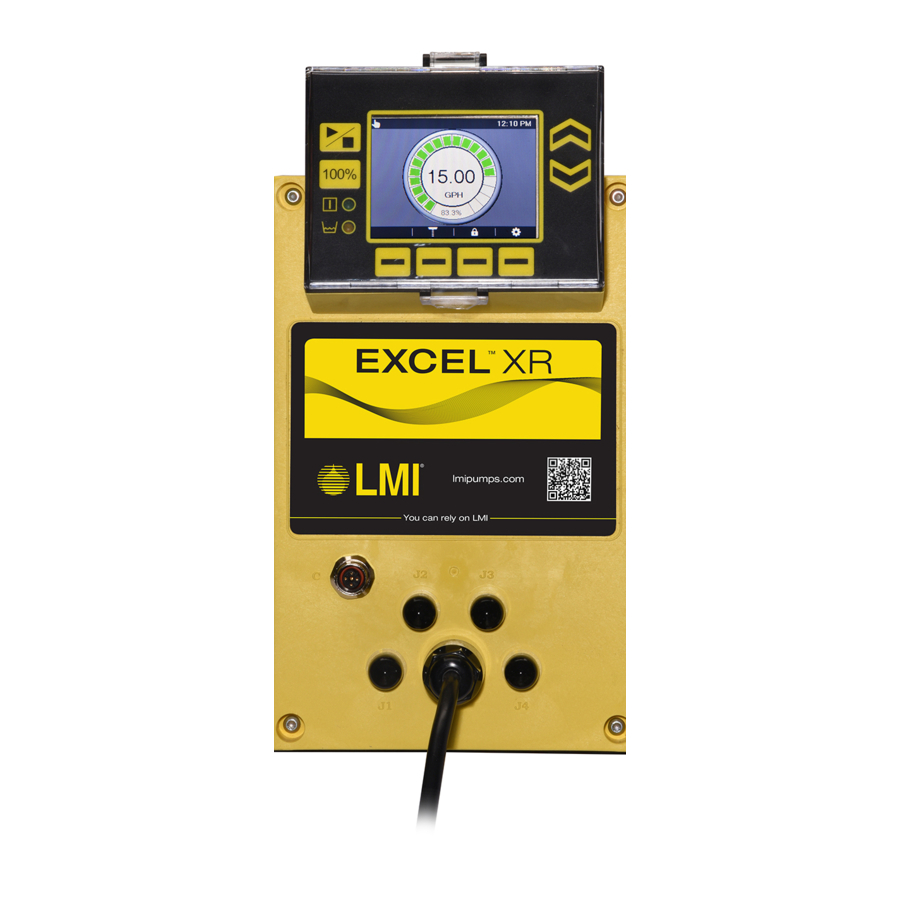

Excel
XR Series
®
Electronic Metering Pump
PROFIBUS DP-V0 Manual
Manual No.: 55313
Revision
:
04
Rev. Date: 03/2020
Note: For enhanced control features see manual 54630 and
enhanced control features see manual 54772

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Excel XR Series and is the answer not in the manual?

Questions and answers

Related Manuals for LMI Excel XR Series

Summary of Contents for LMI Excel XR Series

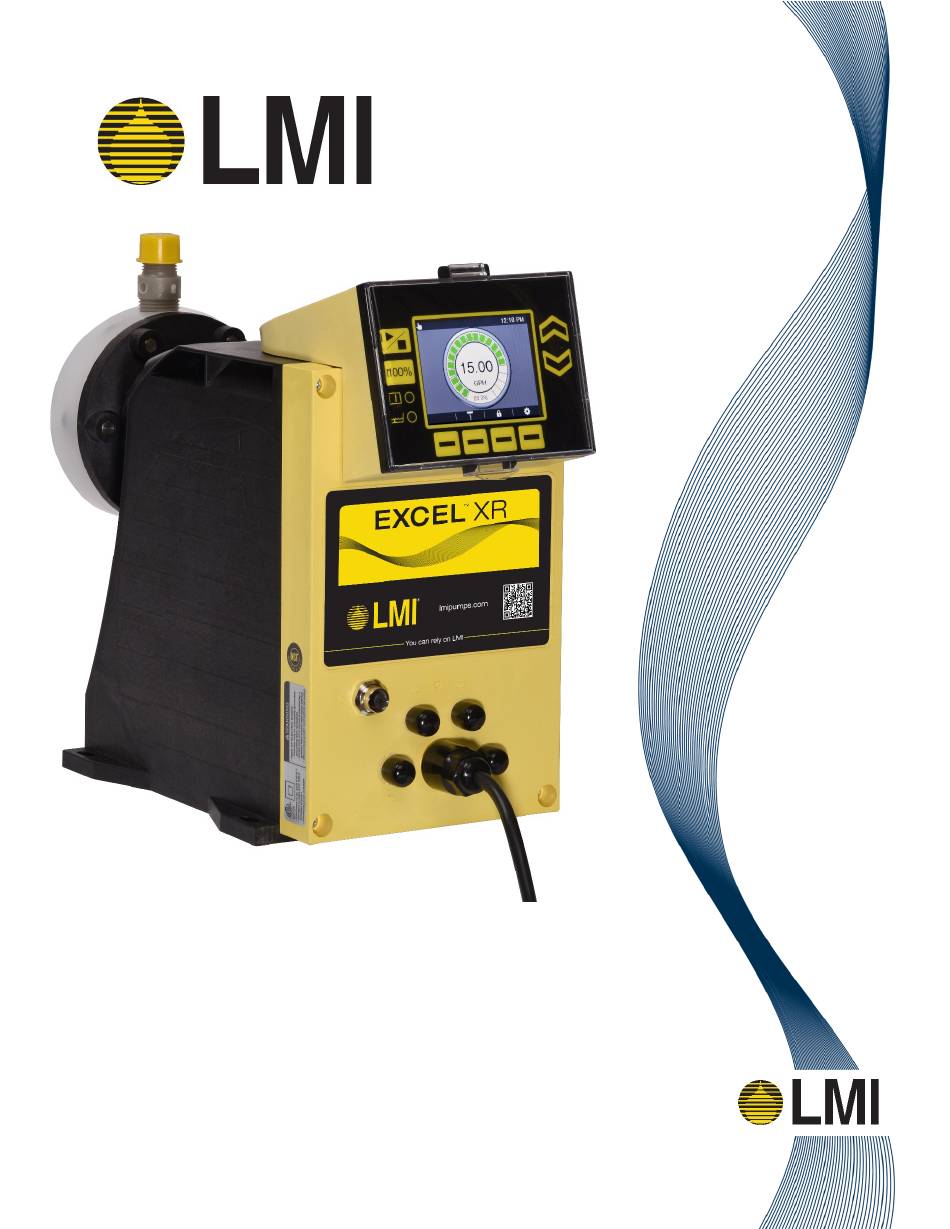

  • Page 1 Excel XR Series ® Electronic Metering Pump PROFIBUS DP-V0 Manual Manual No.: 55313 Revision Rev. Date: 03/2020 Note: For enhanced control features see manual 54630 and enhanced control features see manual 54772...

  • Page 2: Table Of Contents

    Table of Contents 1.0 Precautions ..................3 2.0 Introduction ..................5 2.1 Specifications ....................5 3.0 Local Operation ................5 3.1 Display Navigation ..................6 3.2 Settings ......................6 3.2.1 PROFIBUS Communication Settings ............7 4.0 PROFIBUS Software Definition............8 4.1 PROFIBUS Configuration................

  • Page 3: Precautions

    Refer to Safety Data Sheets (SDS) precautions from your solution supplier. Water Pre-Prime All LMI pumps are pre-primed with water when shipped from the factory. If your solution is not compatible with water, disassemble the Pump Head Assembly. Thoroughly dry the pump head, valves, O-rings, balls and diaphragm.
  • Page 4 PRECAUTIONS Back Pressure/Anti-Syphon Valve If you are pumping downhill or into low or no system pressure, a backpressure /anti-syphon device should be installed to prevent over pumping or syphoning. Contact your LMI distributor for further information. Electrical Connections WARNING: To reduce the risk of electrical shock, the metering pump must be plugged into a properly grounded grounding-type receptacle with ratings conforming to the data on the pump control panel.

  • Page 5: Introduction

    CAUTION: Spills of Dangerous chemicals should be cleaned up immediately. 2.0 Introduction LMI's metering pumps deliver the highest level of repetitive accuracy and reliability with the capability to pump a wide range of chemicals. Our comprehensive selection of pumps means you get the right pump for the right application. Every one of our pumps is engineered to exceed expectations and is backed by a global network of highly trained field engineers and aftersales support.

  • Page 6: Display Navigation

    LOCAL OPERATION 3.1 Display Navigation Navigation through display screens is done using the Up, Down, and Multi-Function buttons. The settings screen is shown in the example below (Figure 1: Display Navigation). The scroll bar on the side of the display screen indicates there are more settings available on another page.

  • Page 7: Profibus Communication Settings

    LOCAL OPERATION 3.2.1 PROFIBUS Communication Settings From the Settings screen, navigate to the Communication Settings icon and press Enter . The Communication Settings screen (Figure 4) will allow for the following settings to be adjusted: The Slave Address can be configured via software in the range of 1-125. •...

  • Page 8: Profibus Software Definition

    PROFIBUS SOFTWARE DEFINITION 4.0 PROFIBUS Software Definition 4.1 PROFIBUS Configuration Each function available via the PROFIBUS is defined in a Module. Each Module must be loaded sequentially. If any Modules are skipped or loaded in the wrong order, the configuration will fail. 4.1.1 Modules 0-8: Basic Control Data Module...

  • Page 9: Modules 9-24: Operation Mode Configuration

    PROFIBUS SOFTWARE DEFINITION Returned as a bitmask with a high bit to indicate the status of each item: Bit 0 - Global Alarm Bit 1 - User Alarm Bit 2 - Tank Empty Bit 3 - Tank Low Bit 4 - Internal System Error Bit 5 - Motor Stall Bit 6 - Analog Loss of Signal Bit 7 - Analog Overrange...

  • Page 10: Modules 26-42: Timed Event Configuration

    PROFIBUS SOFTWARE DEFINITION Minutes. Range is 1-1439. The Delay Timer is Cycle Timer the first inactive period prior to starting the Delay Timer cycle. Input/Output UINT16 Cycle Timer Flow XX.XX in the current units (i.e. GPH/LPH). The Rate range is 0-9999. Input/Output UINT16 4.1.3 Modules 26-42: Timed Event Configuration...

  • Page 11: Modules 43-57: Input/Output Configuration

    PROFIBUS SOFTWARE DEFINITION 4.1.4 Modules 43-57: Input/Output Configuration Data Module Name Description Direction Type Enumeration with a range 0-5. The enumeration is as follows: 0: Digital Input = Disabled 1: Digital Input = RemoteOnOff 2: Digital Input = FloatSwitch_Empty 3: Digital Input = FloatSwitch_Low Digital Input 1 4: Digital Input = RemoteIntExtMode Config...

  • Page 12: Modules 58-64: System Settings

    PROFIBUS SOFTWARE DEFINITION Enumeration with a range 0-8. The enumeration is as follows: 0: Digital Output = Disabled 1: Digital Output = StrokePulse 2: Digital Output = PumpRunning 3: Digital Output = PumpStandby 4: Digital Output = AlarmOut 5: Digital Output = INTEXTMode 6: Digital Output = UserAlarmOut Digital Output 1 7: Digital Output = PumpStopped...

  • Page 13: Modules 65-68: Read-Only Version Information

    PROFIBUS SOFTWARE DEFINITION (XXYYMMDDXXhhmmss): XX = Unused (N/A) YY = Year (00-99) MM = Month (1-12) DD = Day (1-31) XX = Unused (N/A) hh = Hour (01-24) mm = Minute (00-59) Clock ss = Seconds (00-59) Input/Output UINT64 Bitmask. Set desired bits high to trigger user alarm when associated alarm is active.
  • Page 14 PROFIBUS SOFTWARE DEFINITION Enumeration for the pump output code. The output code is associated with the maximum flow rate of the pump: 2: Output Code 2 - 5.6 GPH (21.2 l/h) 175 psi (12.0 bar) 3: Output Code 3 - 14.0 GPH (53.0 l/h) 75 psi (5.0 bar) 4: Output Code 4 - 18.0 GPH (68.1 l/h) 50 psi (3.5 Model ID...
  • Page 15 PROFIBUS SOFTWARE DEFINITION Cycle Time Mode Startup Delay Left Integer representing number of seconds. Output UINT32 Cycle Time Mode Run Time Left Integer representing number of seconds. Output UINT32 Cycle Time Mode Cycle Time Left Integer representing number of seconds. Output UINT32 Weekly...

  • Page 16: Cable Wiring

    CABLE WIRING StayPrime Input / Status Enable / Disable StayPrime Output UINT8 StayPrime Stayprime Idle time Input / Idle Minutes Output UINT16 StayPrime StayPrime Run time Input / Seconds Output UINT8 StayPrime Idle Seconds Seconds remaining before run begins Remaining Output UINT32 StayPrime...
  • Page 17 CABLE WIRING...

  • Page 18: Troubleshooting

    TROUBLESHOOTING 6.0 Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Configuration Fault 1. Not all modules included 1. Include all PROFIBUS Data Modules 2. Modules in wrong order 2. Include all PROFIBUS Data Modules in sequential order Slave not found 1. Incorrect Slave Address 1.
  • Page 19 For more information, visit www.IRCO.com. LMI is a registered trademark of Milton Roy, LLC. EXCEL is a registered trademark of Milton Roy, LLC Fluorofilm is a trademark of Milton Roy, LLC info@lmipumps.com...
