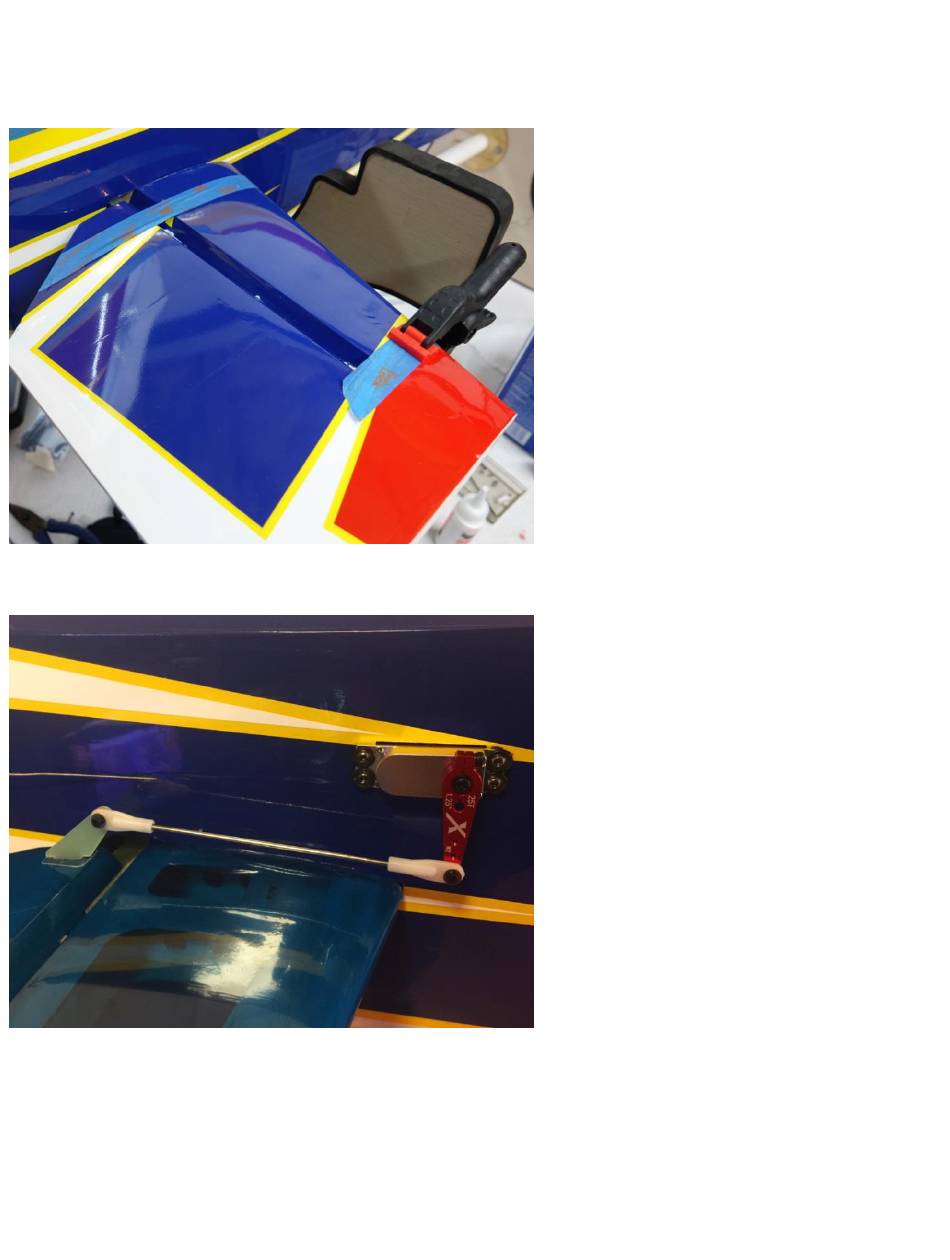

16. Coat the portion of the elevator joiner that will insert into the slot in the right elevator half with 30
minute epoxy. Coat the slot in the elevator with epoxy as well. Apply glue to the hinges and hinge slots
and push the assembly together. Clean up the excess glue and then secure with masking tape until dry.
Use a small clamp to ensure that the counterbalances stay aligned with the elevator during the drying
process.
17. Attach a 24" servo extension to the elevator servo and secure with an EF servo safety clip or heat
shrink tubing. Install the elevator servo and assemble the linkage using an Extreme Flight 1.25"
lightweight aluminum servo arm and the provided 2mm hardware as shown.
