Extreme Flight TURBO RAVEN EXP Assembly Manual page 11

69 inch electric arf

Advertisement

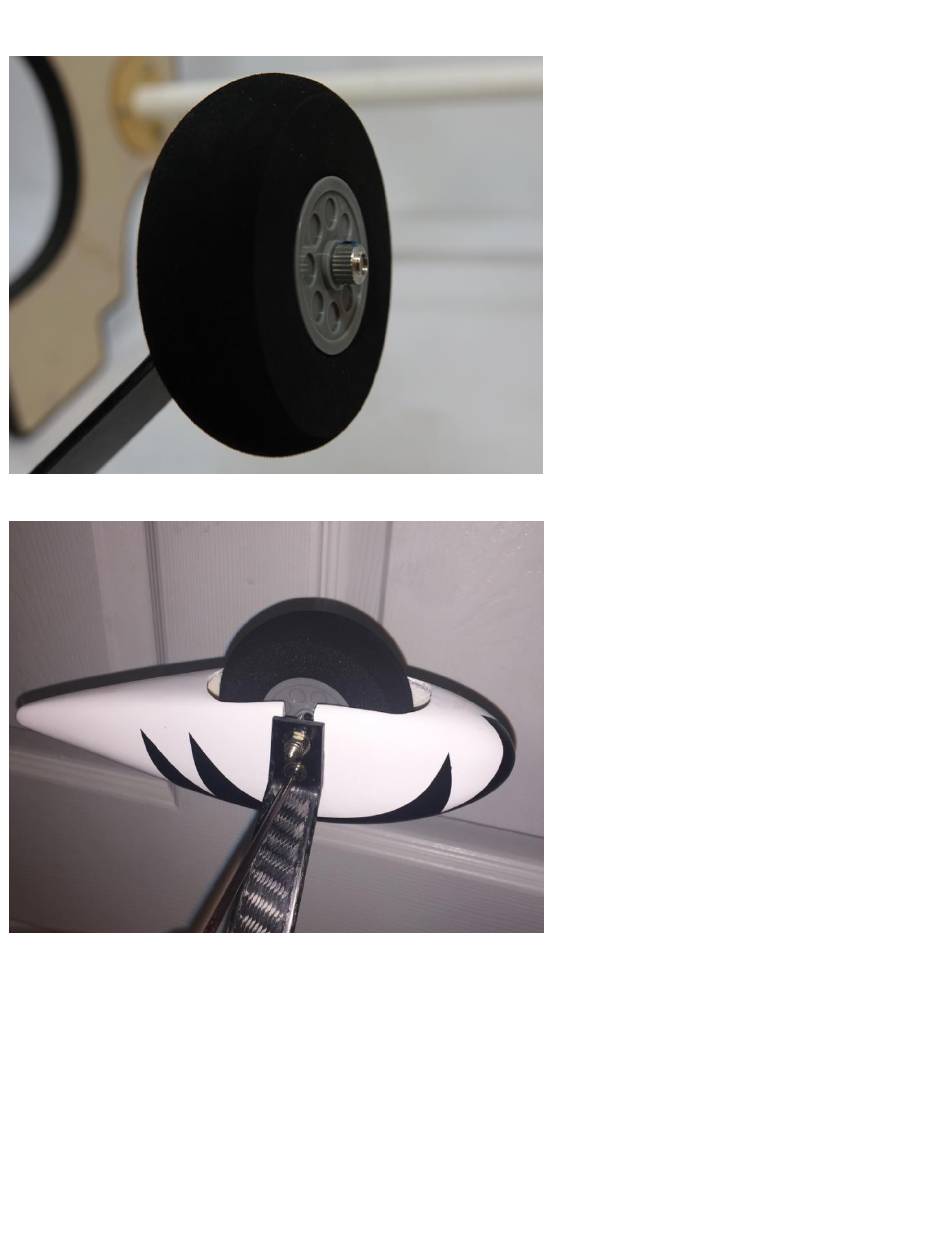

8. Slide the wheel onto the axle and secure with a wheel collar. Be sure to apply Blue Loctite to the set
screw in the wheel collar.
9. Slide the wheel pants into position and secure with a 3mm bolt. You may need to open the slot in the
wheel pant for proper fit over the axle. Again use Blue Loctite on the bolt.
11
