Components
12
Item Description
1 Body inc. Outlet Diffuser
2 Thermostatic Cartridge
3 Lever
4 Lever Retaining Screw
5 Concealing Plate
6 Cold Water Inlet Tail Assembly
7 Hot Water Inlet Tail Assembly
8 Sealing Washer
9 Swivel Nut
© Intatec Ltd 2016

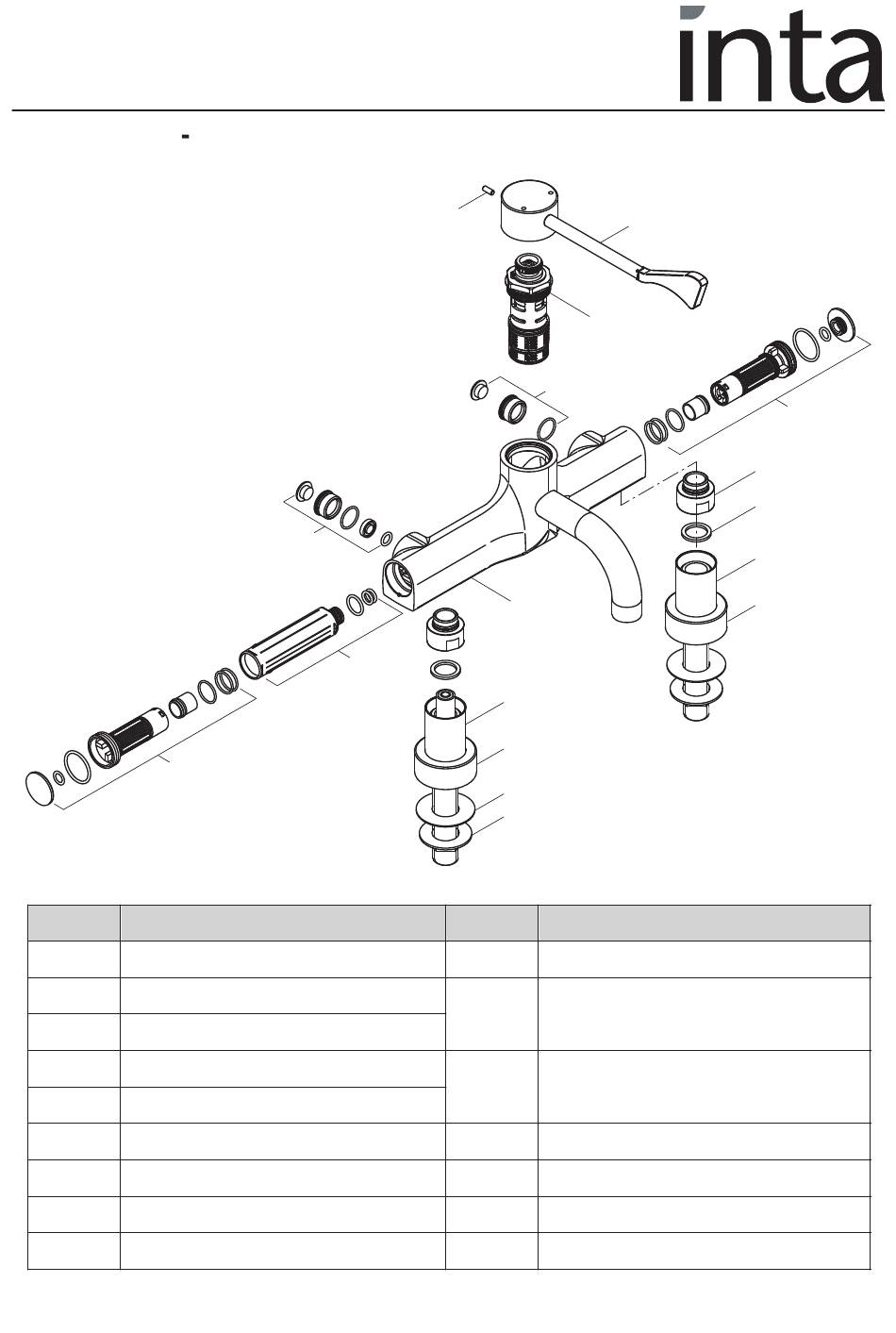

Deck Mounted with Fixed Spout
13
10
4
2
14
1
7
5
16
15
Item Description
10 Hot Water Insulator
Cold Water Inlet Assembly
11
including 5 l/m flow regulator
Hot Water Inlet Assembly
12
including 5 l/m flow regulator
13 Hot Water Port Blanking Assembly
14 Cold Water Port Blanking Assembly
15 Backnut
16 Washer - Chrome
5
3
11
9
8
6
5
