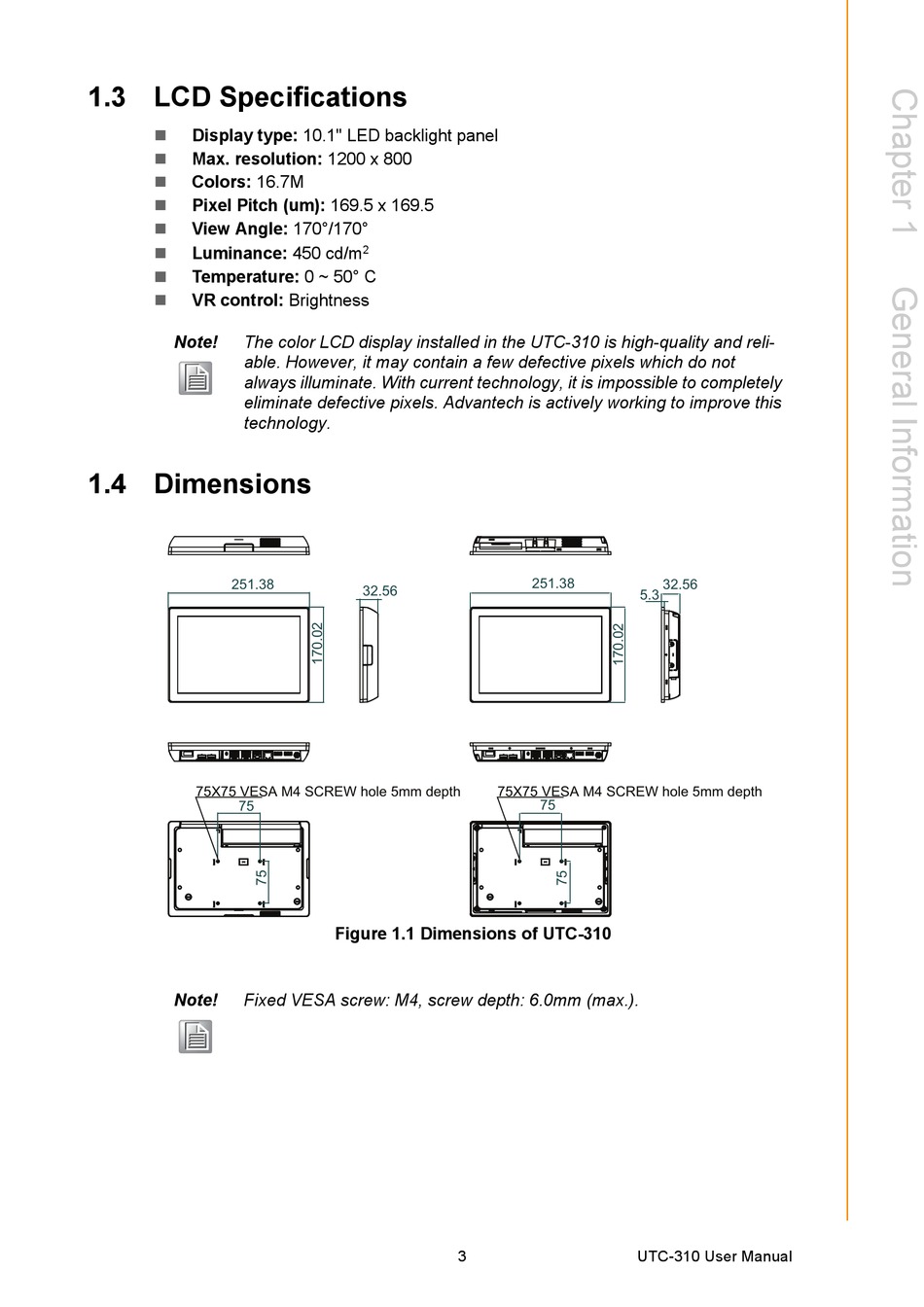

1.3 LCD Specifications

 Display type: 10.1" LED backlight panel
 Max. resolution: 1200 x 800
 Colors: 16.7M
 Pixel Pitch (um): 169.5 x 169.5
 View Angle: 170°/170°
Luminance: 450 cd/m

Temperature: 0 ~ 50° C

 VR control: Brightness
Note! The color LCD display installed in the UTC-310 is high-quality and reli-
able. However, it may contain a few defective pixels which do not
always illuminate. With current technology, it is impossible to completely
eliminate defective pixels. Advantech is actively working to improve this
technology.

1.4 Dimensions

251.38
75X75 VESA M4 SCREW hole 5mm depth
75
Note! Fixed VESA screw: M4, screw depth: 6.0mm (max.).
2
32.56
75X75 VESA M4 SCREW hole 5mm depth
Figure 1.1 Dimensions of UTC-310
3
251.38
32.56
5.3
75
